Brainlab BUZZ Technisches Planungshandbuch Seite 43

PLANUNG

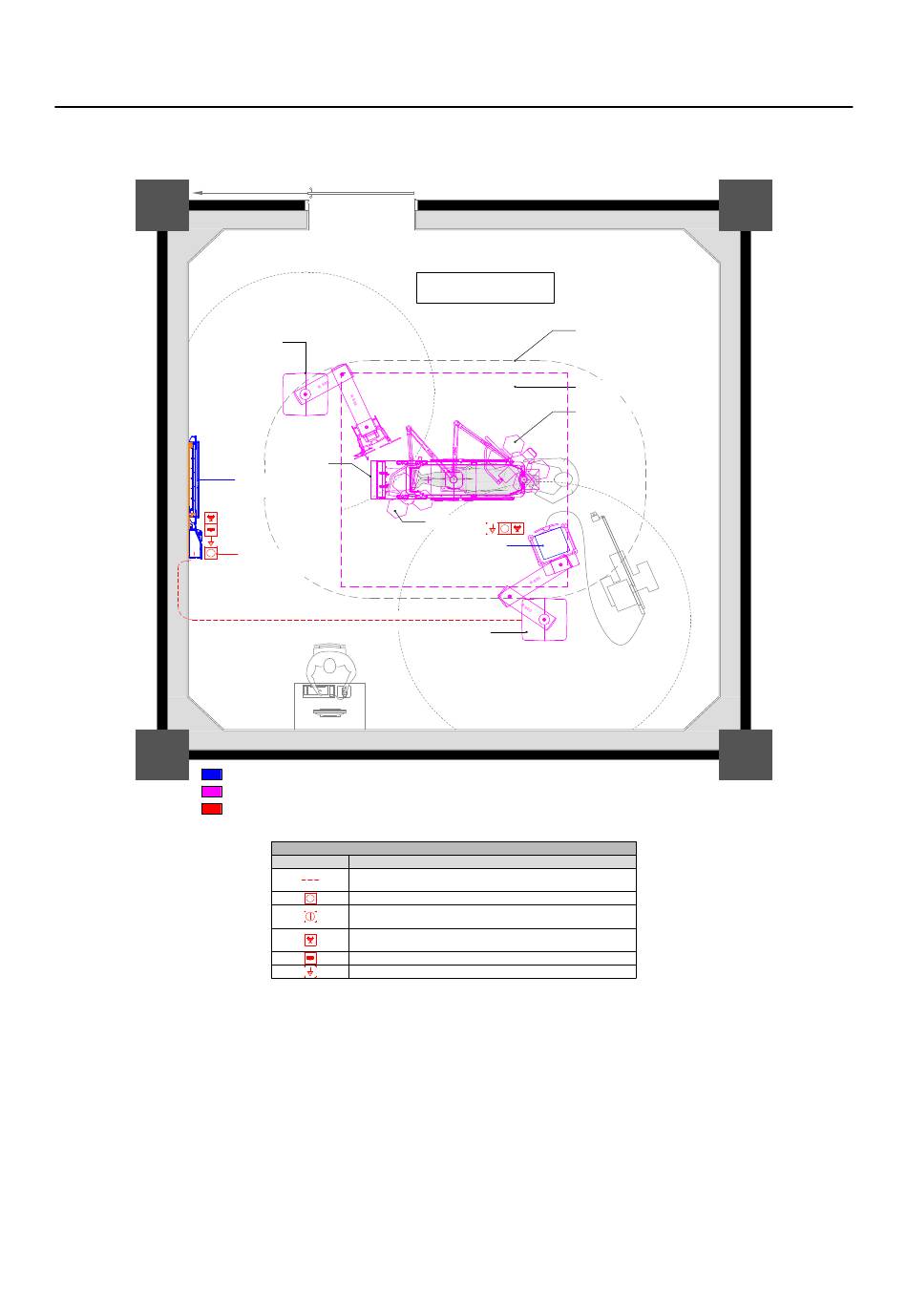

Buzz on-wall - Grundriss
Beispiel-Grundriss für Buzz on-wall:
CSU ANESTHESIA
VEU OPTION: PROVIDE 1x CONDUIT FROM CSU TO BUZZ WORKSTATION
NURSE STATION
(i.e. Imaging target)
BRAINLAB COMPONENTS
3RD PARTY COMPONENTS
COSTUMER INSTALLATION
Technisches Planungshandbuch Aufl. 1.3 Buzz Version 1.0
OR TABLE
BUZZ 42" TOUCH
DISPLAY ON-WALL
VIDEO EXTENSION UNIT
1x BLANKPLATE
Mandatory when connection
with VEU
MAX. TOTAL CABLE LENGTH: 50m
ELECTRICAL ONSITE PREPARATION
SYMBOL DESCRIPTION
CONDUITS WITH PULL WIRE
BLANKPLATE FOR CABLE FEED THROUGH
POWER SWITCH, INSTALLATION ACCORDING TO NATIONAL
GUIDELINES
STANDARD POWER OUTLET - ACCORDING TO LOCAL NORMS,
RECOMMENDED GENERATOR AND UPS BACKED UP
RJ45 NETWORK SOCKET (HOSPITAL NETWORK)
POTENTIAL EQUALIZATION (OPTIONAL)
OPERATING ROOM
PATIENT ENVIRONMENT
LAMINAR AIRFLOW FIELD
OR LIGHT
OR LIGHT
FOR BUZZ (optional)
CSU SURGERY
Abbildung 19
43
