Brainlab BUZZ Technisches Planungshandbuch Seite 44

Standard-Layouts und Kabelkonzepte

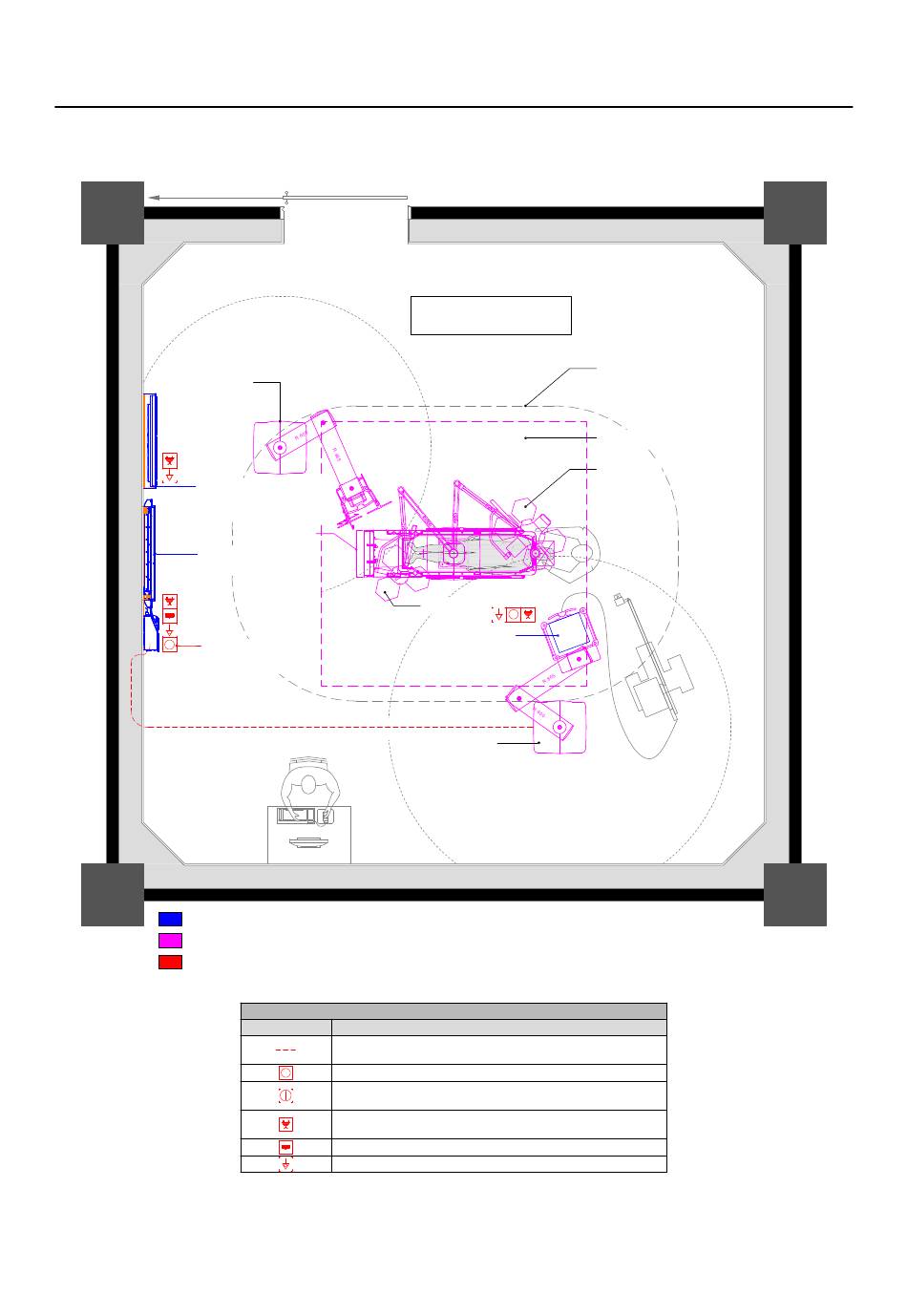

Buzz on-wall Dual Display - Grundriss
Beispiel-Grundriss für Buzz on-wall Dual Display:
CSU ANESTHESIA
BUZZ 42" SECONDARY
TOUCH DISPLAY
ON-WALL
BUZZ 42" TOUCH
DISPLAY ON-WALL
1x BLANKPLATE
Mandatory when connection
with VEU
VEU OPTION: PROVIDE 1x CONDUIT FROM CSU TO BUZZ WORKSTATION
MAX. TOTAL CABLE LENGTH: 50m
NURSE STATION
(i.e. Imaging target)
BRAINLAB COMPONENTS
3RD PARTY COMPONENTS
COSTUMER INSTALLATION
44
OR TABLE
OR LIGHT
VIDEO EXTENSION UNIT
FOR BUZZ (optional)
CSU SURGERY
ELECTRICAL ONSITE PREPARATION
SYMBOL DESCRIPTION
CONDUITS WITH PULL WIRE
BLANKPLATE FOR CABLE FEED THROUGH
POWER SWITCH, INSTALLATION ACCORDING TO NATIONAL
GUIDELINES
STANDARD POWER OUTLET - ACCORDING TO LOCAL NORMS,
RECOMMENDED GENERATOR AND UPS BACKED UP
RJ45 NETWORK SOCKET (HOSPITAL NETWORK)
POTENTIAL EQUALIZATION (OPTIONAL)
OPERATING ROOM
PATIENT ENVIRONMENT
LAMINAR AIRFLOW FIELD
OR LIGHT
Abbildung 20
Technisches Planungshandbuch Aufl. 1.3 Buzz Version 1.0
