Incremental Encoder Input / -Emulation X3B - KEB COMBIVERT F5 SERVO Installationsanleitung

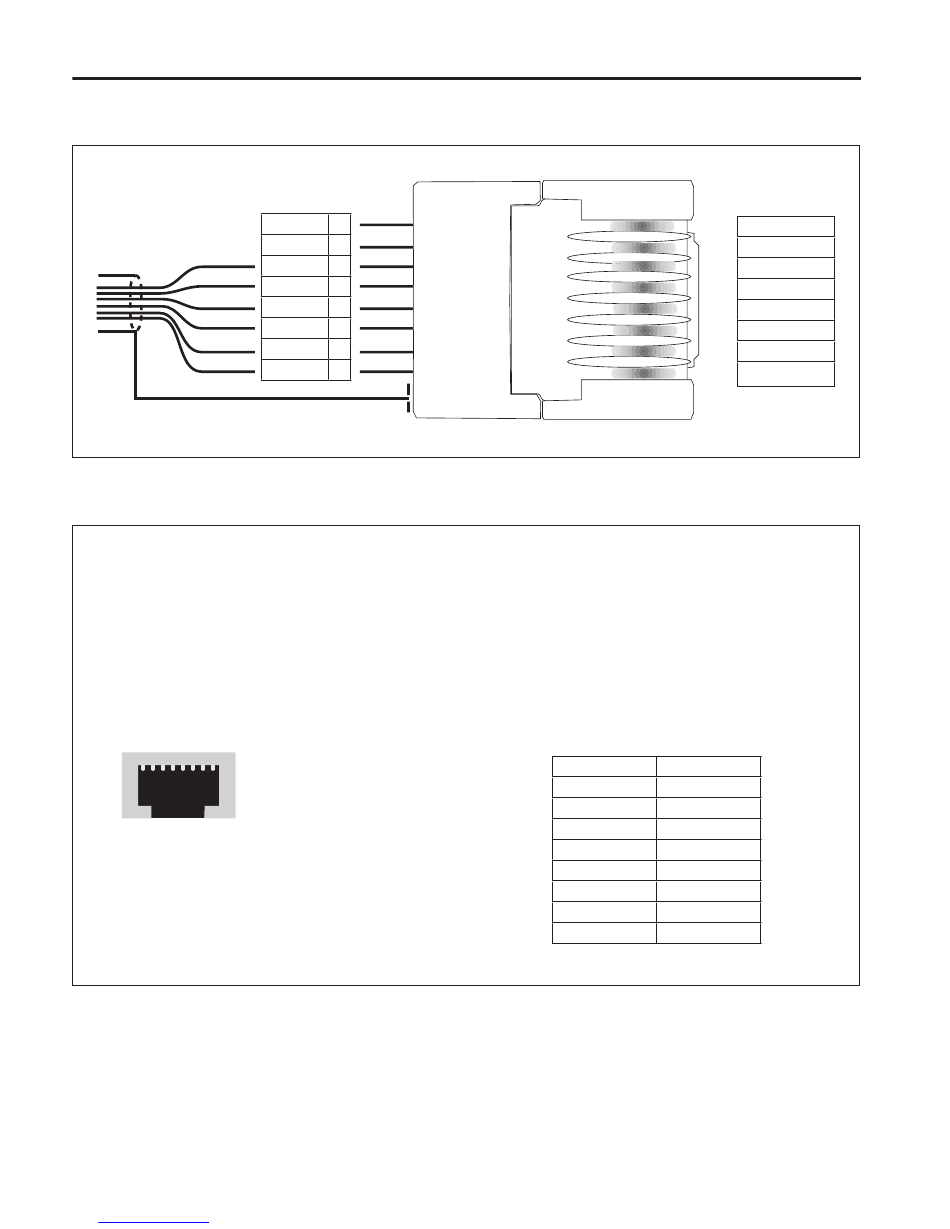

RJ45-Connector assignment

3.4.2 Incremental encoder input / -emulation X3B

The encoder interface X3 is switchable from an incremental encoder emulation to an
incremental encoder input. The increments of the emulation are fixed to 1024 for units with
resolver interface.
Max. input frequency:
Signals:
max. transmission link:
Approved encoder types:
1
The 12 V supply voltage at X3B is loadable with
altogether 100 mA. If higher voltages / currents
are needed for the supply of the incremental
encoder, then the encoder must be supplied
with an external voltage.
GB - 16
Downloaded from www.Manualslib.com
free 1
free 2
green 3
blue 4
red 5
yellow 6
gray 7
pink 8
< 300 kHz
RS 422 / 2 track signals and zero signals
50 m
Kübler RS 422 signals with 10...30 V voltage supply
8
Socket X3B
manuals search engine
1 free
2 free
3 REF+
4 SIN+
5 SIN -
REF-
6
COS+
7
8
COS-
PIN Signal
1 12 V
2 GND
3 A+
4 B+
5 B-
6 A-
7 N+
8 N-
