Product description
2.4

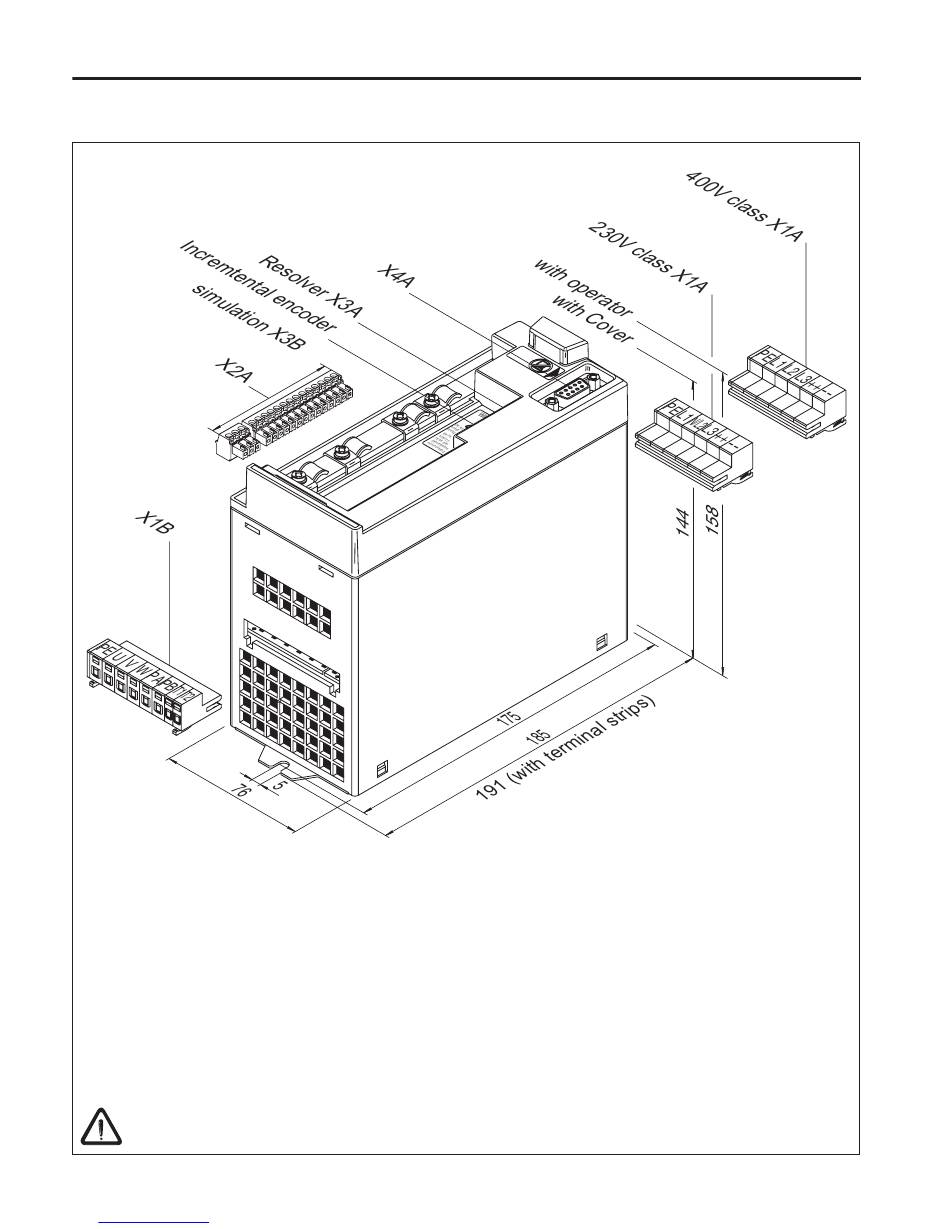

Dimensions and Terminals
U, V, W
PA, PB
T1, T2
L1, N/L2, L3
L1, L2, L3
++, --
PE
Pay attention to the input voltage, since 230V and 400V class (3-phase) are possible!
GB - 10
Downloaded from
www.Manualslib.com
Connection for servo motor
Connection for braking resistor
Connection for temperature sensor / switch
1/3-phase mains connection (230V-class)
3-phase mains connection (400V-class)
DC voltage supply in-/output for DC-supply networks
250...370 V DC (230V class)
420...720 V DC (400V class)
Connection for shielding/earthing
