Operation of the Unit
4.1
Operation Accessories
4.1.1
With HSP5 cable and without operator
A special cable (part number 00.F5.0C0-0001) is necessary for the control of the KEB
COMBIVERT without operator. It is connected between the HSP5-interface X4A and a
serial RS232-PC-interface (COM1 or COM2). The operation takes place via the PC-program
COMBIVIS.

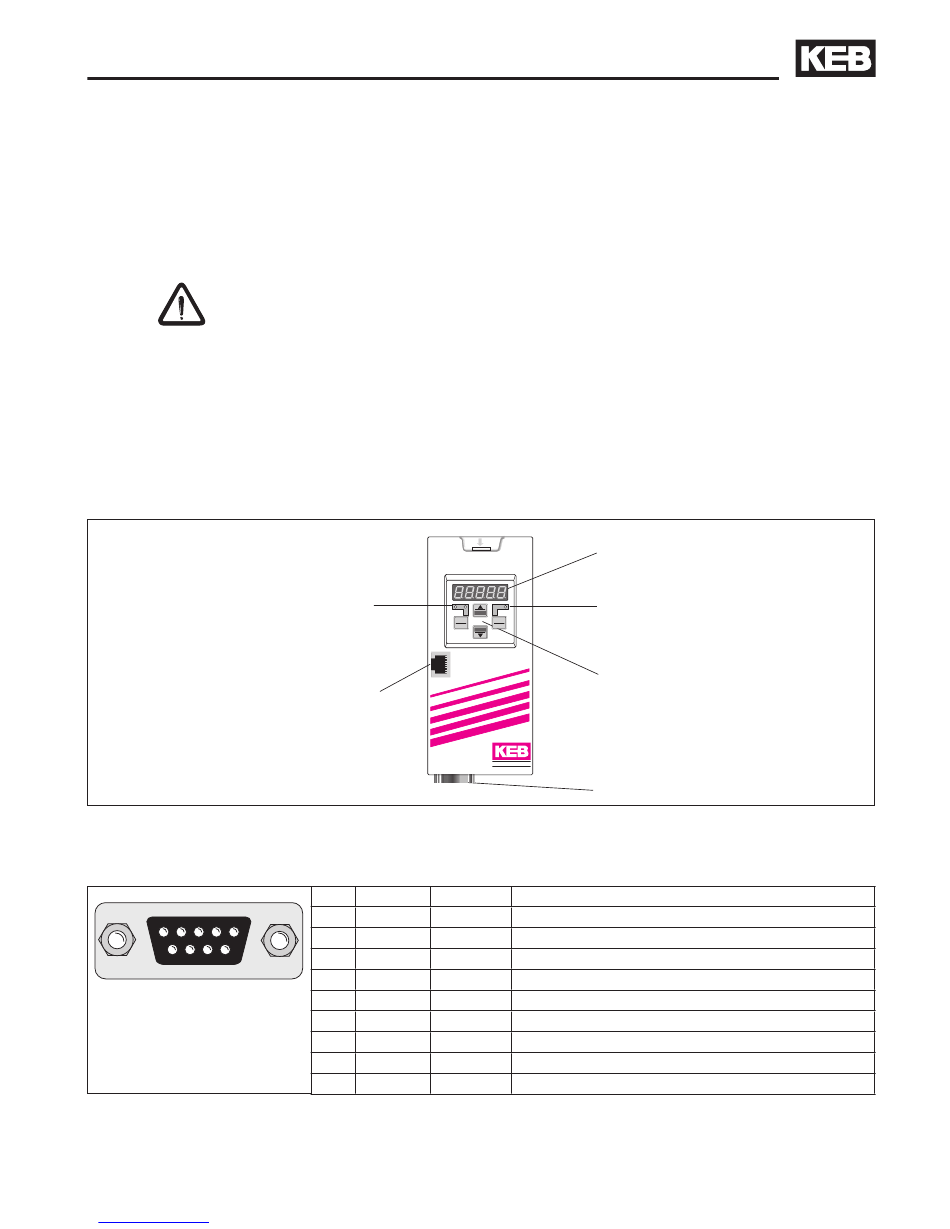

4.1.2
Digital operator (part number 00F5060-1000)
As an accessory for the local operation of the KEB COMBIVERT F5 an operator is available.
To prevent malfunctions, the inverter must be brought into nOP status before connecting /
disconnecting the operator (open control release). When starting the inverter, it is always
started with the last stored values or the factory setting.
HSP5 diagnostic interface
4.1.3
Interface operator (part number 00F5060-2000)
The interface operator corresponds to the functional range of the digital operator. However,
it is enhanced by a serial RS232/485-interface.
5
4
9
8
A RS232-cable is needed to connect the interface operator with the PC. The assignment
is represented on the following page.
Downloaded from
www.Manualslib.com
The HSP5-cable has an integrated level converter. The connection of a serial
standard cable would destroy the PC-interface.
Interface control
Transmit "LED on"
(only 00.F5.060-2000)
(only 00F5060-2000)
PIN RS485
1
3
2
1
2
3
7
6
4
5
6
7
8
9
manuals search engine
Operation of the Unit
START
ENTER
FUNC.
F/R
SPEED
STOP
X6B
C O M B I V E R T
X6C
X6D
Signal Meaning
-
-
reserved
-
TxD
transmission signal RS232
-
RxD
receive signal RS232
A'
RxD-A receive signal A RS485
B'
RxD-B receive signal B RS485
-
VP
Voltage supply +5 V (Imax=50 mA)
C/C'
DGND Data reference potential
A
TxD-A transmission signal A RS485
B
TxD-B transmission signal B RS485
5-digit LED Display
Operating-/Error display
Normal "LED on"
Error "LED blinks"
Double function keyboard
RS232/RS485
(only 00F5060-2000)
