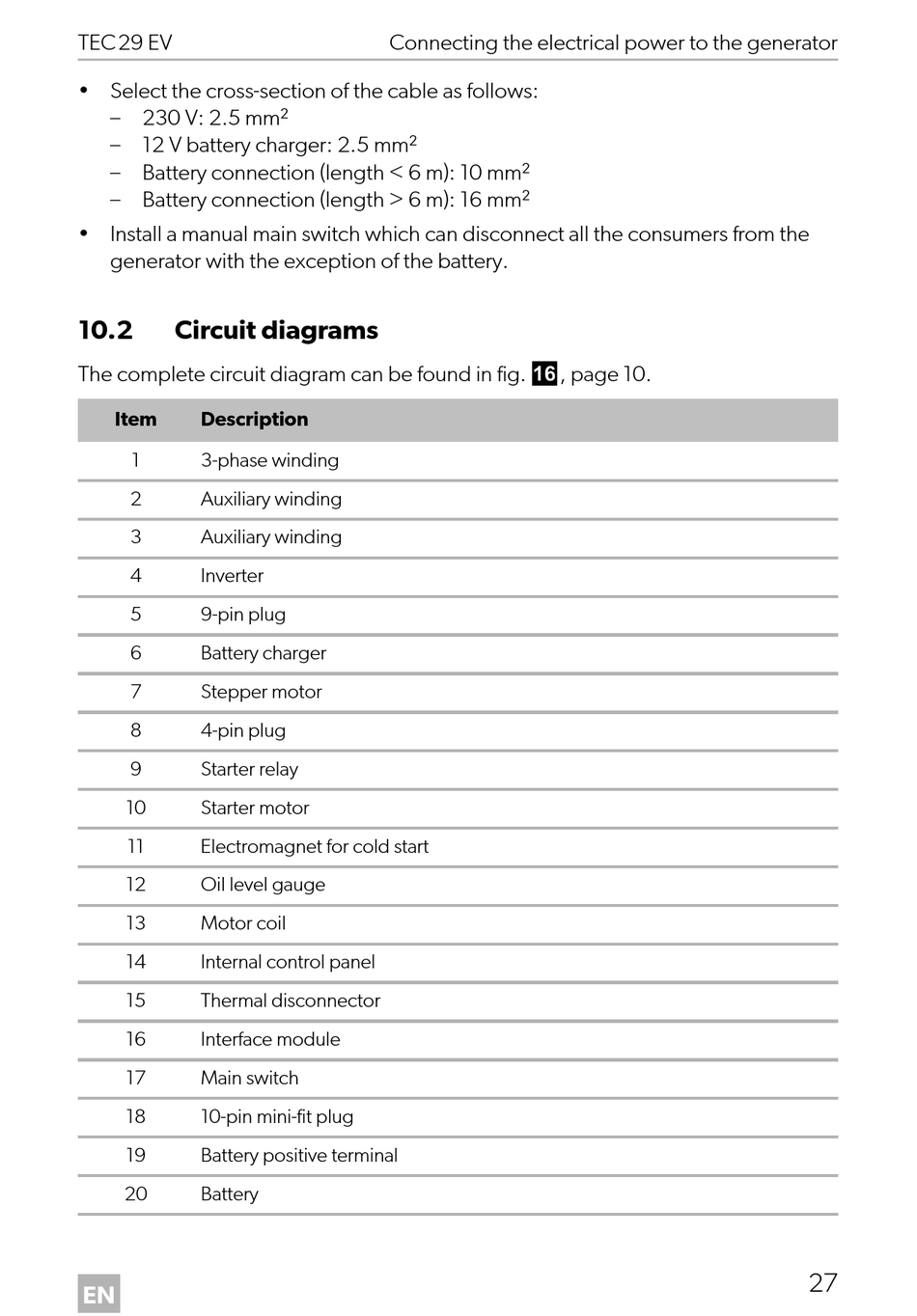

TEC29 EV
• Select the cross-section of the cable as follows:
– 230 V: 2.5 mm²
– 12 V battery charger: 2.5 mm²
– Battery connection (length < 6 m): 10 mm²
– Battery connection (length > 6 m): 16 mm²
• Install a manual main switch which can disconnect all the consumers from the
generator with the exception of the battery.
10.2

Circuit diagrams

The complete circuit diagram can be found in fig. f, page 10.
Item Description
1 3-phase winding
2 Auxiliary winding
3 Auxiliary winding
4 Inverter
5 9-pin plug
6 Battery charger
7 Stepper motor
8 4-pin plug
9 Starter relay
10 Starter motor
11 Electromagnet for cold start
12 Oil level gauge
13 Motor coil
14 Internal control panel
15 Thermal disconnector
16 Interface module
17 Main switch
18 10-pin mini-fit plug
19 Battery positive terminal
20 Battery
EN
Connecting the electrical power to the generator
