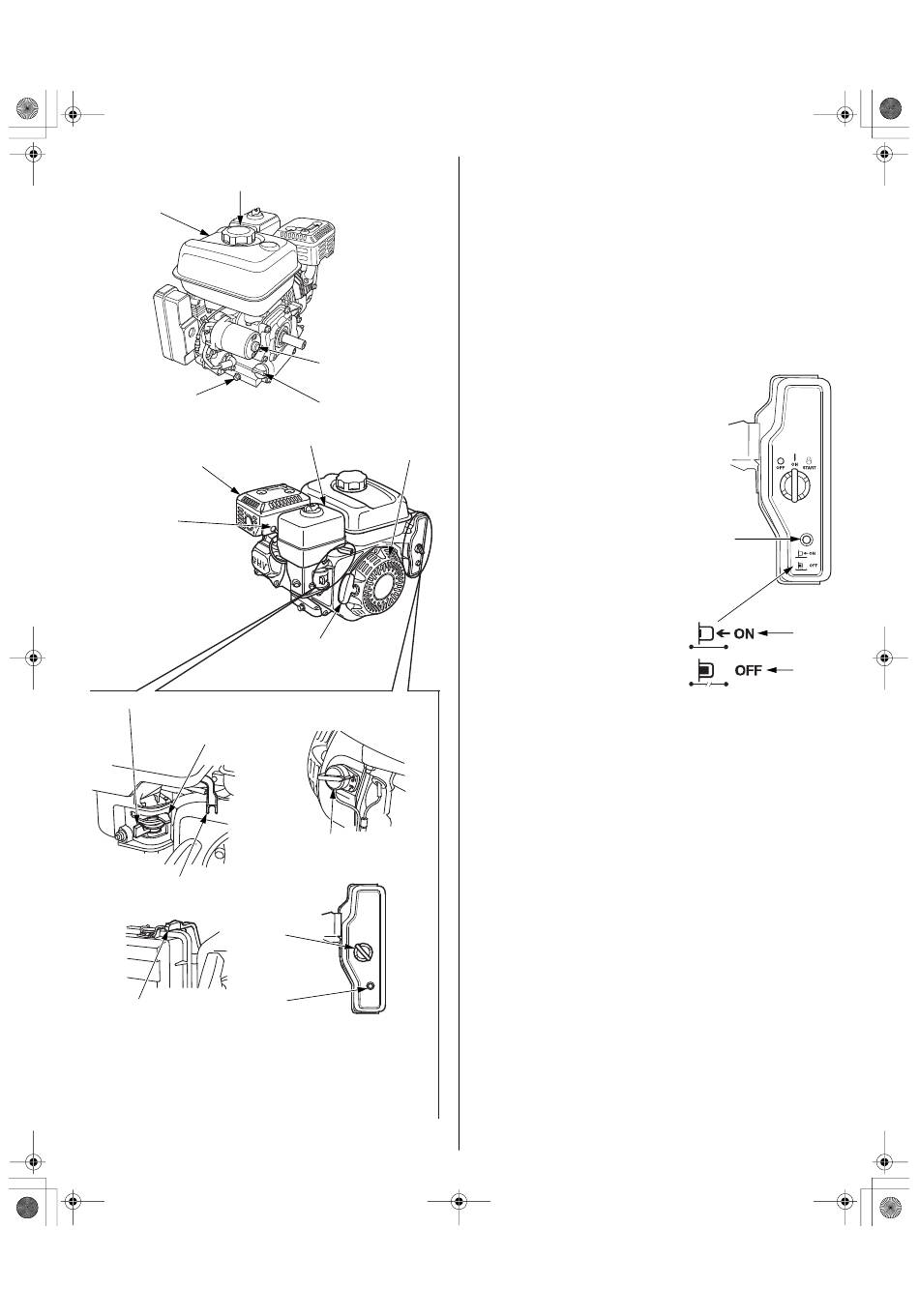

COMPONENT & CONTROL LOCATIONS
FUEL FILLER CAP
FUEL TANK
OIL DRAIN PLUG
MUFFLER
SPARK PLUG
ENGINE CONTROL TYPES
FUEL VALVE LEVER
CHOKE LEVER
THROTTLE LEVER
ENGINE
SWITCH
CIRCUIT
CHOKE LEVER
PROTECTOR
(air cleaner low profile type)
ELECTRIC STARTER
(applicable type)
OIL FILLER CAP/DIPSTICK
AIR CLEANER
RECOIL STARTER
STARTER GRIP
EXCEPT ELECTRIC STARTER
TYPES
ENGINE SWITCH
ELECTRIC STARTER TYPES
ENGLISH

FEATURES

OIL ALERT® SYSTEM (applicable types)
''Oil Alert is a registered trademark in the United States''
The Oil Alert system is designed to prevent engine damage caused
by an insufficient amount of oil in the crankcase. Before the oil
level in the crankcase can fall below a safe limit, the Oil Alert
system will automatically stop the engine (the engine switch will
remain in the ON position).
If the engine stops and will not restart, check the engine oil level
(see page 8) before troubleshooting in other areas.
CIRCUIT PROTECTOR (applicable types)
The circuit protector protects the
battery charging circuit. A short
circuit, or a battery connected with
reverse polarity, will trip the circuit
protector.
The green indicator inside the circuit
protector will pop out to show that the
circuit protector has switched off. If
this occurs, determine the cause of
the problem, and correct it before
resetting the circuit protector.
Push the circuit protector button to
reset.
CIRCUIT
PROTECTOR
ON
OFF
3
