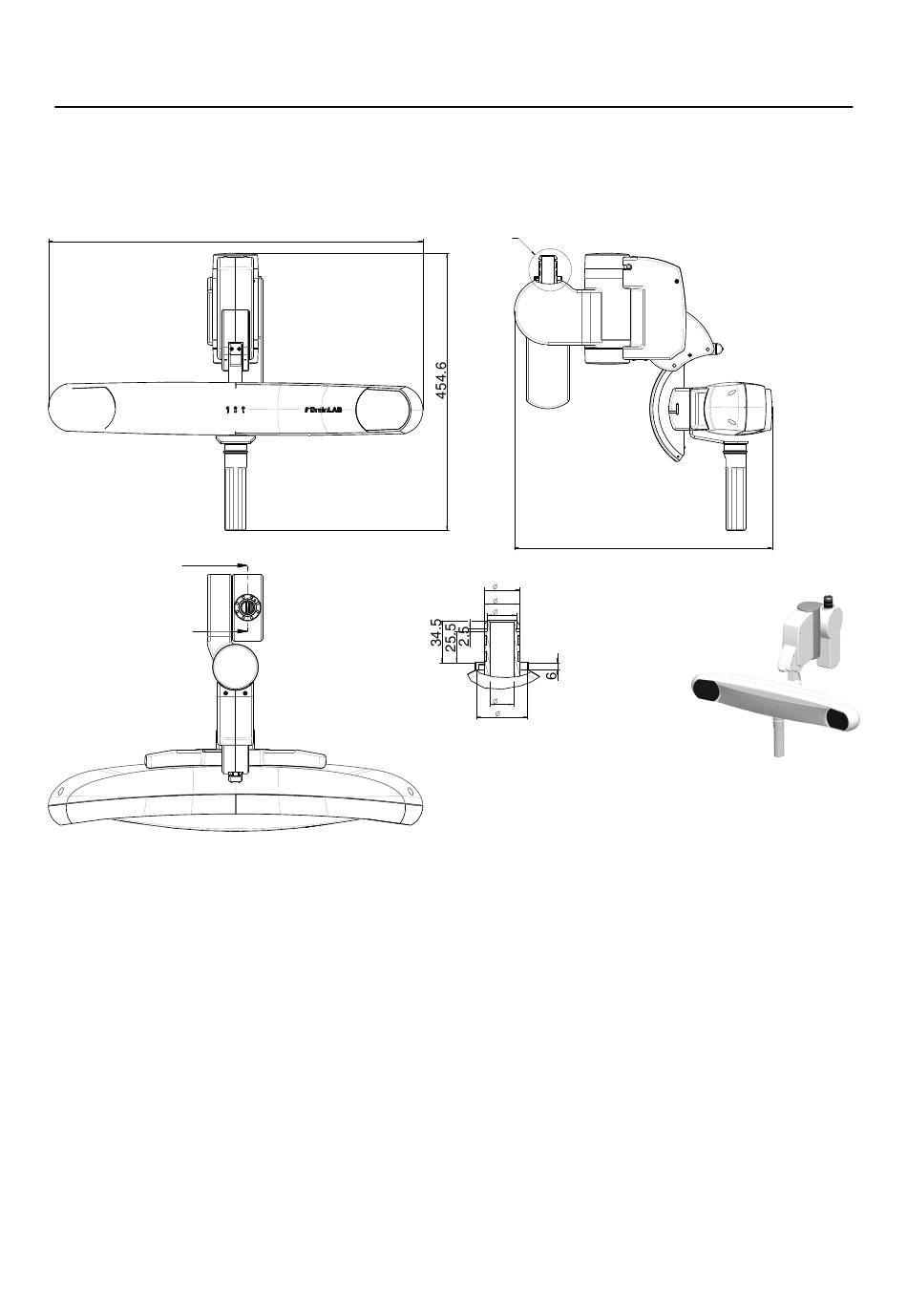

Maße
Motorisiertes Kameragelenk
C
C
86 Technisches Planungshandbuch Aufl. 1.0 Curve
613
Ceiling-Mounted Single Display Curve
C-C
E
411.9
E
29.2
28.9
23.7
19.4
42
Curve CM Interface
Specification Drawing
Motorized Joint incl. Camera
(based on PF1025-0500 Rev. 003)
Dimensions stated in mm
Abbildung 50
Ceiling-Mounted Dual Display Version 1.0
