4.2.3

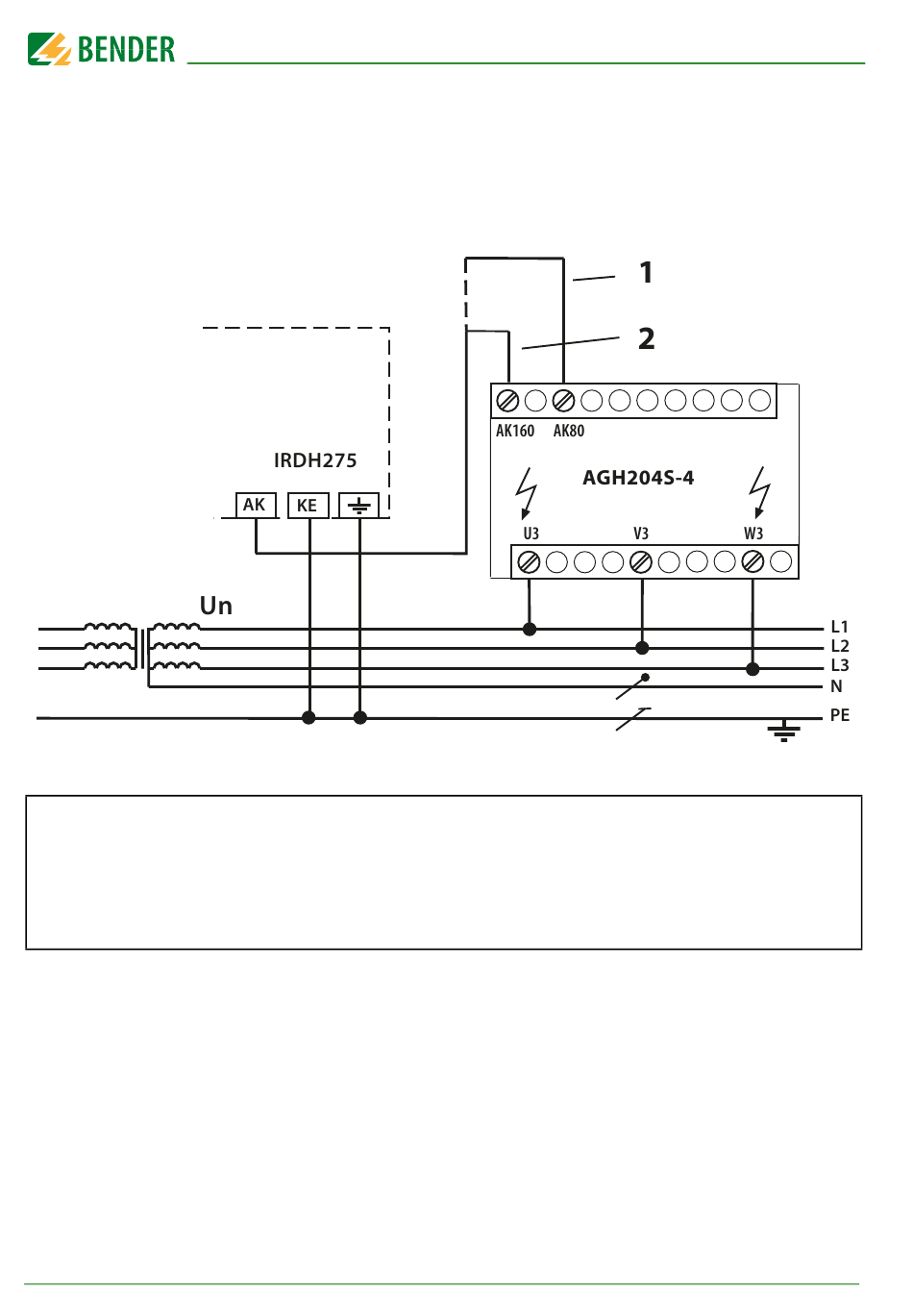

Connection with AGH204S-4

This coupling device extends the nominal voltage range of ISOMETER®s used
in AC systems including rectifiers.
1 without rectifiers
2 with rectifiers
34
U = 3AC 0....1650 V (DC max. 1000 V)
n
U = 3AC 0....1300 V (max. AC voltage; max. DC vol-
n
tage after rectifiers in intermediate circuits of fre-
quency converters:1840 V)
IRDH275_D00122_03_M_XXEN/05.2017
Connection
