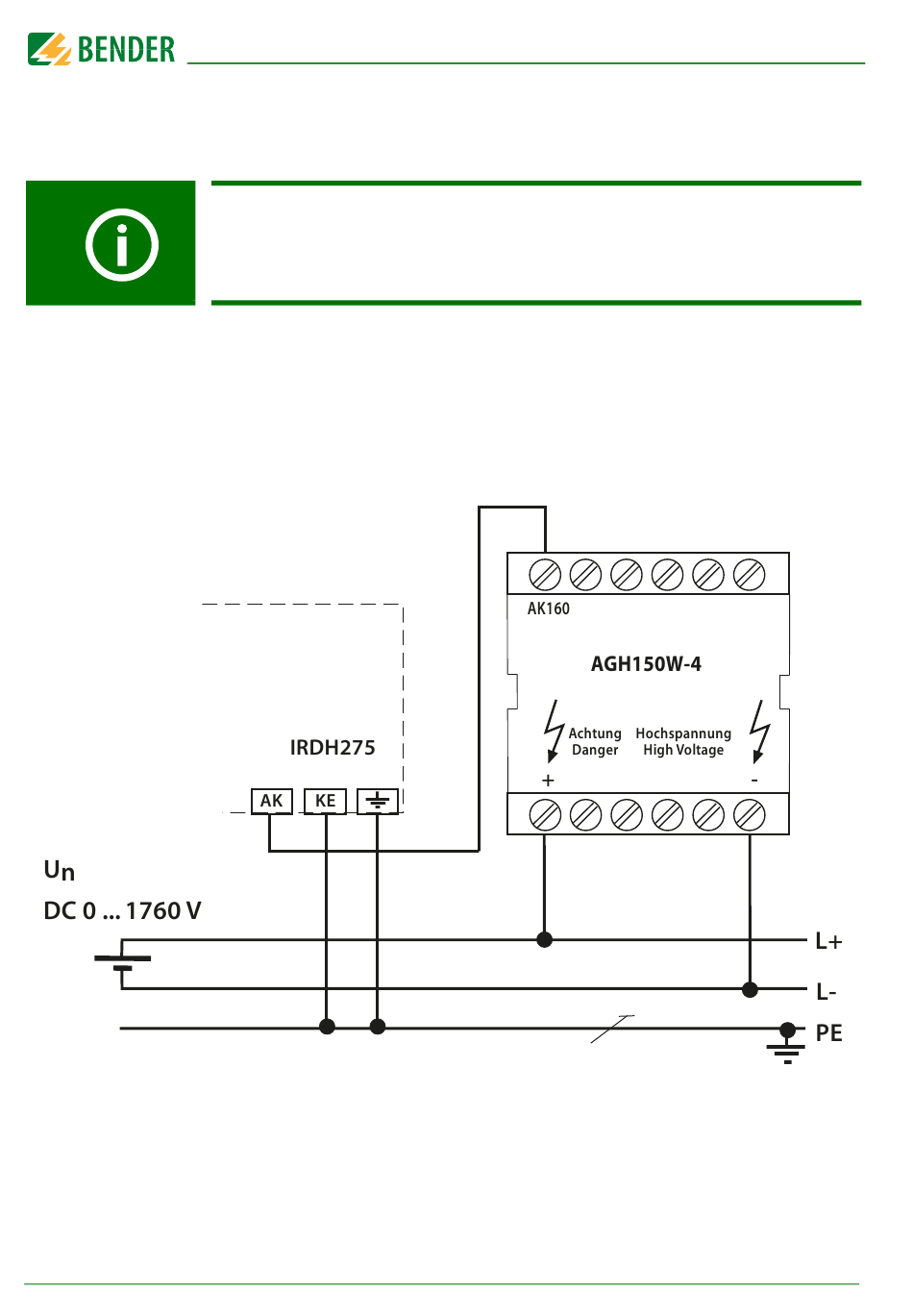

4.2 Wiring diagrams with coupling devices

4.2.1

Connection with AGH150W-4

Connected to the ISOMETER® this coupling device extends the nominal volt-
age range to DC 1760 V in DC systems.
32
Please observe the settings in the "ISO ADVANCED AGH"
menu ! Adapt the settings to the coupling device to be used.
