6.1.1

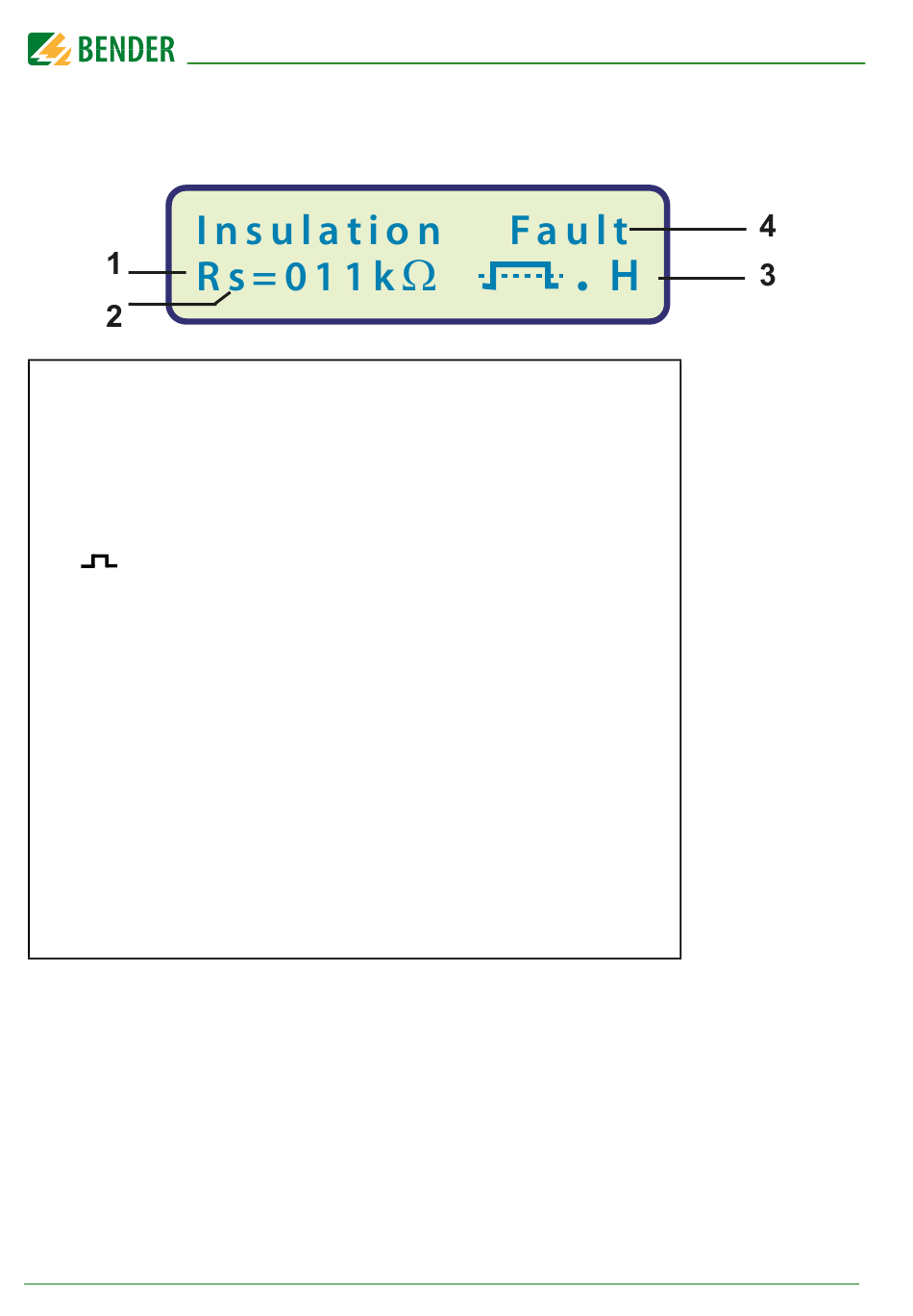

Display in the standard mode

1 Indication of the insulation resistance in kΩ
2 Additional information about the insulation resistance:
"+" = insulation fault at L+
"–" = insulation fault at L–
"s" = new measurement has started
3 = polarity of the measuring pulse
.
= valid bus communication signals
H = new entry in the memory data base
C = flashing, clock is to be set
4 Messages:
- Insulation fault
- Connection system?
- Connection PE?
- Device error x
- ****STANDBY*****
