In automatic mode the speed of the beam movement can be influenced by the SPEED and WAIT
potentiometers.

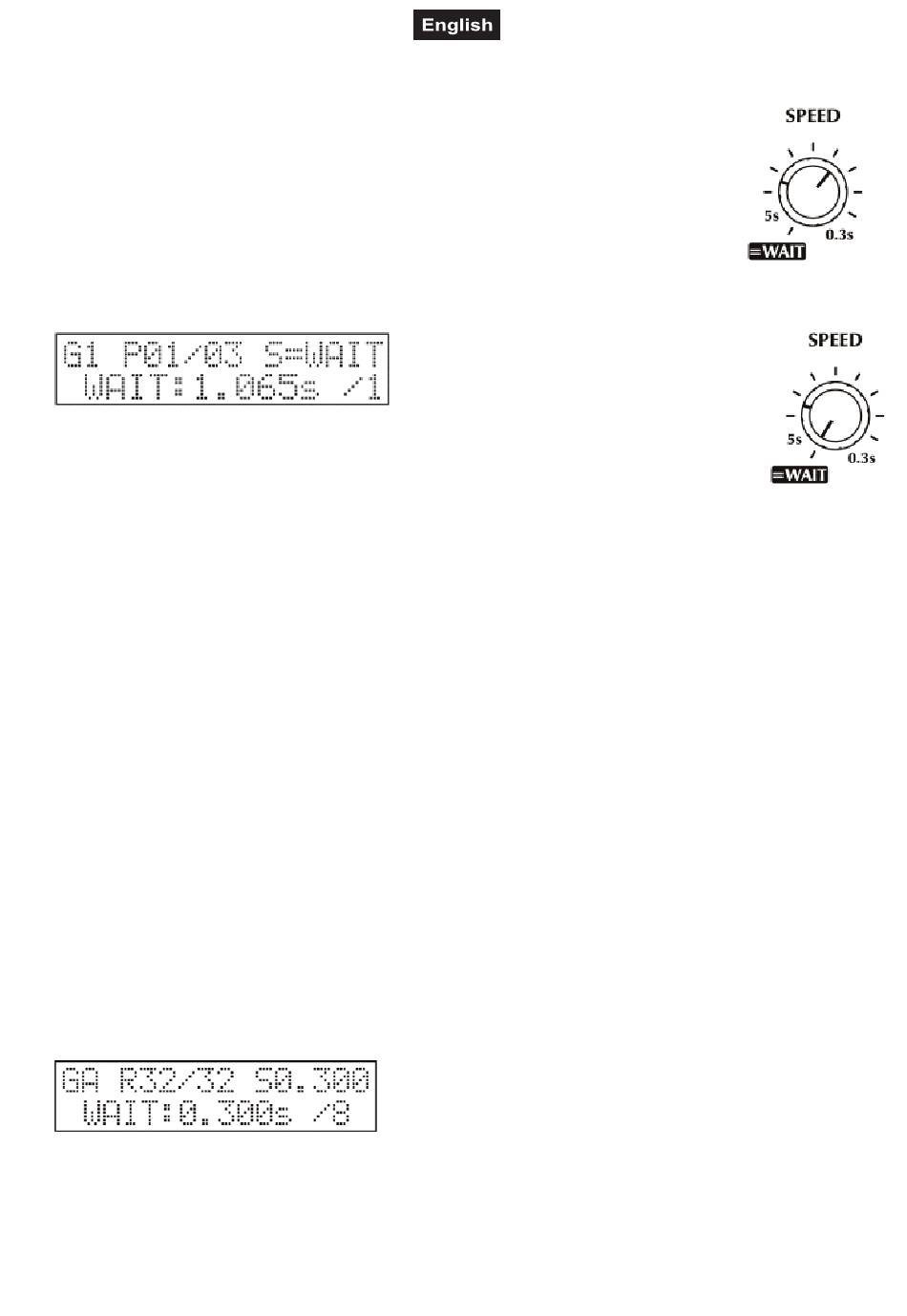

1. Set up SPEED for own time:
With the SPEED potentiometer the movement time can be set in a range of 0.300s-5.000s.
It is carried out according to a logarithmic scale, as a consequence the beam speeds can be
set very comfortably.
2. SPEED set for wait time:
to the new position within the time of the scene time. At the moment of their stop the next
scene begins to load. So during the program running the beams will never wait at the same
time. In the right upper line the display indicates the SPEED value is the same as the WAIT
value at present.
Launching the sequences:
By pressing the SEQUENCE button the sequences can be launched on buttons 1-16. At that time in the
upper line of the display the number of the sequence launched by chance and its step number appears, with
the current speed on the right side. In the lower line the current position of the sequence is shown, which unit
is in open or closed position at that moment. If the sequence button is kept pressed and you press any of
buttons 1-16 this way, the sequence belonging to it will not start but the controller displays the name of that
sequence in the lower line for a short time, which can be given in the sequence edition. Thus a sequence
can be identified easily, there is no chance to start a wrong sequence accidentally!
There are more options to control sequence speed. In the minimal position of the wait slider the sequence
will stop. In the maximal position of the wait slider the sequence will run by music control. You can select
also an AUTO BPM value with the PAN jog wheel or give a manual bpm value with the BPM button.
Calling the preset scenes:
By pressing the PRESET button the preset scenes can be started with buttons 1-16. At that time the
information does not change on the display.
When calling the preset scene, the channels of the units belonging to the preset scene switch to manual
mode, their value is set according to the preset scene. The LED of the MANUAL button starts flashing,
indicating that there is channel in preset mode. A preset scene can be terminated by pressing the PRESET
button. If the preset button is kept pressed and you press any of buttons 1-16 the preset belonging to it will
not start but the controller will display the name of the preset in the lower line, which can be given in the
preset edition. Thus a preset can be identified easily and there is no chance to call a wrong preset
accidentally! The channels which are part of the active preset scene can not be modify in manual mode!
Launching the records:
you start a program while you are running a record, then the record will stop automatically.
If the RECORD button is kept pressed and you press any of buttons 1-16, the corresponding record will not
start but the controller will display the name of the record in the lower line, which can be given in the record
edition. Thus a record can be identified easily and there is no chance to call a wrong record accidentally!
By turning the SPEED potentiometer
maximum value, the speed times should be the
same as the scene shifting times. As a
consequence, the speeds can be set with the
WAIT potentiometer, and the beams will move
By pressing the RECORD button the preset scenes can be
started with buttons 1-16. In the upper line of the display the R
letter and then the started record number and its step appears.
If there is a running record and you press the PROGRAM
button you can read on the display the program numbers. If
