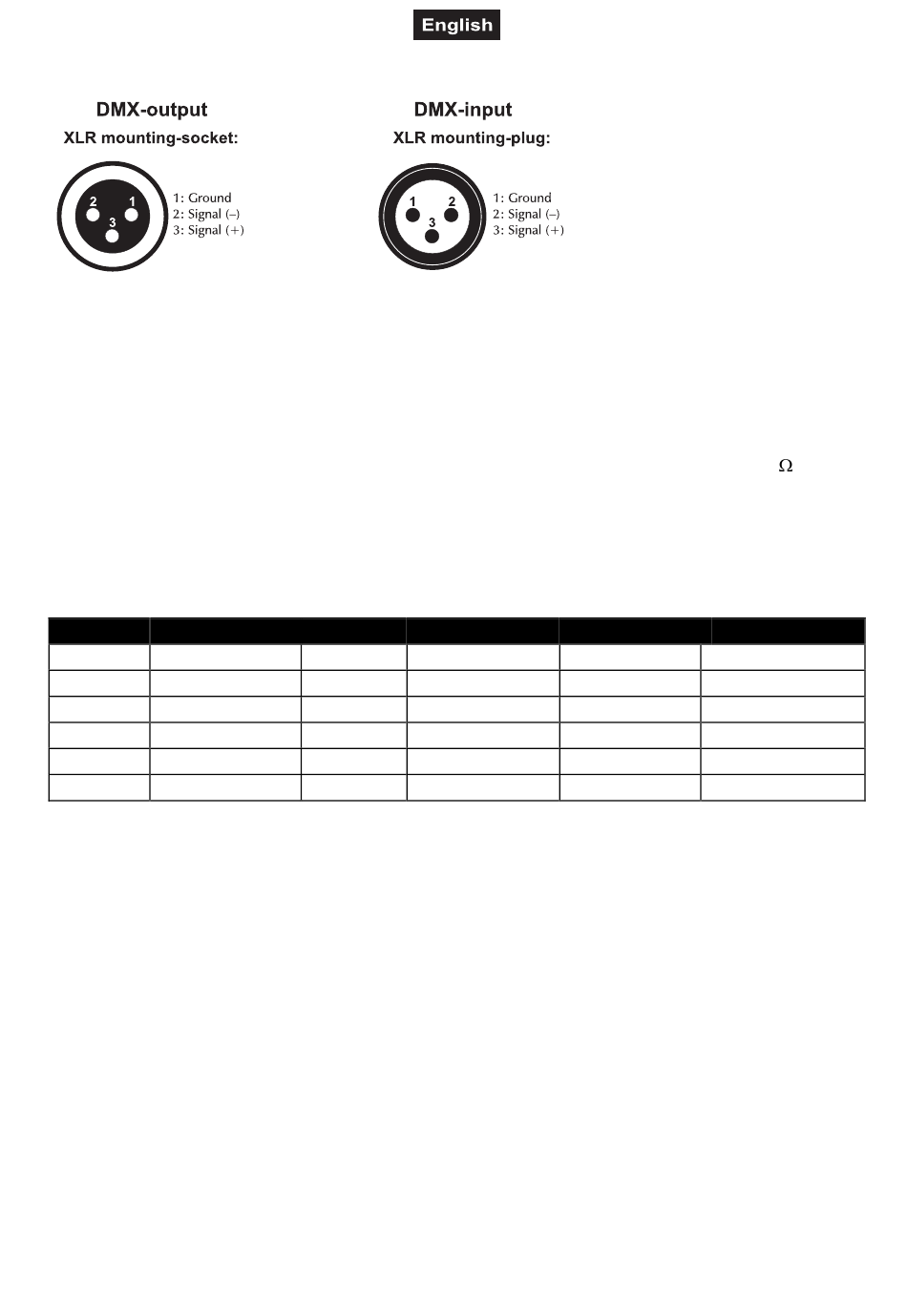

Occupation of the XLR-connection:
If you are using the recommended FUTURELIGHT-controllers, you can connect the DMX-output of the
controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-
controllers with other DMX-outputs, you need to use adapter-cables.
Building a serial DMX-chain:
Connect the DMX-output of the CP-512 MST with the DMX-input of the nearest projector. Always connect
one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Projector addressing
Please note that the CP-512 MST assigns the DMX-starting addresses every 32 steps. You have to address
every projector to the respective starting address. Otherwise, the channel assignment will not be correct. All
projectors with the same starting address work synchronically.
Projector
Starting address
Projektor 1
1
Projektor 2
33
Projektor 3
65
Projektor 4
97
Projektor 5
129
Projektor 6
161
6. OPERATION
With the Power-button, you can switch the device on and off.
Please note that you have to hold the Power button for approx. 5 seconds in order to switch the unit off.
6.1 Menu System
It is practical to start by getting know how to use the controller with its menu system and its settings. After
connecting power supply and pressing BO button, the controller is in automata mode. The controller enters
the menu in 2 seconds after keeping the MANUAL and RECORD buttons pressed down simultaneously.
In the upper line of the display the number of the current menu item appears, in the lower line the
denomination of the menu item appears. Select among the menu items with the DATA ENTRY potentiometer
or the UP-DOWN buttons. You can enter the current menu item by pressing down ENTER, and return to
automatic mode by pressing down ESC.
If the setup menu item has been selected, the controller enters the setup menu by pressing down ENTER.
There, further menu items can be selected.
Setup Menu
11. USB Memory
10. Menu code
9. Controller data
8. Software version
Projector
Starting address
Projektor 7
193
Projektor 8
225
Projektor 9
257
Projektor 10 289
Projektor 11 321
Projektor 12 353
(Setting pendrive)
(Setting menu code, or switch off)
(Serial number and manufacturing date of the controller)
(Version number and date of the controller software)
Projector
Projektor 13
Projektor 14
Projektor 15
Projektor 16
39/62
resistor
Starting address
385
417
449
481
