SETUP MENU 2: THE POSITION OF THE UNIT
A max of 16 units can be controlled by the controller. There are 16 so-called positions, to which a unit of that
type has to be assigned to from the unit directory that you would like to control. The 16 positions are stood
for by buttons 1-16. In this menu item the units can be assigned to the 16 positions, their dmx addresses and
mirror direction can be set.

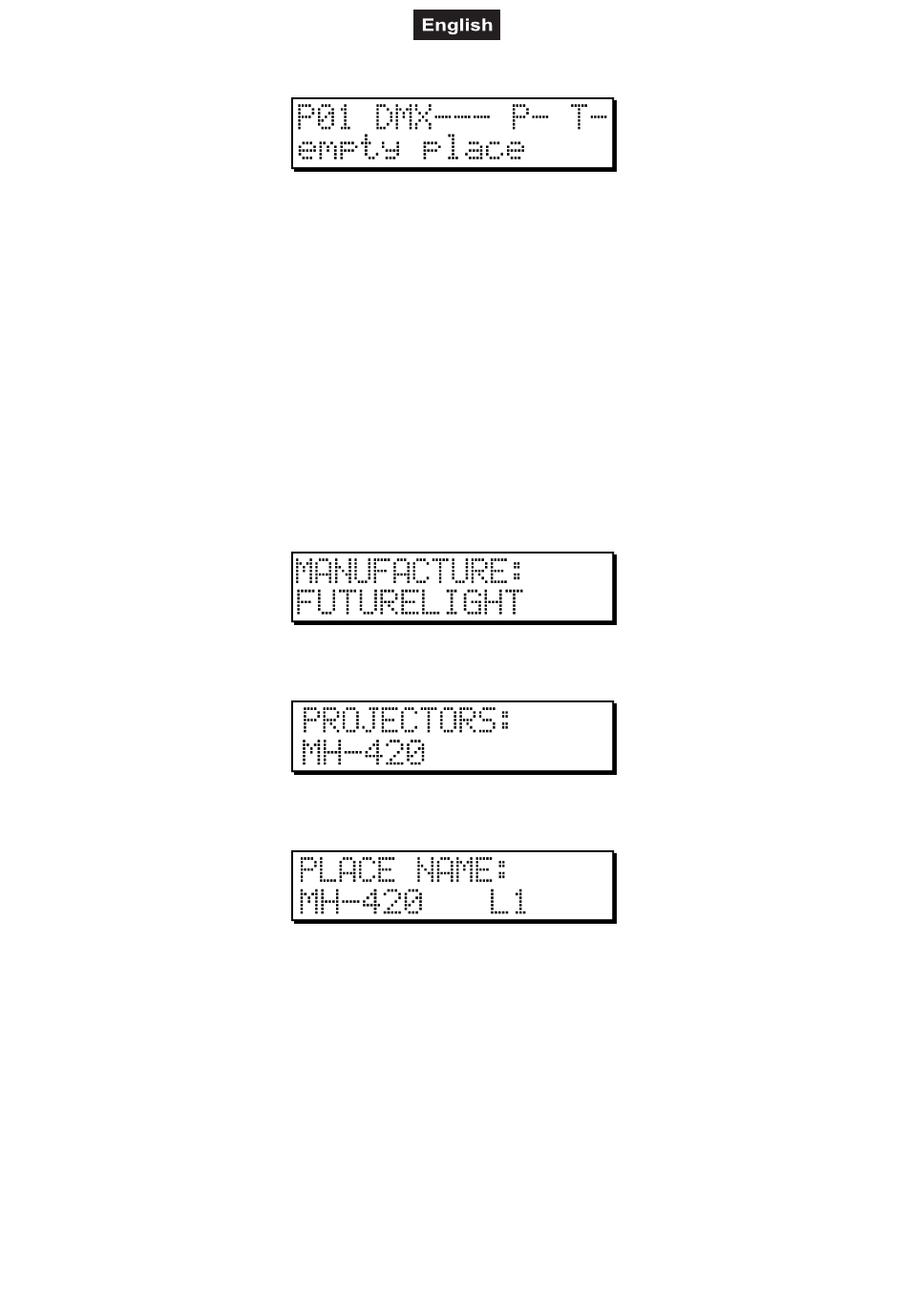

In display's upper left corner the number of the current position is shown, all the other data belongs to this
position. After the DMX text the DMX address of the current positions appears, the selected unit has to be
set to the address appearing here. On the right side the mirror direction of the unit assigned to the current
position is shown. The mirror directions can be inverted, so the mirror or head of the units installed opposite
to each other will move into the same direction according to turning the right disc to the left. In the display's
lower line the name of the positions belonging to the current position appears, which can be edited by the
user as well.
The position can be selected with buttons 1-16. If no unit is assigned to a position, the wording "blank"
appears in the lower line and only the position number appears in the upper line, the other data is crossed
out.
If you want to assign a unit to the current position, press the ENTER button.
First select the manufacturer of the unit included in the controller. Use the UP/DOWN buttons. Then press
ENTER.
You can browse between the units with the UP/DOWN buttons, select the appropriate unit and press
ENTER.
Give the name of the position. If no unit has been assigned to the current position so far, the controller will
automatically offer the name of the one just selected. It can be kept this way, however, it is worth adding
some letter marks, for example. Later on, this will later help to determine the physical position of the unit
(e.g.: MH-420 L1: the first unit in the left bridge). The name can be modified according to the description in
the chapter of word processing. If the naming has been finished press ENTER.
By this the assignment of the unit to a position is completed. There is still one more adjustable parameter in
this menu item; the setup of the mirror direction. It may be needed if two lamps are installed opposite to each
other and you would like to move their light beams into the same direction by moving the right discs. This
time the mirror direction of one of the units has to be inverted with the F1 and F2 buttons.
If you would like to delete a unit from a position press DELETE.
If no modification has been made in the menu item, the controller returns to the setup menu by pressing the
ESC button, if any modifications have been made, the controller asks for the confirmation to save the
modification.
