The 64 records to be run by the controller can be written in this menu item, the existing one can be edited or
deleted. The maximum step number of a record is 85.

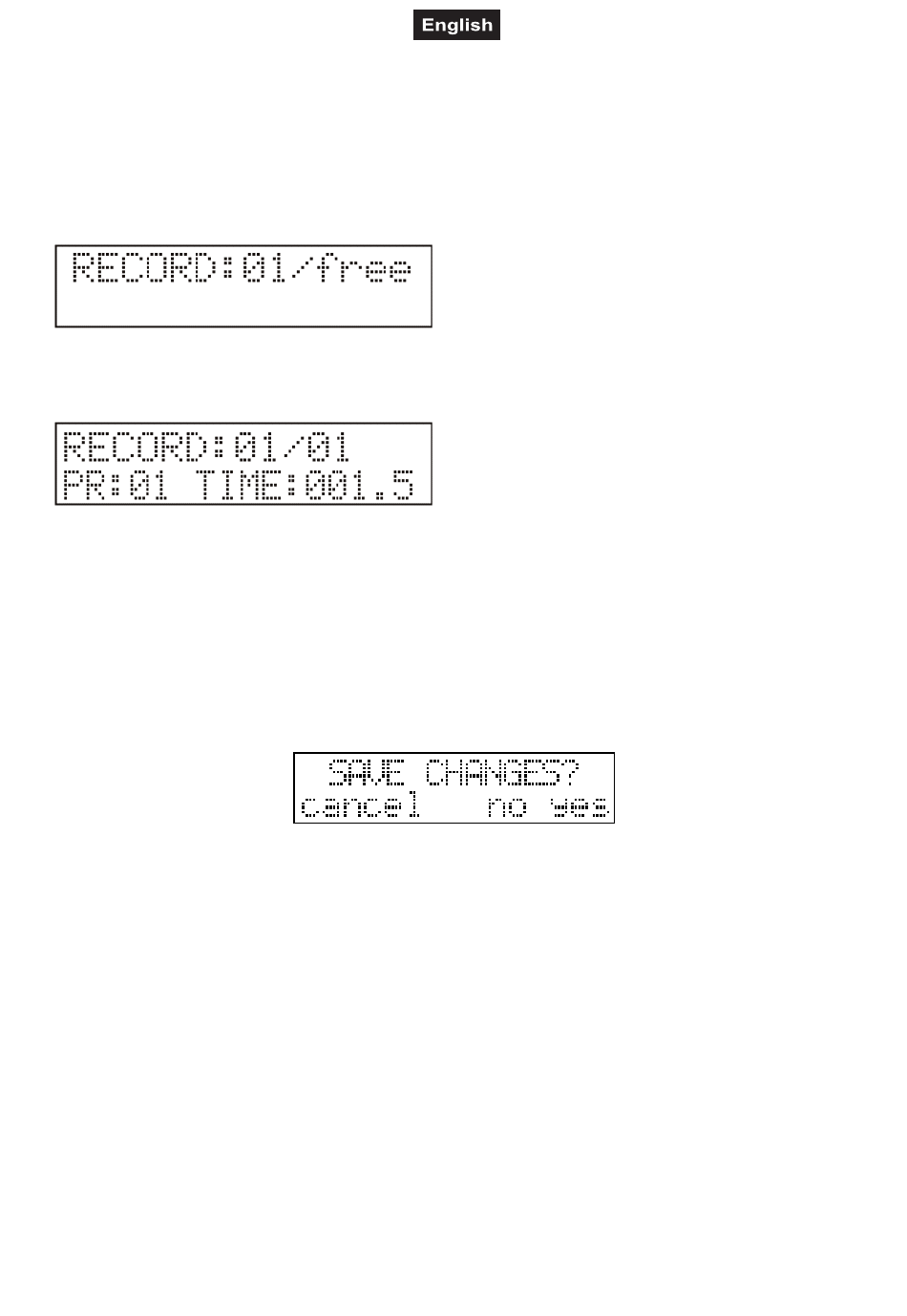

In the upper line the number of the selected record appears - or if it has been written its step number, if it has
not been written the 'free' caption appears. In the lower line the record name appears if the record has been
written.
Select a record with buttons 1-16 and with the PAGE shifting button. Press the ENTER to advance to the
record edition.
Record name specification:
Name the record, then press ENTER.
Record edit:
In the upper line the number of the selected record and the number of the current step appears. The lower
line indicates the program number which is assigned to the current record step and the running time of the
program. Select a program with the PAGE and the 1-16 buttons. The record step time can be set up with
sliders 6, 7 (DATA-1) , 8 (DATA-2) (0.1s-999.9s).
If one record step is edited, you can save it temporarily by pressing ENTER. The controller will increase the
current record step by one and you can advance to the next step.
With the DATA ENTRY poti you can select any record step to modify it. If the modification is completed, you
can log off by pressing the ESC button.
Record saving:
By pressing the ESC button the controller asks for the confirmation to save the modification.
Record deletion:
The record can be deleted from the record selection by pressing the DELETE (LEFT) button. The controller
asks for the confirmation of the deletion, then carries it out after clicking the YES button.
Record copy:
Events can be copied to vacant places. This could be reasonable if you want to use several events which
have only a few differences. In this case create the first event, then copy it to a vacant place, and then
modify it.
First select the event which you would like to copy, and press the NEW button. Its LED starts blinking and on
the lower line of the display you can read the text to be copied. Select a vaccant place with buttons 1-16
where you would like to copy the event to. The display shows the info about source and destination places. If
you press ESC the controller return without copying, press ENTER to copy the event.
MENU 6: FUNCTION BUTTONS
The function buttons on the controller have the denomination F1-F8. You can program a function to these
buttons. Assign the functions most important to you. This way the controller is used best.
