Here in the shape selection you can select from 64 shapes with buttons 1-16 and the PAGE shifting button. If
you want to select units 1-10, you do not have to press all 10 buttons, simply keep button 1 pressed and then
press button 10. In the upper line of the display the state of the selected shape appears next to its number. If
it is "free", it means that this shape is not written, if it is 'OK', it has been written. In case of shape selection
the contingent written shape movements is shown immediately on the connected units.

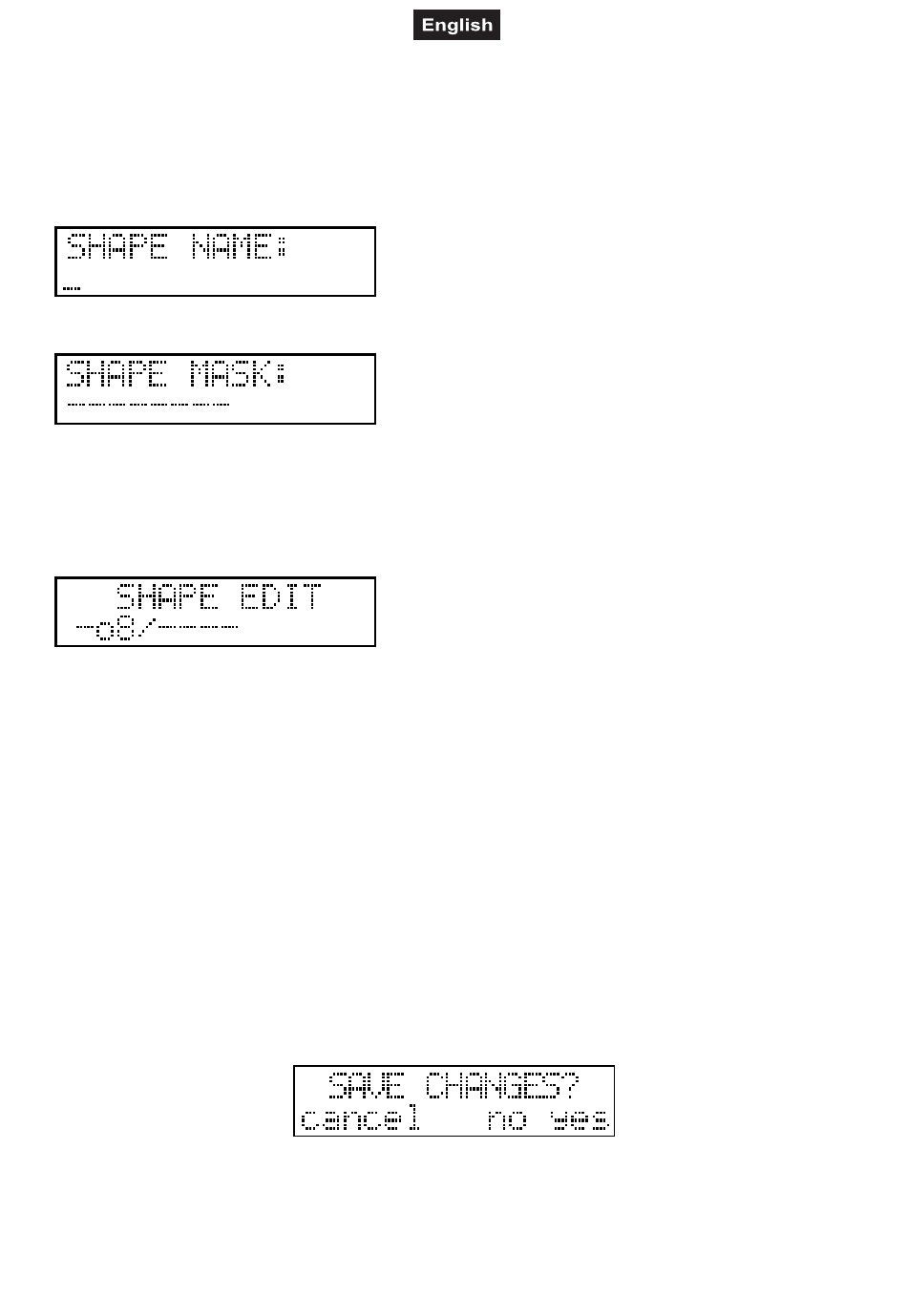

Preparation of a new shape or modification of an existing one:
Select a shape, then press ENTER.
Enter a name for the shape, then press ENTER.
Now set the units you would like to have a shape drawn by. The current setup is shown in the lower line. If
there is no character, then no unit has been installed for serial number. The horizontal line means that unit
will not draw any shape; it is masked. The units can be masked in and out with buttons 1-16. The masked
units are open and the others are closed, so it is very easy to identify the masked units on stage. After
pressing the button for two seconds the unit name appears, then a star is shown at the place of the masked
units. After masking press ENTER.
Now the masked units can be selected on buttons 1-16 and shapes can be assigned to them with the
GROUP1-GROUP4 buttons. You can have a total of 8 different shapes drawn: round, octet, triangle,
rectangle, straight line, ex, zigzag and sine.
Adjustable parameters of the shapes:
Center: the center of shape drawing of the selected units can be set with the jog discs.
-
Width: width of the shape can be set with potentiometer 1 (0-255)
-
Height: height of the shape can be set with potentiometer 2 (0-255)
-
- Speed: angular speed of the shape can be set with potentiometer 3 (0-255)
- Direction: drawing direction of the shape can be affected with potentiometer 4 . (Forward - Backward)
- Rotating: the shape can be rotated with potentiometer 5, in this way, for example, a laid octet can be
drawn.
- Initial angle: initial position of the shapes can be set with potentiometer 6, drawing will be started in this
position.
Shape drawing can be stopped on a unit, it means that if a unit has been drawing a shape so far and now
such a shape is starting, in which the shape drawing of this unit is set to stop, it completes the unit drawing.
It can be switched on with the DELETE button.
The shape can be restarted with the SHIFT (BPM) button.
If no modification has been made in the shape, then the controller returns to the shape selection by pressing
the ESC button, if any modification has been made, the controller asks for the confirmation to save the
modification.
Shape deletion:
The shape can be deleted by pressing the DELETE (LEFT) button in the shape selection. The controller
asks for confirmation of the deletion, and then it completes it after clicking on the YES button.
