7. Working time
6. Language selection
5. LED setting
4. Display setting
3. Smoke-machine setup (Setting of the channels of the smoke-machine)
2. Unit position
1. Unit installation
Menu
1. Shape construction
2. Program construction (construction of 1-64 program)
3. Sequence construction(construction of 1-64 sequence)
4. Preset construction
5. Record construction
6. Function Buttons
MENU SYSTEM – ASKING FOR MENU CODE
If the menu code is activated, then it must be entered before stepping into the menu. Use buttons 1-16. After
typing the code press ENTER. If the code is not correct, the controller will give a warning and you can start
to type it again by pressing the ESC button.
If you forgot the code you will need the PI code of the controller but first you need to know the serial number
of the controller. If the controller asks for the code, press the BPM button and you can see the serial number
on the upper line of the display. Give this serial to the manufacturer or to your dealer and they will provide
the PIN code for your controller.
Enter the PIN code also by pressing buttons 1-16 but before pressing ENTER press and hold the BPM
button pressed. Then the controller will switch into the menu system. It is practical to modify or delete the
menu code before leaving the menu.
SETUP MENU 10: MENU CODE
It is possible to protect controller data with a menu code. If you want to protect your data against
unauthorized persons activate the menu code. If you want to enter the menu system from automata mode
after the activation you have to enter the code first to reach the menu and the setup.

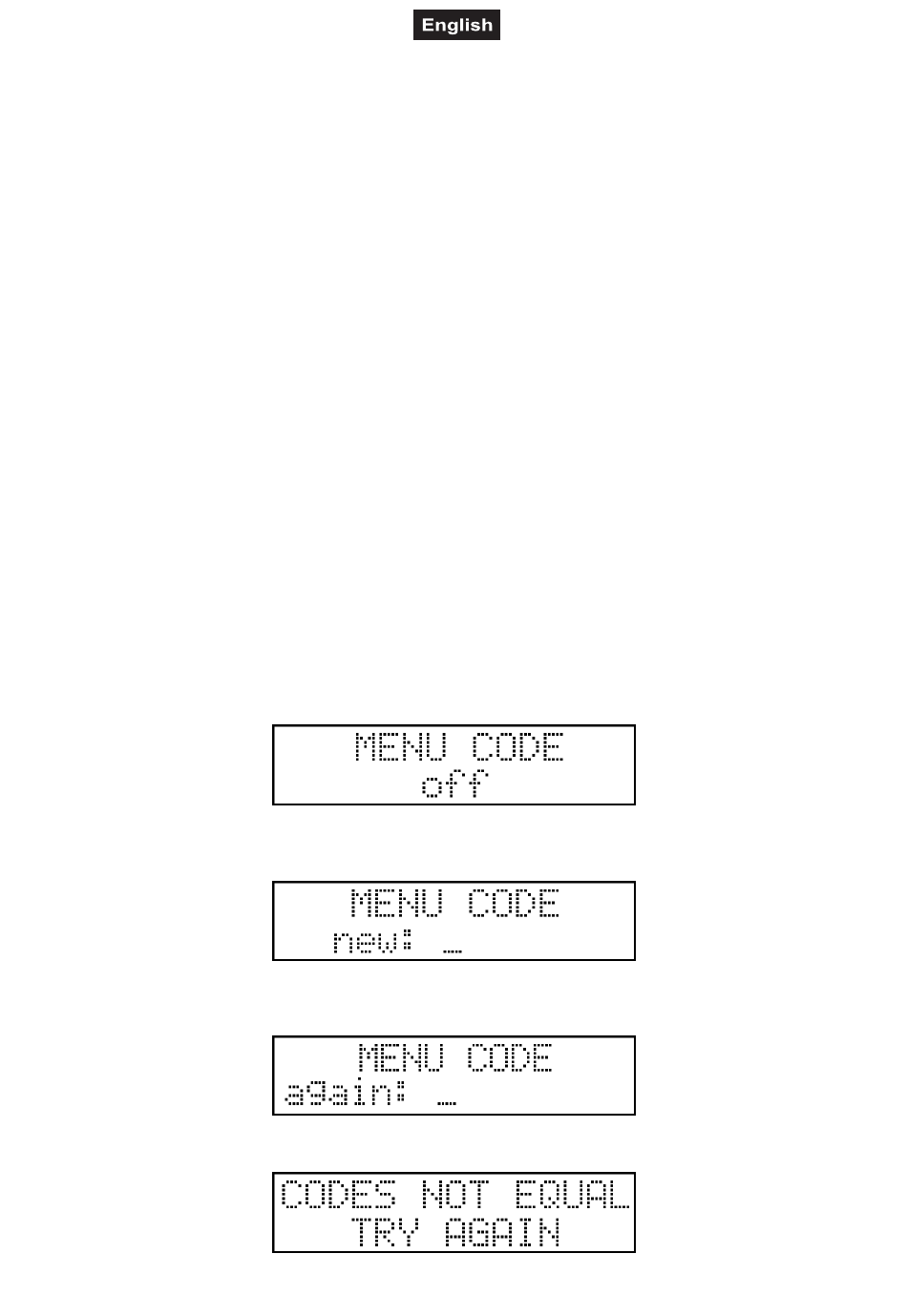

Activate menu code select SETUP menu MENU code position.
If you see 'off' in the lower line then the code is not activated yet. Press ESC to go back. After pressing
ENTER you have to type in the new code.
With buttons 1-16 you can type the new code, up to a max. of 6 characters. Press ESC to go back. After
entering the code press ENTER.
Provide the new code again and press ENTER.
(working time counter)
(Selection of the language of the texts shown on the display)
(Setting of the intensity of the Leeds)
(Setting of the display intensity and contrast)
(Unit assignment to 16 positions from the directory, setup of the mirror directions)
(entering a new unit into the directory, modification of the existing one)
(construction of 1-64 Shape )
(construction of 1-64 preset scene)
(construction of 1-64 record)
