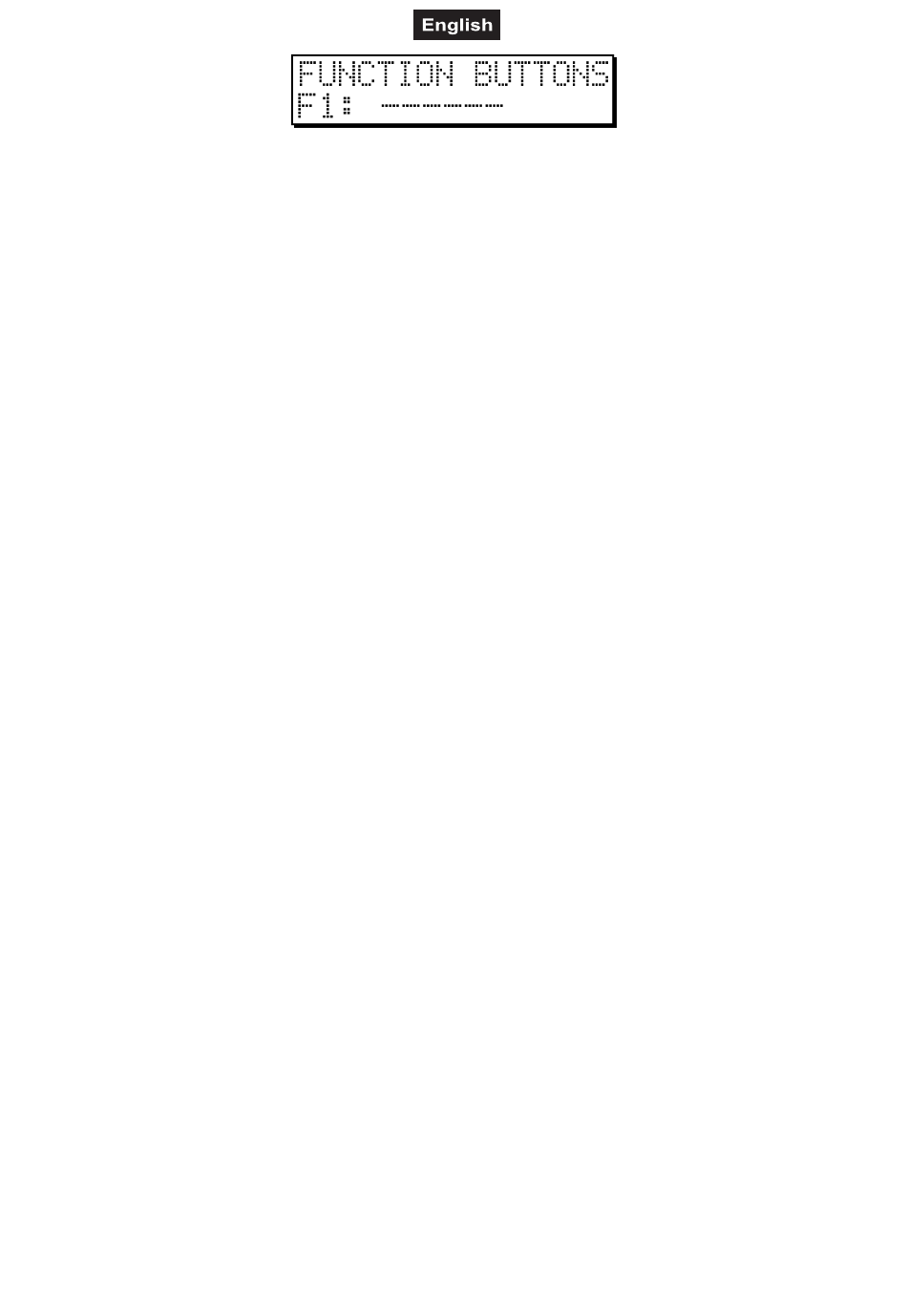

Set the flashing value with the UP/DOWN buttons. First select one of the F1-F8 buttons, then press ENTER.
The next flashing parameter will be the function name. Select a button with the UP/DOWN buttons. There
are functions that do not have any parameter, in this case you cannot advance by pressing the ENTER
button. Return by pressing the ESC button. If you do not want to assign any function to a button, delete by
pressing the DELETE button.
Selectable functions and their description
GROUP
The controller can run four programs at the same time. The parallel program run can be made in groups. The
controller can manage a total of 4 groups, each group can be run with a different speed.
The parameter of the function is the group number from 1 to 4. If only one group is used, it is not worth
assigning it to a button, however, in case of two it is necessary.
BLACK-OUT
When being pressed, the function will close the units, which means that it will produce a black-out function. It
is a unique feature of this controller that it can be set by parameters, as it can be specified which units it
should affect from 1-16. Thus – if necessary - more function buttons can be named as BLACK-OUT, and can
be set so that, for example, by pressing one of them, only the lamps at the stage edge are to go dark, while
by pressing the other one the rear lamps are to go dark, and you can set a third function to black-out to close
all of them. The unit can be designated with buttons 1-16 after the B-OUT parameter has been selected. In
addition it can be set by other parameters so that the movement of the units is to stop during the BLACK-
OUT or is to run on, of course, in a closed state. These are the STOP or '-' wordings.
MANUAL BPM
The program frame time can be given according to the manual rate on the button set to MAN.BPM function.
Its parameter is the group number. It can be set which group it should affect or if it should affect all (ALL)
simultaneously.
MUSIC
The music mode can be activated not only by setting the WAIT pot to its maximum value, but it can be
assigned to a function button as well. Which group it should affect can also be set by parameters.
After pressing it the groups assigned will advance, create framing according to the rate of the built-in
microphone.
STOP
The 'stop' mode can be activated not only by setting the WAIT pot to its minimum value, but it can be
assigned to a function button as well. Which group it should affect can also be set by parameters.
After pressing it the group program assigned will stop framing.
WAIT
This mode can be activated not only by setting the SPEED pot to its minimum value, but it can be assigned
to a function button as well. Which group it should affect can also be set by parameters.
After pressing it the SPEED time of the assigned groups will be the same as the WAIT time, so the light
beams will move in a program frame for exactly the same period of time as the framing.
SLIDER
On the SLIDER button all the four pot sides can be accessed, however, one for whom the manual
accessibility is important and who uses lamps of great number of channels may put one-one pot side to a
function button, so he can swift to any of them fast.
PAGE
The pages of event groups can be switched not only by the PAGE button, but each page can be assigned to
one-one function button as well. If one wants to access the events fast, it is worth putting them to a function
button for it.
SMOKE
