A - Envelope catch tray (optional)
B - Envelope slide (optional)
C - Display with operating buttons
2
D - Upper unit
E - Locking hand grip upper unit
F - Document feeders
G - Collator arm
H - Collator area
I - Power inlet, power switch, (RS232 con-
nector / USB)
J - Knobs for clearing stoppages

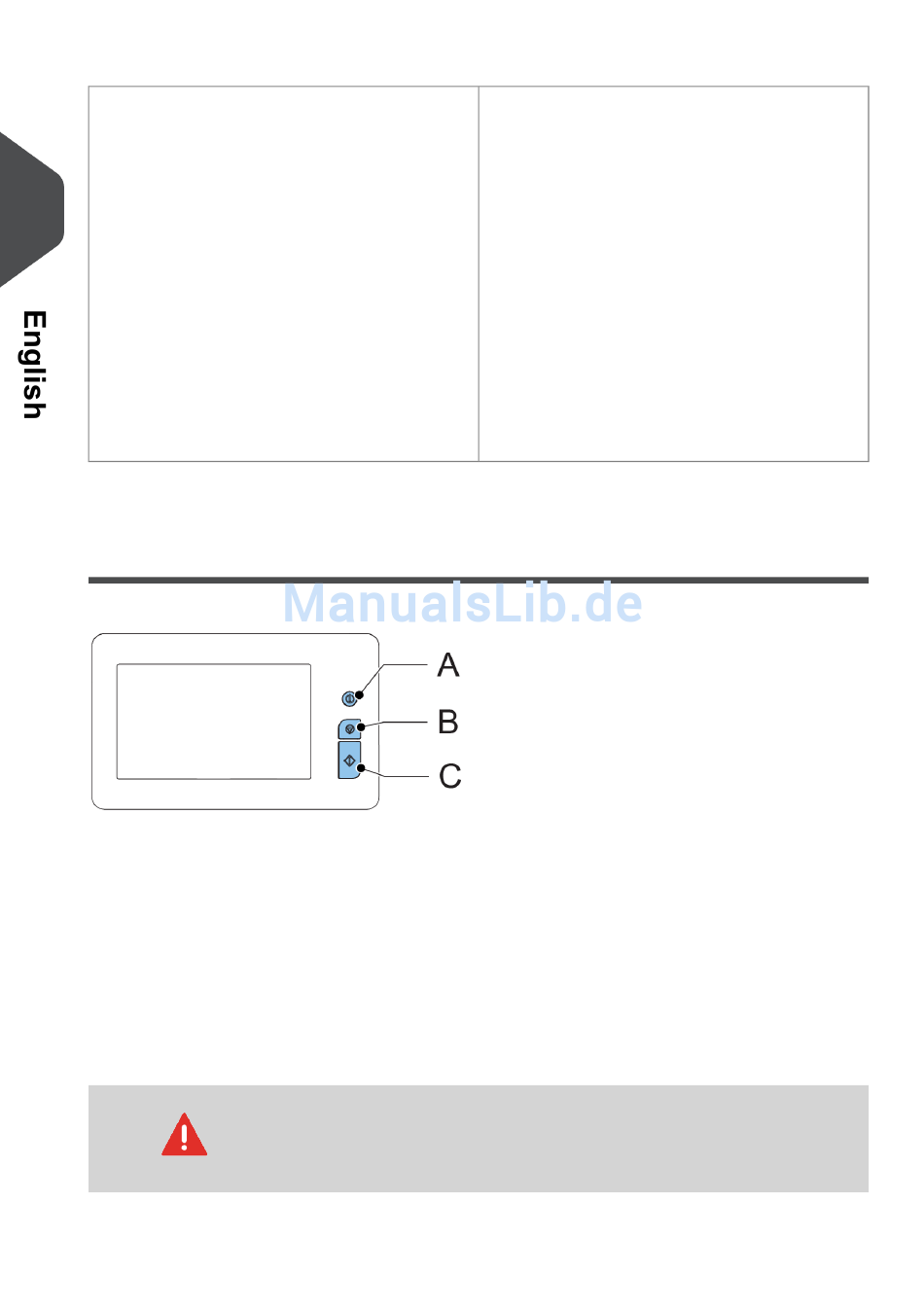

Control Panel

The control panel consists of the touch screen and the following buttons:
A. On/Off button. Switches the system on or off. If the system is not used for one hour, the
system switches to the power save mode. Press the On/Off button to switch back to the
user mode.
B. Stop button. The system completes the current mail set and stops, leaving the system
empty and ready for a new set. The Stop button and [Stop] on the touch screen have the
same functionality.
C. Start button. The system starts to process mail sets. The Start button and [Start] on the
touch screen have the same functionality.
6
The touch screen is covered with a thin pressure-sensitive layer.
To avoid permanent damage of the touch screen, do not use sharp
objects to press on the touch screen.
K - Sensors
L - Bellows
M - Handle for clearing stoppages
N - Sealing liquid reservoir
O - Side cover (opened)
P - Ruler
Q - Thumb wheel for side guide adjustment
R - Side guides envelope hopper
S - Knob for separation adjustment
T - Envelope support bracket
