3.3 Structure of menu pages
When switching on, some introductory pages are displayed, followed by a main menu.
The name of each menu is always displayed at the top of the screen.
The main menu always displays the following items:
Status: operating status (e.g. standby, go, Fault, input functions)
Frequency: value in [Hz]
Pressure: value in [bar] or [psi] depending on the set unit of measurement.
If an event occurs, the following may be displayed:
Fault messages
Warning messages
Messages on functions associated with inputs
Special icons
The error or status conditions visible in the main menu are listed in Table 14.
Identifier
GO
SB
PH
BL
LP
HP
EC
OC
OF
SC
OT
OB

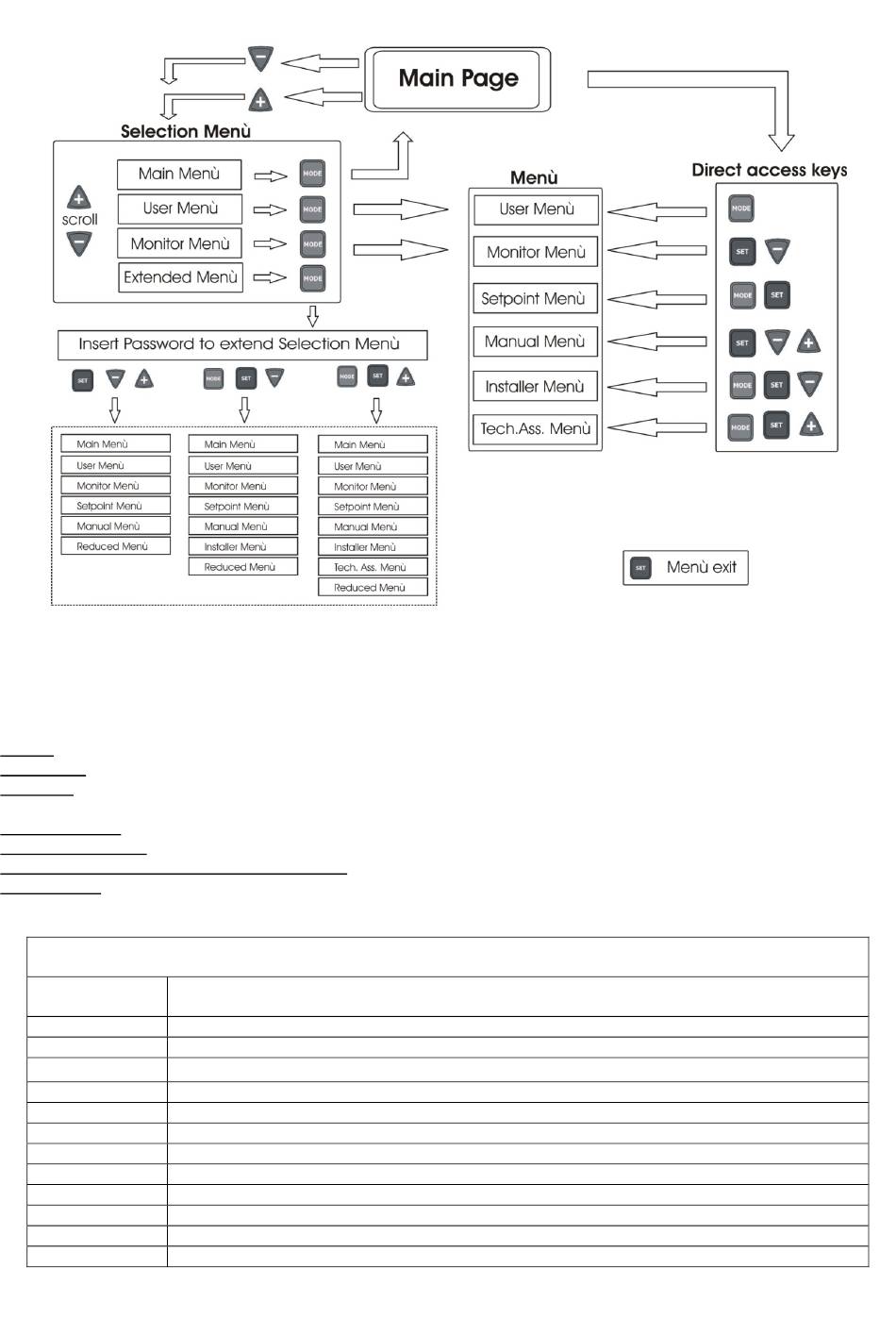

Figure 7: Optional menu access scheme
Error and status conditions visible in the main menu
Electric pump ON
Electric pump OFF
Cutout due to pump overheating
Block due to water failure
Block due to low power supply voltage
Block due to high internal power supply voltage
Block due to incorrect setting of rated current
Block due to current overload on electric pump motor
Block due to current overload on final stages of output
Block due to short circuit on output phases
Block due to overheating of final power stages
Block due to overheating of printed circuit
ENGLISH
Description
