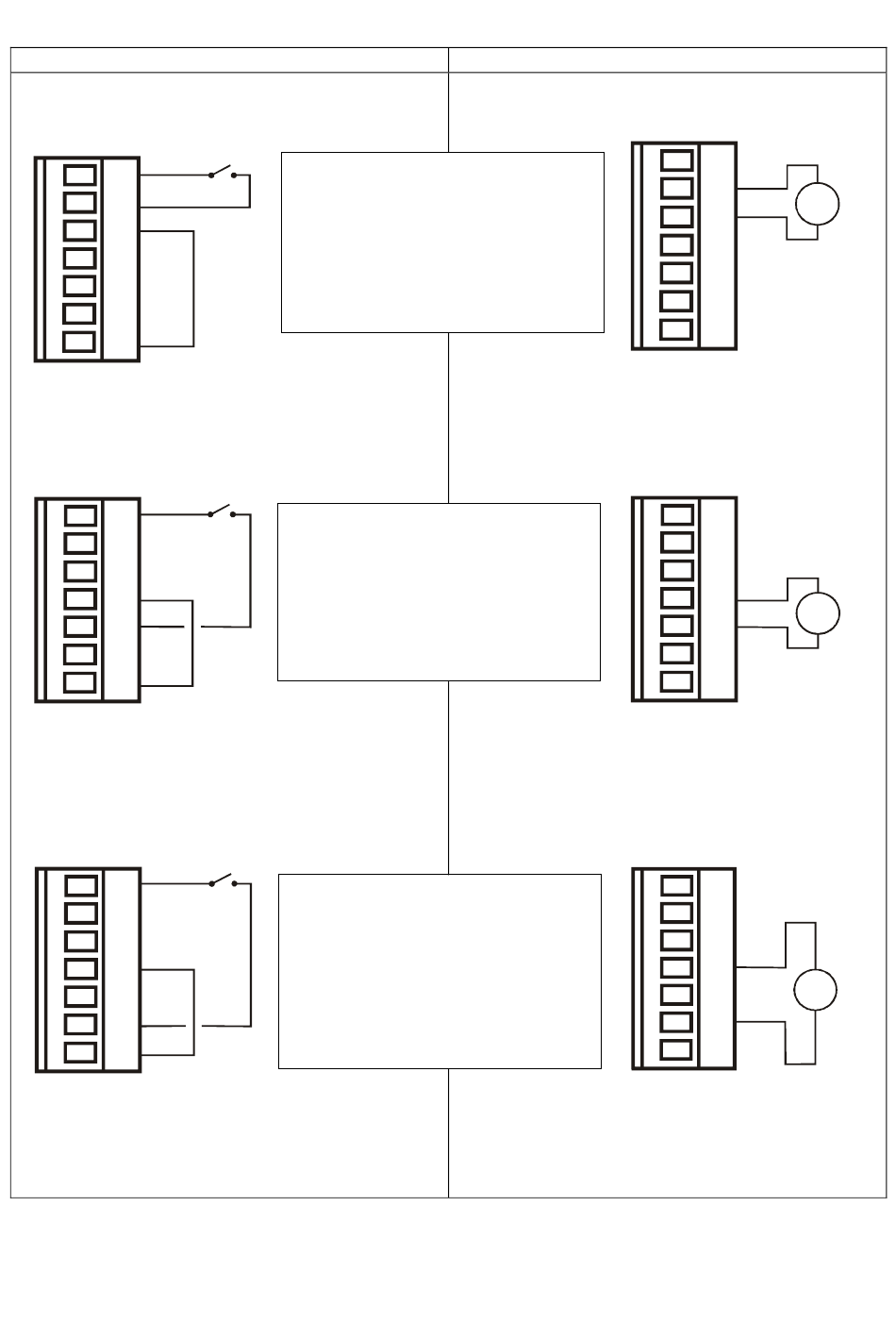

Figure 2: Input Connection - DAB ACTIVE DRIVER PLUS M/T 1.0 Installations- Und Wartungsanleitungen

Control with clean contact
M/T ‐> J6
T/T ‐> J7
Clean contact
7
6
5
4
3
2
1
Jumper
M/T ‐> J6
T/T ‐> J7
Clean contact
7
6
5
4
3
2
1
Jumper
M/T ‐> J6
T/T ‐> J7
Clean contact
7
6
5
4
3
2
1
Jumper
ENGLISH
Ex. Use of IN 1
When IN 1 is activated the pump
blocks and the "F1" signal is given
ex. IN 1 could be connected to a
float
Ex. Use of IN 2
When IN 2 is activated the regulating
pressure becomes "P1"
(switching active setpoint:
SP or P1)
Ex. Use of IN 3
When IN 3 is activated the pump
blocks and the "F3" signal is given
ex. IN 3 could be connected to a
safety pressure switch with manual
reset

Figure 2: Input connection

60
Control with external voltage
M/T ‐> J6
T/T ‐> J7
7
6
5
4
3
2
1
M/T ‐> J6
T/T ‐> J7
7
6
5
4
3
2
1
M/T ‐> J6
T/T ‐> J7
7
6
5
4
3
2
1
AC/DC
Power supply
direct voltage
( Max. 36V) or
alternating voltage
(Max. 24Vrms)
AC/DC
Power supply
direct voltage
( Max. 36V) or
alternating voltage
(Max. 24Vrms)
AC/DC
Power supply
direct voltage
( Max. 36V) or
alternating voltage
(Max. 24Vrms)
