I I n n s s t t a a l l l l i i n n g g t t h h e e 2 2 5 5 5 5 M M M M f f l l o o o o r r t t r r a a c c k k ( ( M M o o d d e e l l 6 6 3 3 8 8 6 6 a a n n d d 6 6 3 3 8 8 8 8 ) )
The Stryker Cot Fastener System for the floor track mounting Model 6386 and 6388 is compatible only with cots that
conform to the floor track mounting installation specifications listed below.
1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.
N N o o t t e e - - Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of the
mounting brackets. If specifications do not apply, the installer should be certain that there is adequate clearance for
proper patient access, traction splint projection, rear door closure, etc.
2. Using the dimensions shown in Figure 10, identify where the floor tracks will attach.
3. Attach the floor tracks as specified by the track manufacturer.
N N o o t t e e
• The centerline of the cot must be parallel to the vehicle wall.
• The tracks should extend at least 200 mm beyond each locking position in both directions.
AC
AD
I I n n s s t t a a l l l l i i n n g g t t h h e e 3 3 0 0 0 0 M M M M f f l l o o o o r r t t r r a a c c k k ( ( M M o o d d e e l l 6 6 3 3 8 8 7 7 a a n n d d 6 6 3 3 8 8 9 9 ) )
The Stryker Cot Fastener System for the floor track mounting Model 6387 and 6389 is compatible only with cots that
conform to the floor track mounting installation specifications listed below.
1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.
N N o o t t e e - - Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of the
mounting brackets. If specifications do not apply, the installer should be certain that there is adequate clearance for
proper patient access, traction splint projection, rear door closure, etc.
2. Using the dimensions shown in Figure 11, identify where the floor tracks will attach.
3. Attach the floor tracks as specified by the track manufacturer.
N N o o t t e e
• The centerline of the cot must be parallel to the vehicle wall.
• The tracks should extend at least 200 mm beyond each locking position in both directions.
EN
12
1244.6 MM
AC

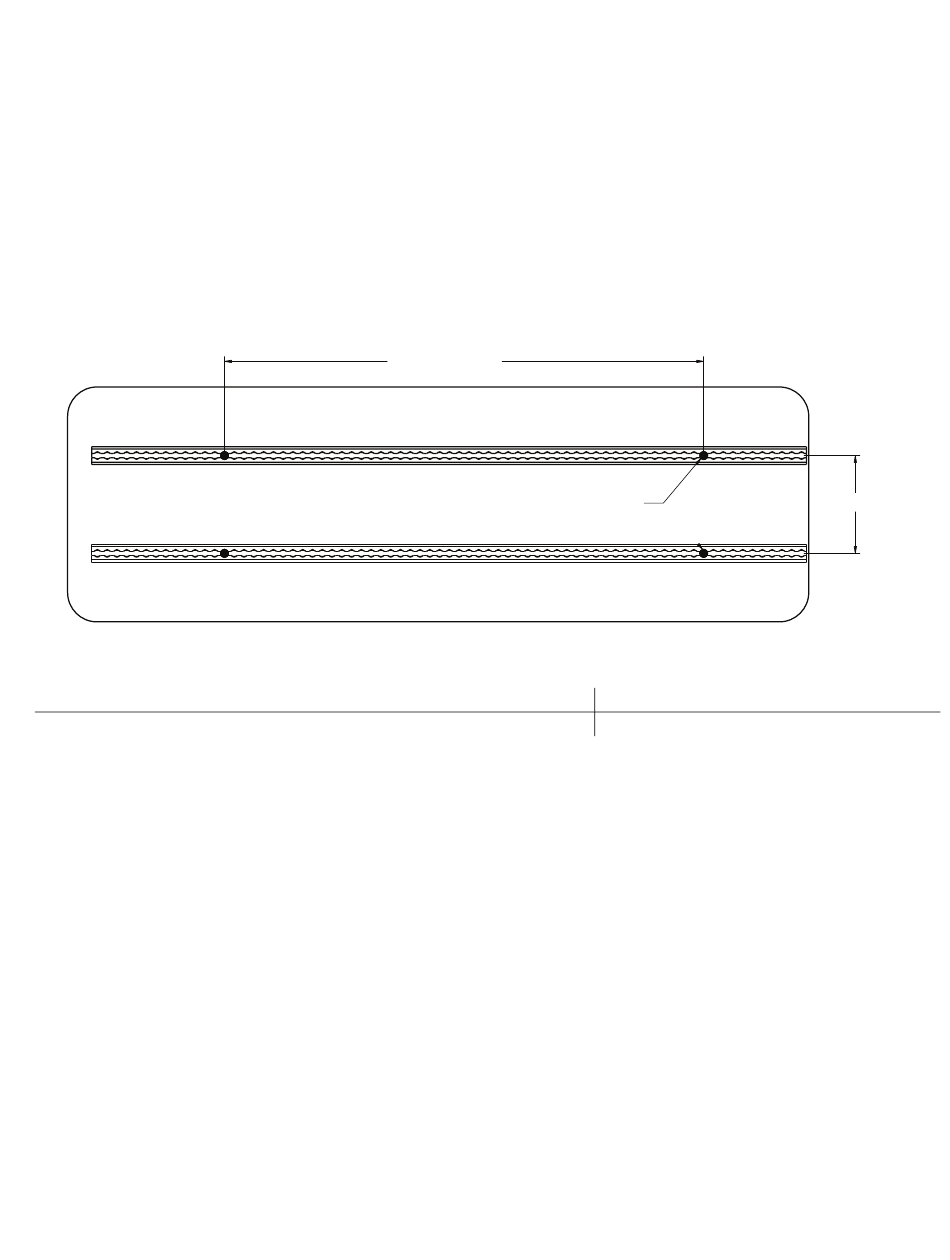

F F i i g g u u r r e e 1 1 0 0 – – F F l l o o o o r r t t r r a a c c k k i i n n s s t t a a l l l l a a t t i i o o n n l l o o c c a a t t i i o o n n s s
AD
49 positions
Locks use indicated track positions
6385-109-005 Rev A.0
255 MM
