6 Putting into operation
6.3.1 Adjusting the anti-spatter fluid
1 2
Injection
opening
9
8
1 Welding torch
2 Rubber seal for the gas nozzle
3 Gas nozzle

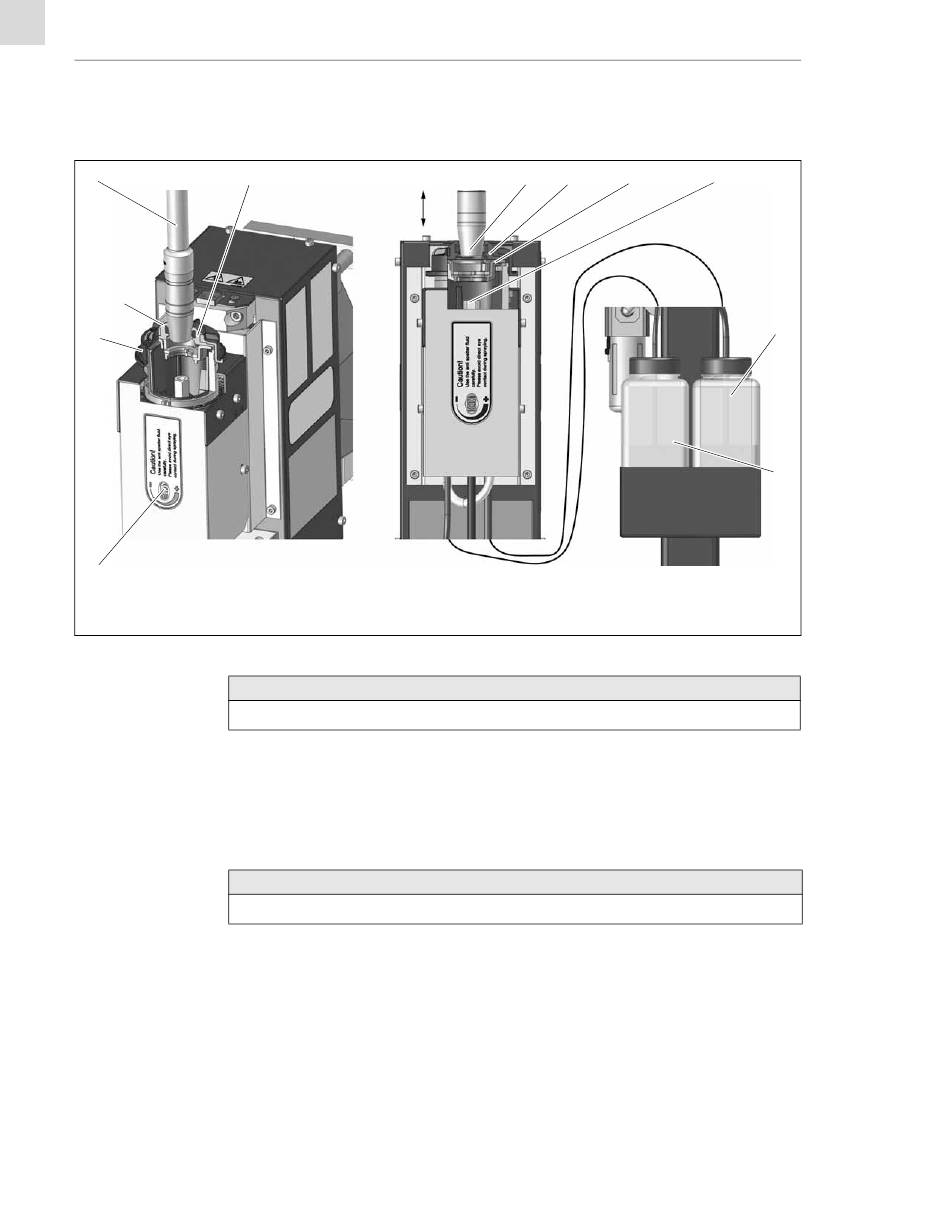

Fig. 12
Adjusting the anti-spatter fluid
NOTICE
• Ensure that the welding torch/gas nozzle is positioned concentrically over the injection unit.
1 Move the welding torch (1) over the injection opening.
2 Move the welding torch (1) slowly downward (in the direction of the arrow). This 'opens' the rubber seal.
The welding torch's immersion depth is limited by the injection unit's stroke.
3 Move the front side of the gas nozzle against the thrust ring.
Move the welding torch further down to activate the injection pulse.
NOTICE
• Note the max. stroke of the injection unit (see Fig. 13 Injection unit stroke movement on page EN-21)
Deactivate injection pulse
Max. 6 mm
Activate injection pulse
4 Thrust ring
5 Injection nozzle
6 Return flow bottle
3 2 4
7 Anti-spatter fluid bottle (full)
8 Adjusting screw (anti-spatter fluid volume control)
9 Cover
TCS-Compact
5
6
7
