Abicor Binzel TCS-Compact Betriebsanleitung Seite 57

TCS-Compact

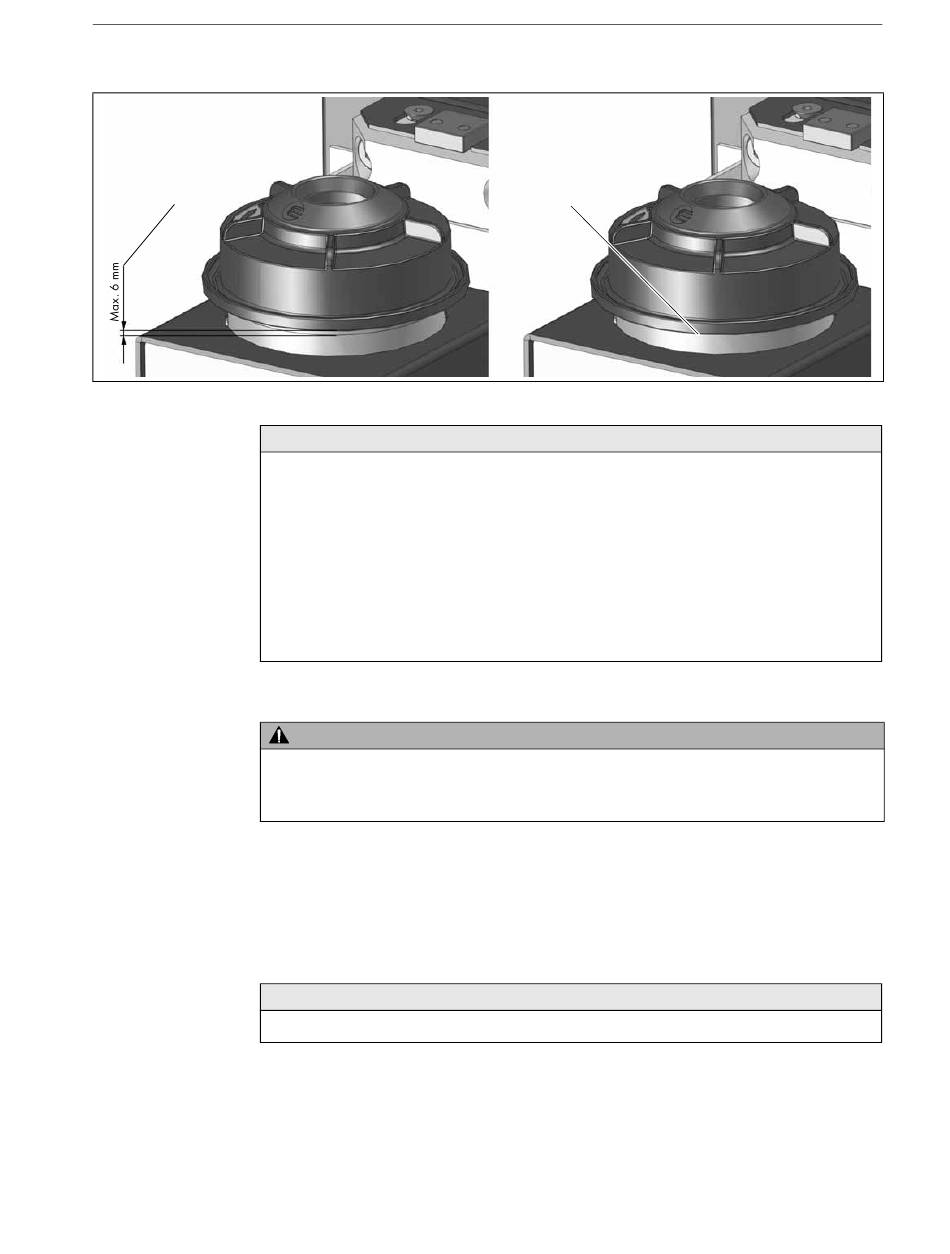

Injection unit not activated
(max. stroke movement)
Fig. 13
Injection unit stroke movement
NOTICE
• Note the max. stroke movement for injection.
• The max. stroke travel (traverse movement of the welding torch) should not exceed 6 mm.
• We recommend a maximum injection pulse of 3 s.
• Use the adjustment screw (8) to adjust the amount of anti-spatter fluid per injection pulse.
• The anti-spatter fluid's residual oil from the injection unit is collected in the return flow bottle (6) and
You can also activate the device manually via the cover in order to set the anti-spatter fluid dosage.
Damage to the eyes
When injecting the anti-spatter fluid, spray mist can form that can damage the eyes.
• Always wear safety goggles when manually setting the anti-spatter fluid.
• An injection pulse is activated by lightly pressing down the cover.
• You can assess the amount of the atomized anti-spatter fluid on the basis of the spray mist produced.
• The injection pulse should be activated for max. 2 sec.
• Use the adjusting screw (8) to increase or reduce the amount of anti-spatter fluid.
NOTICE
• It only takes a small amount of anti-spatter fluid to achieve the desired effect.
The injection pulse is reset when moving out of the injection unit.
Fig. 12 Adjusting the anti-spatter fluid on page EN-20
can be reused once any dirt particles have been removed.
Fig. 12 Adjusting the anti-spatter fluid on page EN-20
WARNING
Fig. 12 Adjusting the anti-spatter fluid on page EN-20
Injection unit
activated
6 Putting into operation
