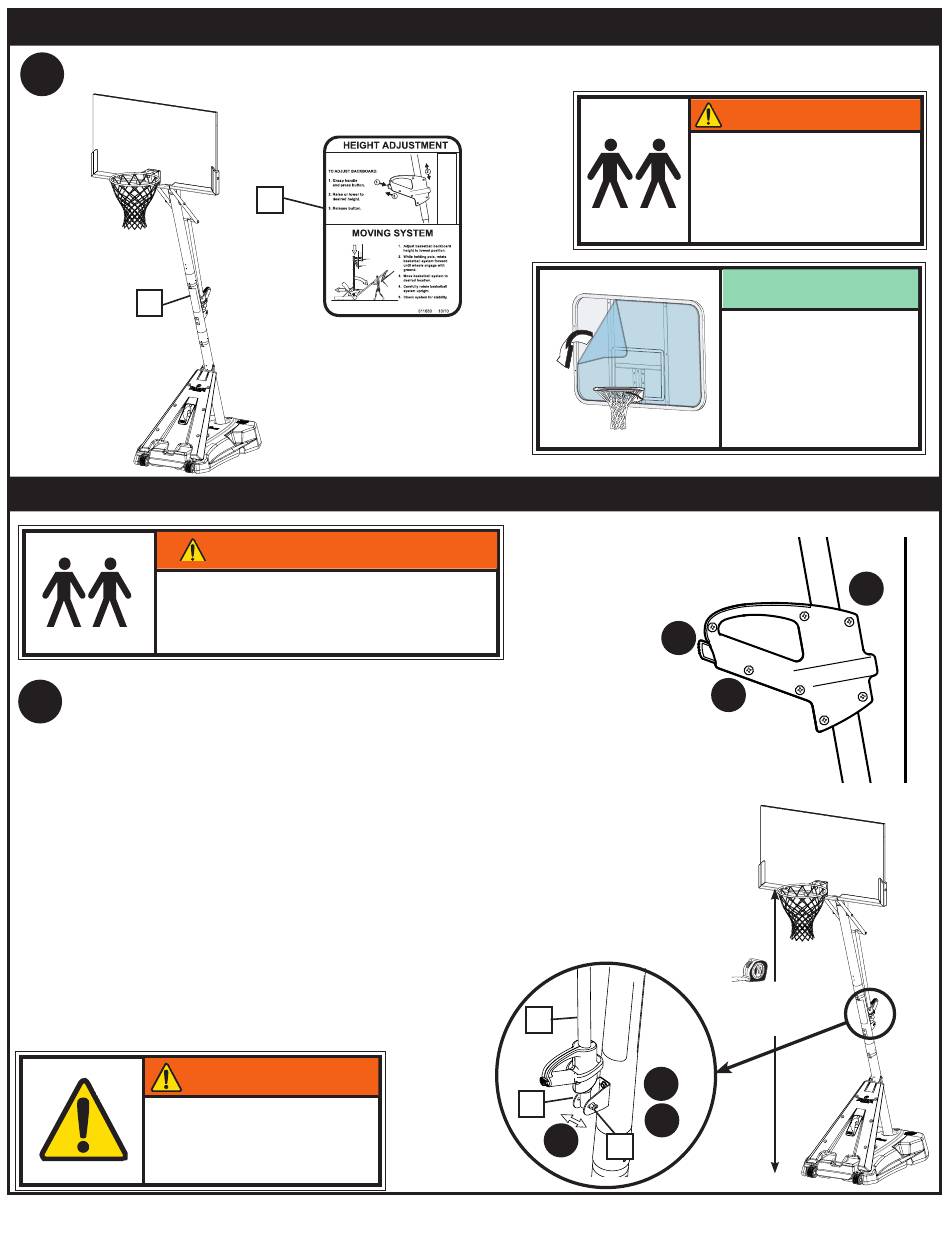

SECTION C: APPLY HEIGHT ADJUSTMENT AND MOVING LABEL
1.
Apply height adjustment and moving label (46) to front of pole as shown.
46
TWO CAPABLE ADULTS REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
A. Grasp handle and press button to disengage internal locking
2.
pin.
B. Slightly move handle and release button.
C. Raise goal to highest setting (10 feet). The locking pin will
automatically engage into its internal index hole.
NOTE: Depending on starting position, additional adjustments
may be needed to achieve the highest setting.
D. While backboard is supported by one adult, a second adult
should SLIGHTLY loosen hex nut (14) and bolt (52).
E. By sliding lift (3) up or downin bracket slot, adjust goal height
to 120 inches (10 feet). NOTE: A tape measure or other means
of measurement will need to be utilized.
F. While backboard is supported at the height of 10 feet, tighten
hex nut (14) and bolt (52) tight enough to insure the goal height
is secure.
Your basketball system should now be adjusted to the
regulation goal height of 10 feet and can now be adjusted
to lower settings using steps A thru C above.
WARNING!
DO NOT ALLOW
CHILDREN TO
ADJUST HEIGHT.
46
HEIGHT ADJUSTMENT INSTRUCTIONS
WARNING!
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
1. Grasp handle
and press button.
2. Raise or lower to
desired height.
3. Release button.
MOVING SYSTEM
3
52
E.
14
30
WARNING!
TWO CAPABLE ADULTS
REQUIRED FOR THIS
PROCEDURE. FAILURE TO
FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
NOTE:
Peel protective film
from surface of
acrylic backboard
prior to use.
A.
B.
10 ft.
(3.05 m)
D.
F.
511680
C.
10/10
