5.

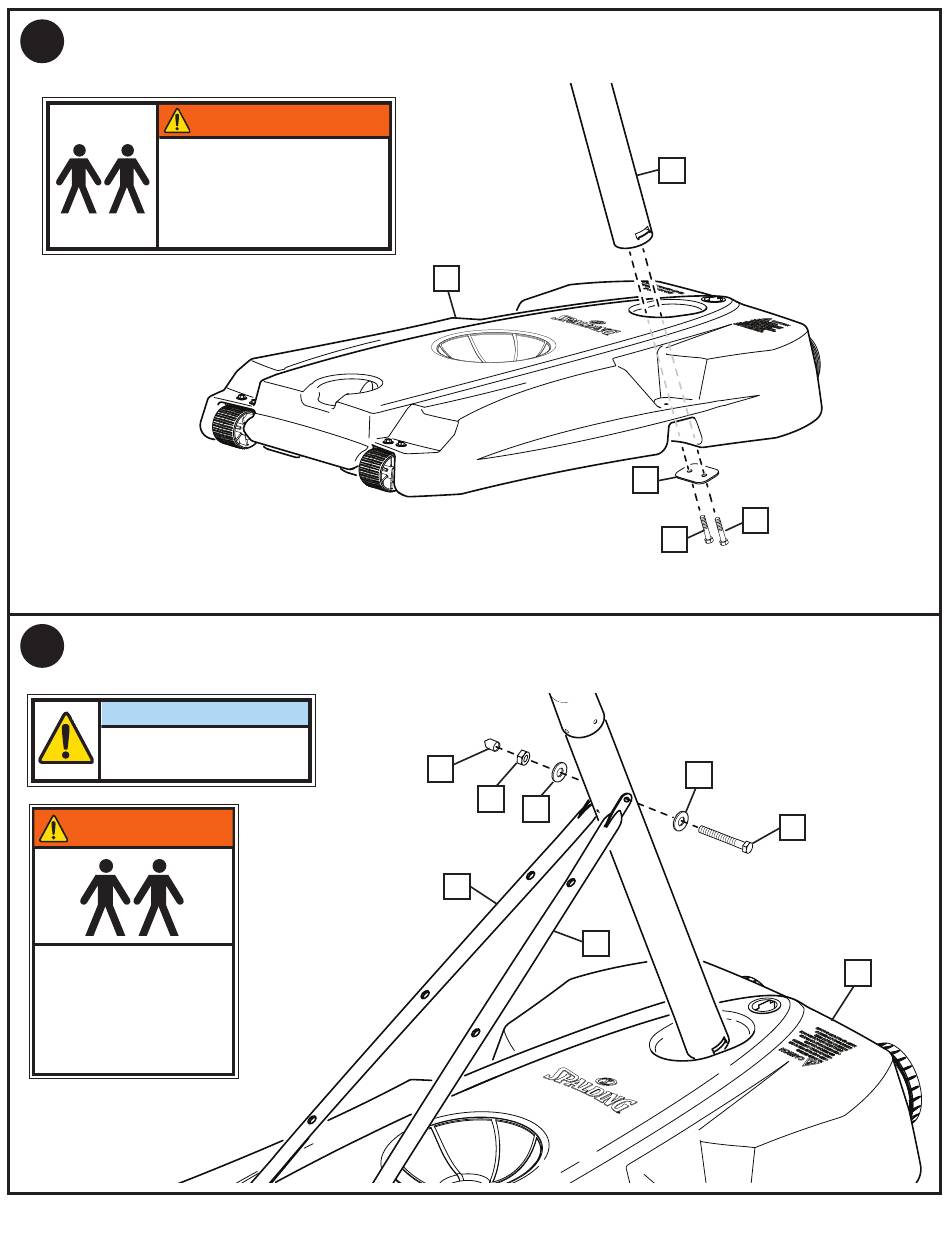

Attach pole (6) assembly to base (1) as shown. Secure pole assembly to base using bolts (50) and
pole mounting bracket (49) as shown.
TWO CAPABLE ADULTS
REQUIRED FOR THIS
PROCEDURE. FAILURE TO
FOLLOW THIS WARNING COULD
RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
6.
Secure base struts (2) to pole using bolt (12), washers (51) and nut (10) as shown.
Place cover (53) over exposed end of bolt (12) as shown.
IMPORTANT!
DO NOT TIGHTEN
COMPLETELY.
WARNING!
TWO CAPABLE ADULTS
REQUIRED FOR THIS
PROCEDURE. FAILURE TO
FOLLOW THIS WARNING
COULD RESULT IN
SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
WARNING!
1
53
10
51
2
2
16
6
49
50
50
51
12
1
