4.

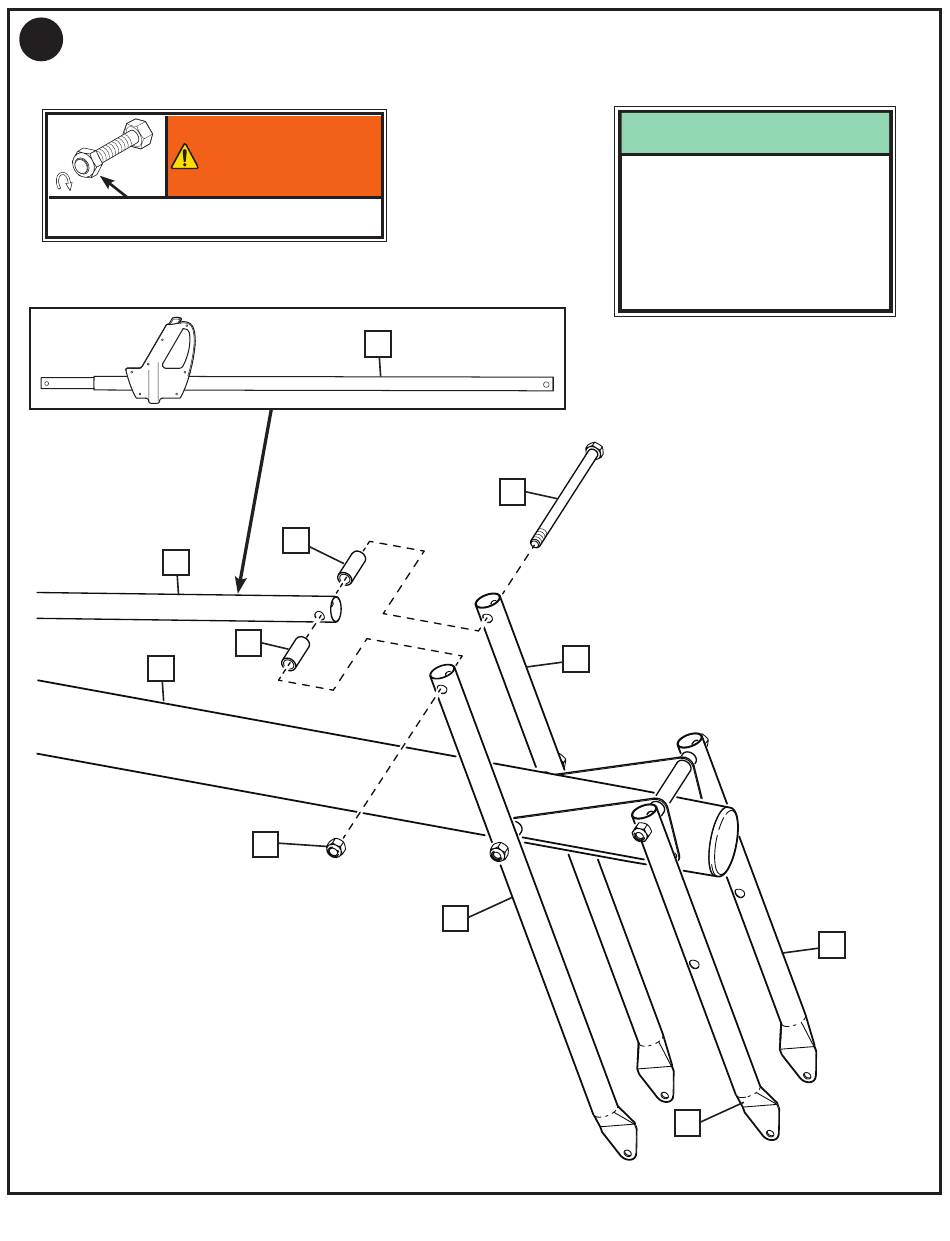

Install handle lift assembly to lower elevator tubes (32) using bolt (29), spacers (36), and nut
(31) as shown.
WARNING!
TIGHTEN BOLT (29) IN LOCK NUT (31) UNTIL
FLUSH (EVEN) WITH LOCK NUT'S OUTER EDGE.
3
4
3
36
36
31
29
32
32
23
NOTE:
Before going on to
next step,
make sure
adjustable system
assembly is set to the
10' (3.05 m) setting.
35
06/09
35
ID# M6611642
