SPALDING HERCULES 52" Bedienungs Und Installationsanleitung Handbuch Seite 18

.
9

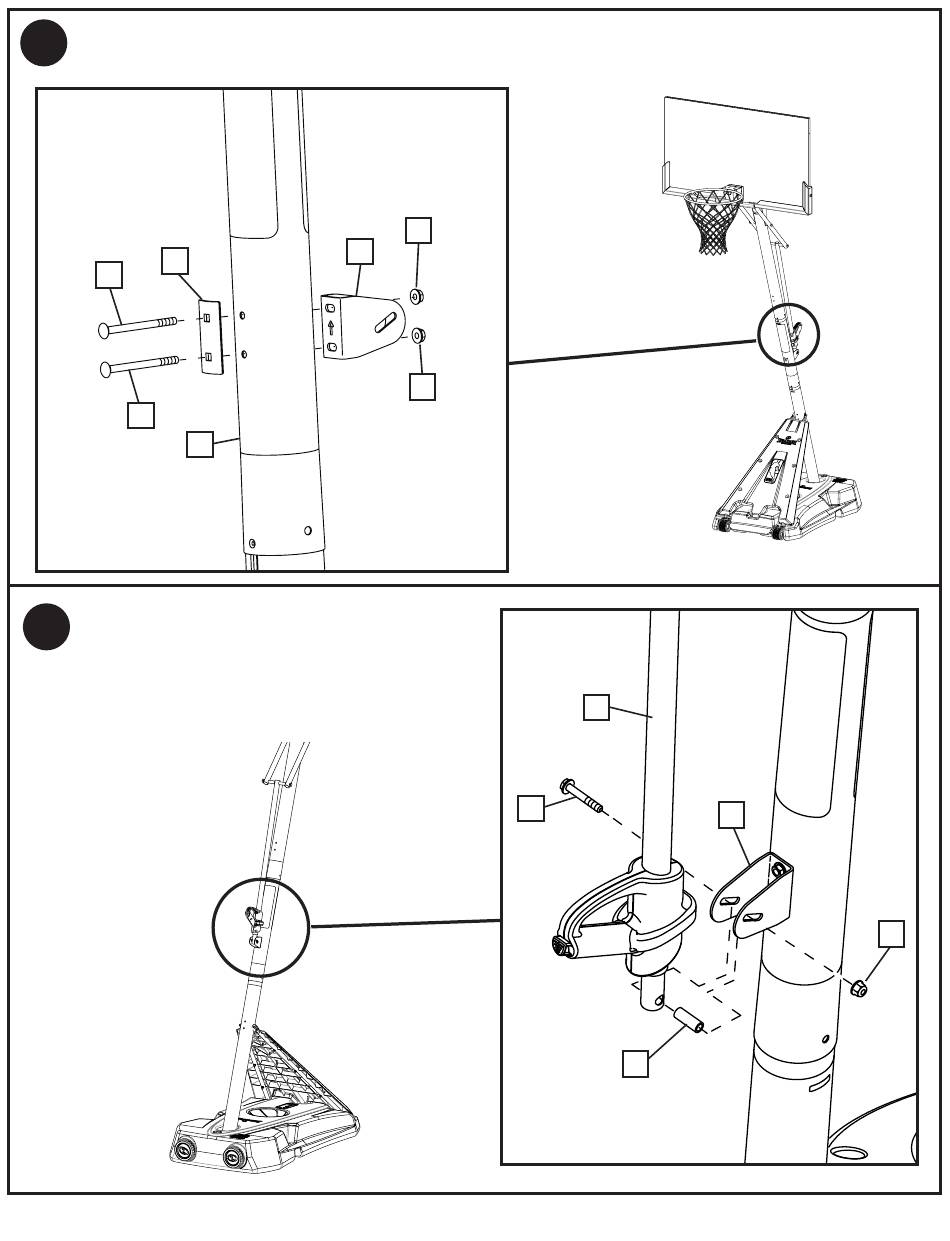

Install pole mount bracket (15) and reinforcement bracket (42) with carriage bolts (16) as shown.
Tighten flange nuts (14) completely.
42
16
16
6
Install lift handle assembly (3) to previously
.
10
installed pole mount bracket (15) as
shown. Tighten hex nut (14) completely
with bolt (52).
14
15
14
52
18
3
15
27
14
