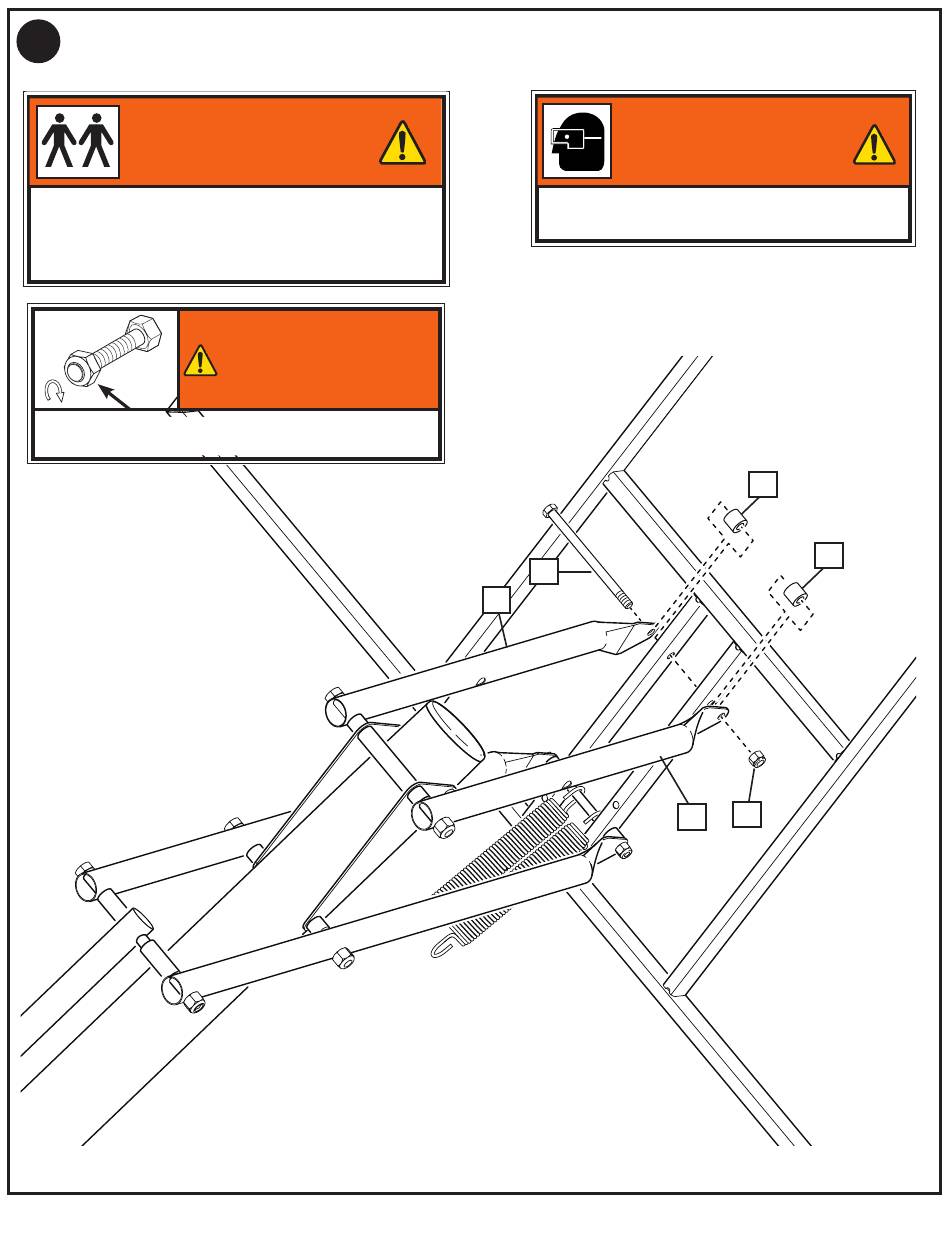

Assemble upper elevator tubes (35) to backboard using bolt (59), plastic spacers (26),
6.
and nut (11) as shown.
WARNING!
TWO PEOPLE REQUIRED FOR THIS
PROCEDURE. FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
TIGHTEN BOLT (29) IN LOCK NUT (31) UNTIL
FLUSH (EVEN) WITH LOCK NUT'S OUTER EDGE.
WARNING!
USE EYE PROTECTION WHEN
INSTALLING SPRINGS.
59
35
25
WARNING!
26
26
11
35
