Lower Board to lowest setting before standing the system upright.
Prior to assembly peel protective film from surface of acrylic backboard.
Insert T-bolt (55) into Slam Jam bracket (54) then, attach that assembly to board using
bolts (44) and nuts (14).
54

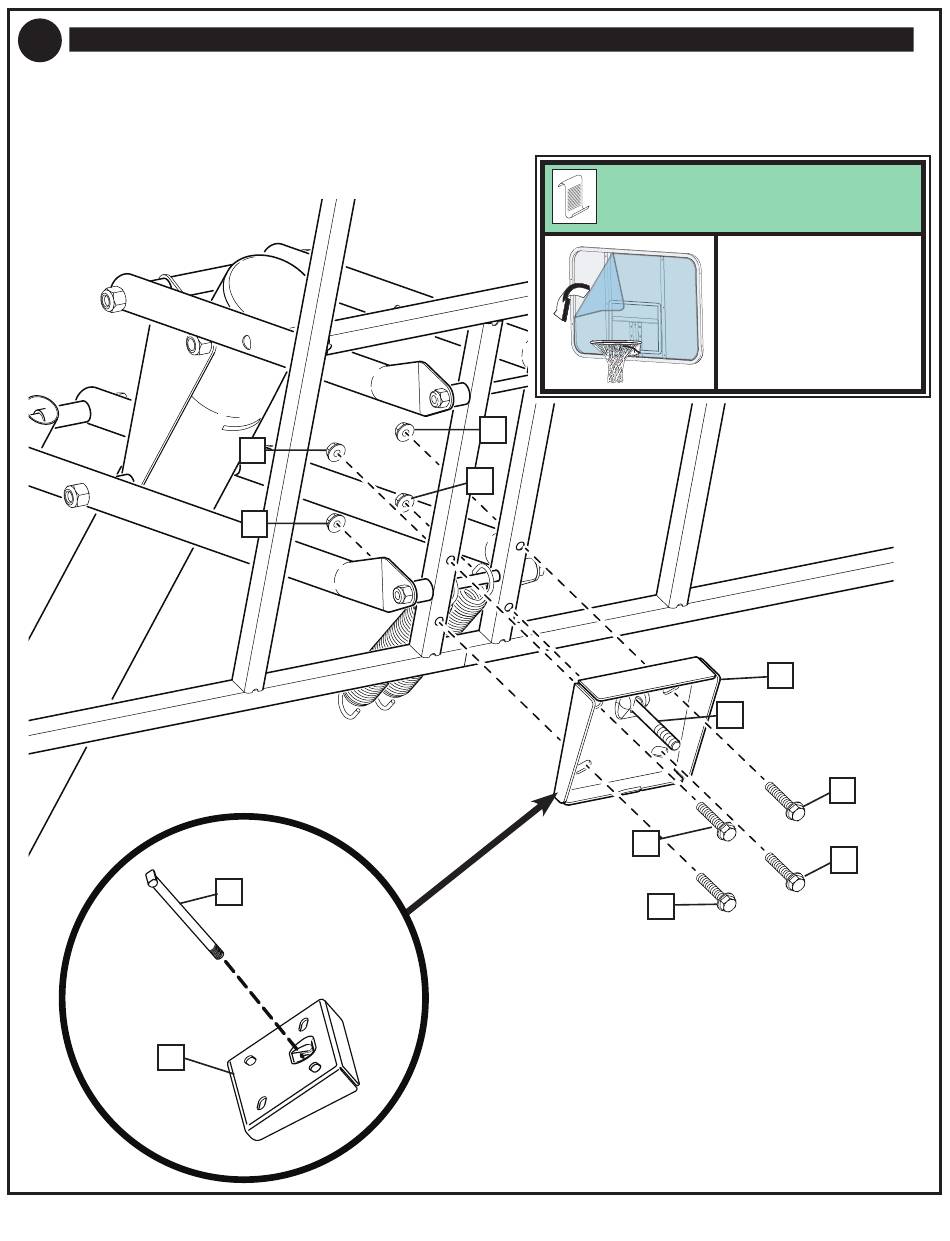

Install Slam Jam Rim to Backboard
14
14
55
14
14
44
27
NOTE:
PEEL PROTECTIVE
FILM FROM SURFACE
OF ACRYLIC
BACKBOARD.
54
55
44
06/09
ID# M6611642
44
44
