6.5 Identification

6.5.1 Type key
The pump can be identified by the type designation
stated on the pump nameplate.
Example: DPK.15.80.22.5.0D
Code Description
DPK Drainage pump
[ ] Semi-open impeller
V Vortex impeller
Maximum solids
15
size [mm]
Nominal diameter of
80
pump outlet [mm]
Output power P2
22
1
22 = 2.2 kW
[ ] Standard
S Sensor(s)
2 2-pole
4 4-pole
5 50 Hz
6 60 Hz
0D 380-415 V, DOL
1D 380-415 V, Y/D
0E 220-240 V, DOL
1E 220-240 V, Y/D
Z Custom-built variant Customisation
1
Exception: Code 075 = 0.75 kW
Explanation
Pump type
Impeller type
Free passage
Pump outlet
Power [kW]
Equipment
Number of poles
Frequency [Hz]
Voltage and starting
method

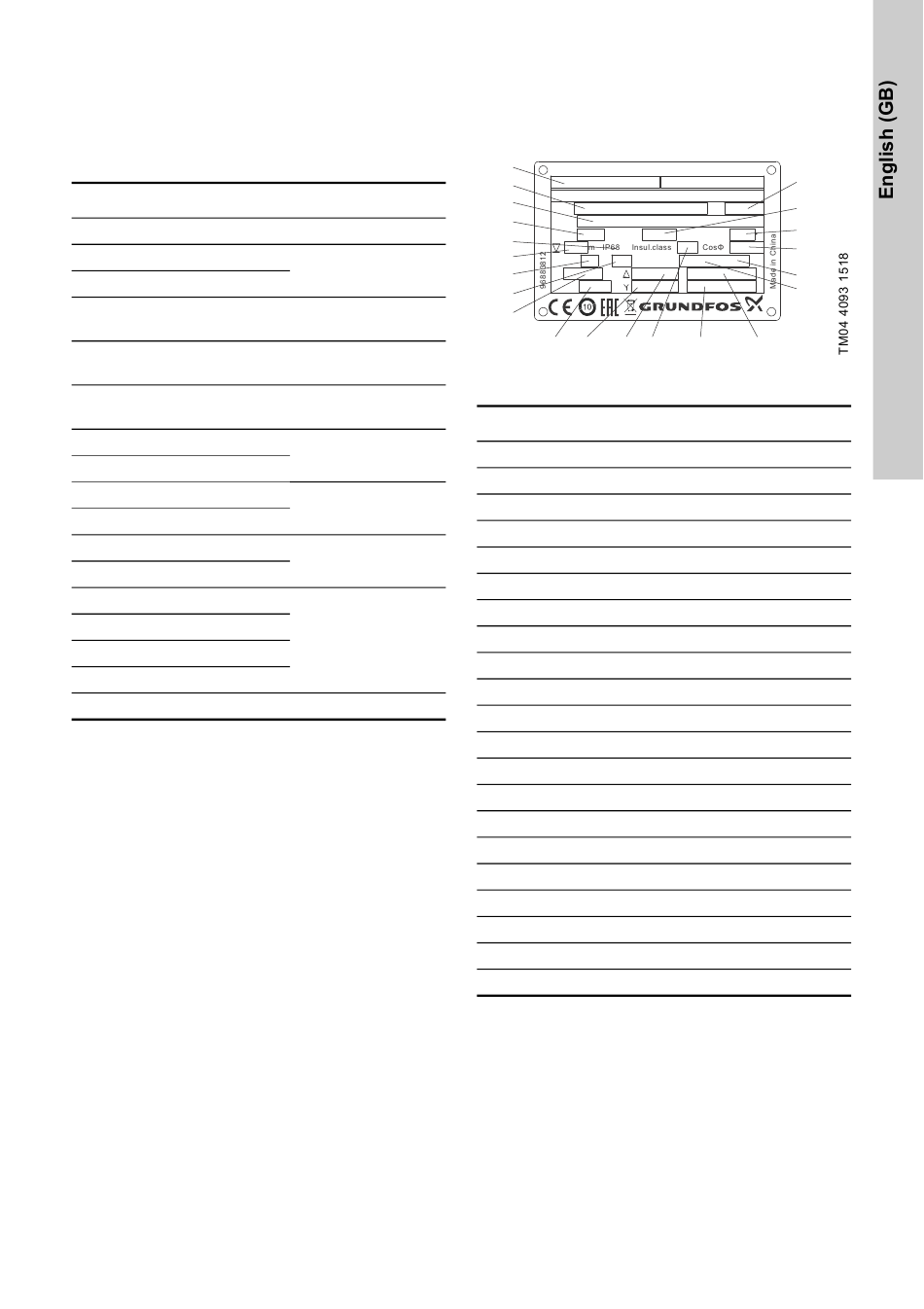

6.5.2 Nameplate

Fix the extra nameplate supplied with the pump at
the installation site or keep it in the cover of this
booklet.
1
2
3
Type
4
Model
Hmax m Qmax
5
6
Motor ~ Hz P1/P2
7 -1
n min
Weight kg
8
9
10 11 12 13
Fig. 11 Nameplate
Pos. Description
1 Notified body
2 Type designation
3 Product number and serial number
4 Maximum head [m]
5 Enclosure class
6 Maximum installation depth [m]
7 Number of phases
8 Frequency [Hz]
-1
9 Speed [min ]
10 Weight [kg]
11 Rated voltage [V] Star
12 Rated voltage [V] Delta
13 Insulation class
14 Rated current [A] Star
15 Rated current [A] Delta
16 Motor input power P1 [kW]
17 Motor output power P2 [kW]
18 Power factor
19 Maximum liquid temperature [°C]
20 Maximum flow [m
21 Production code, year and week
21
20
P.c.
19
l/s Tmax. : c
18
kW
17
V A
A
V
16
DK-8850 Bjerringbro Denmark
14 15
3
/h]
