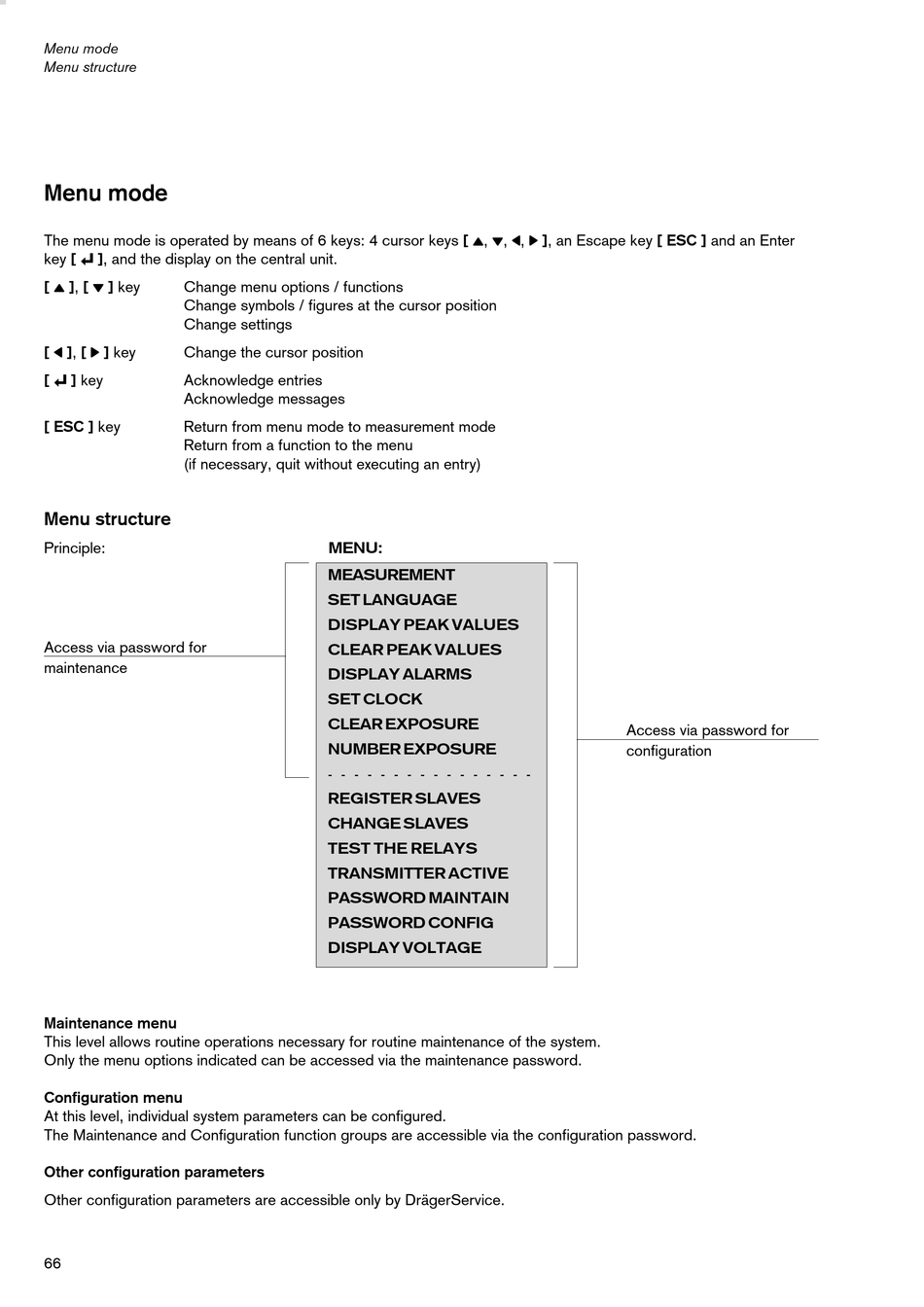

Menu mode

Menu structure

Menu mode
The menu mode is operated by means of 6 keys: 4 cursor keys [ q, l, k, j ], an Escape key [ ESC ] and an Enter
u
key [ ], and the display on the central unit.
[ q ], [ l ] key Change menu options / functions
Change symbols / figures at the cursor position
Change settings
[ k ], [ j ] key Change the cursor position
u
[ ] key Acknowledge entries
Acknowledge messages
[ ESC ] key Return from menu mode to measurement mode
Return from a function to the menu
(if necessary, quit without executing an entry)
Menu structure
Principle:
Access via password for
maintenance
Maintenance menu
This level allows routine operations necessary for routine maintenance of the system.
Only the menu options indicated can be accessed via the maintenance password.
Configuration menu
At this level, individual system parameters can be configured.
The Maintenance and Configuration function groups are accessible via the configuration password.
Other configuration parameters
Other configuration parameters are accessible only by DrägerService.
66
MENU:
MEASUREMENT
SET LANGUAGE
DISPLAY PEAK VALUES
CLEAR PEAK VALUES
DISPLAY ALARMS
SET CLOCK
CLEAR EXPOSURE
NUMBER EXPOSURE
- - - - - - - - - - - - - - - -
REGISTER SLAVES
CHANGE SLAVES
TEST THE RELAYS
TRANSMITTER ACTIVE
PASSWORD MAINTAIN
PASSWORD CONFIG
DISPLAY VOLTAGE
Access via password for
configuration
