comatec AQWL Installations- Und Wartungshandbuch Seite 53

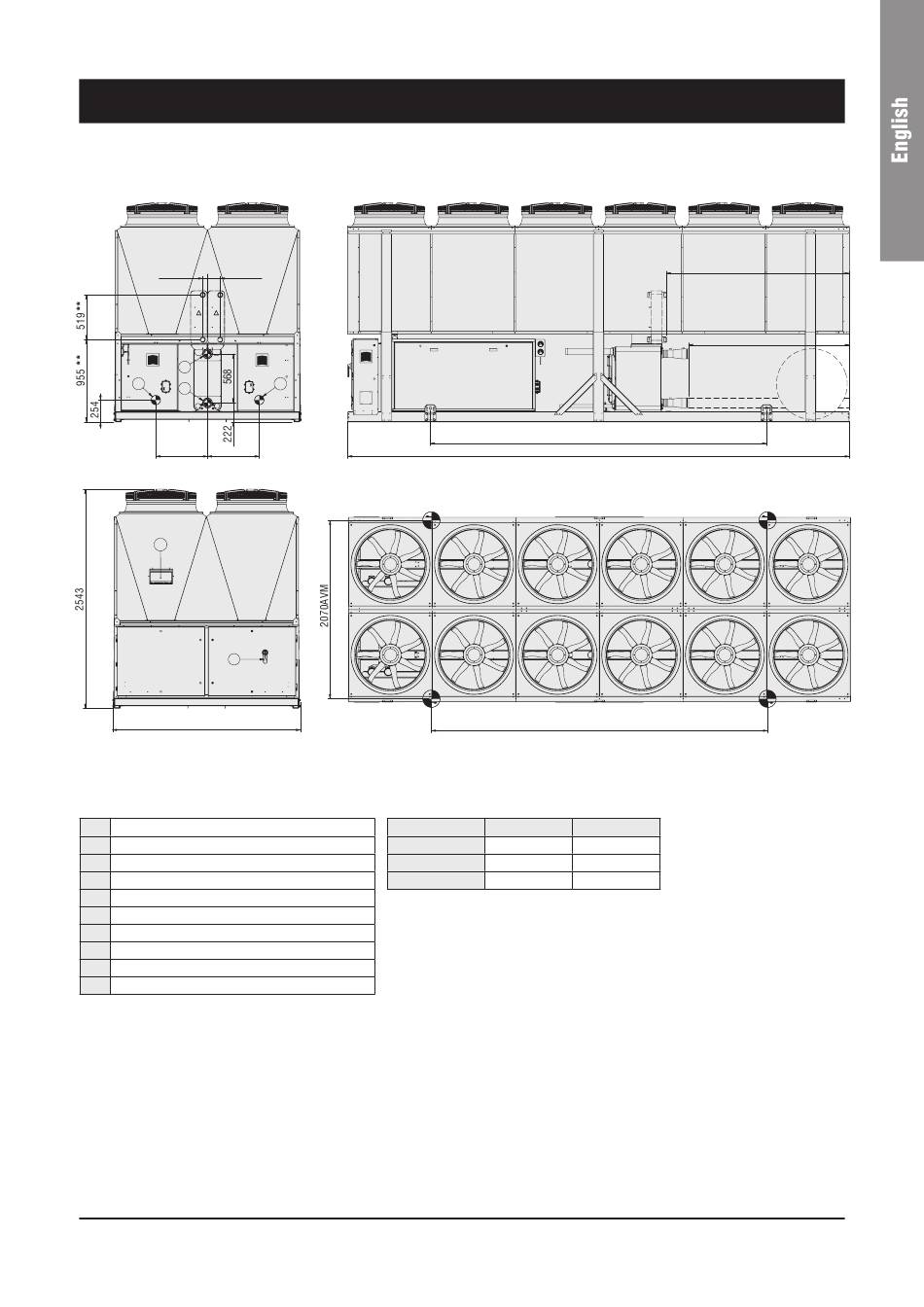

8.6 Dimensional drawings - AQWL/AQWH 2106 & 2406
C L
55 ** 147 **
B
A
E
600 600
M
L
2180
A Water connection 4" Victaulic Ø104 mm
B Water connection 4" Victaulic Ø104 mm
C Water connection 4" Victaulic Ø104 mm
E Water connection 4" Victaulic Ø104 mm
F Electrical power supply
I Gauge kit (accessory)
L Main switch
M Control keypad / Display
N Optional desuperheater water inlet Ø2" gas **
O Optional desuperheater water outlet Ø2" gas **
8 - Technical Data (continued)
C
Hydraulic option
STD
1P/2P
Water tank
3900 LIFT
5821
3900 AVM
Water in Water out
B E
A E
C E
51
2123 **
1864
