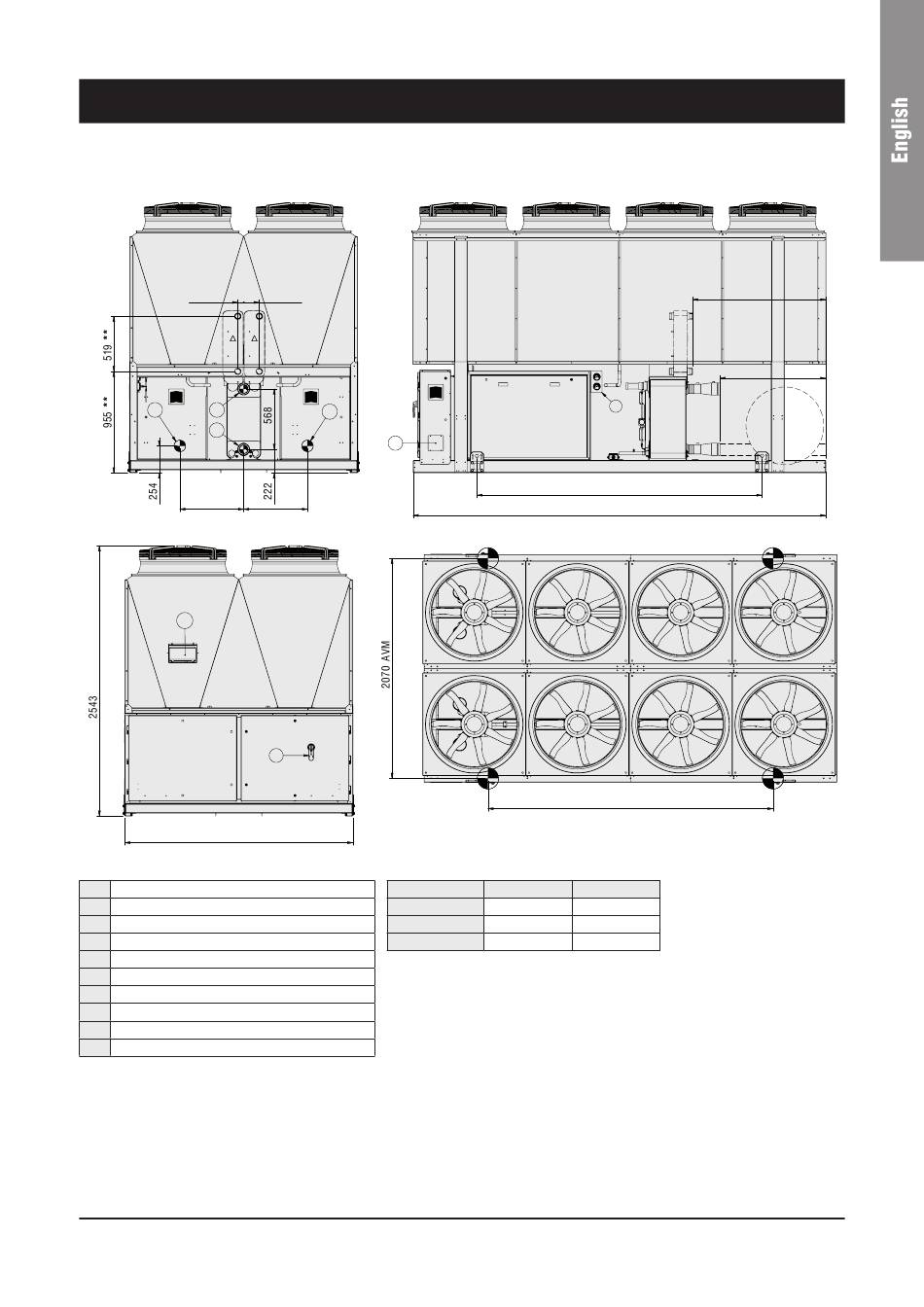

8.6 Dimensional drawings - AQWL/AQWH 1404 & 1604
C L
55 **
A B
E
600
M
2146
A Water connection 4" Victaulic Ø104 mm
B Water connection 4" Victaulic Ø104 mm
C Water connection 4" Victaulic Ø104 mm
E Water connection 4" Victaulic Ø104 mm
F Electrical power supply
I Gauge kit (accessory)
L Main switch
M Control keypad / Display
N Optional desuperheater water inlet Ø2" gas **
O Optional desuperheater water outlet Ø2" gas **
8 - Technical Data (continued)
147 **
C
F
600
L
Hydraulic option
STD
1P/2P
Water tank
I
2680 LIFT
3881
2680 AVM
Water in Water out
B E
A E
C E
49
1253 **
994
