Refrigerators are supplied assembled (apart from standard
antivibrating rubber supports, that will be installed on site). The
equipment are full of refrigerant and oil, in the quantity required for a
proper operation.

3.1 Inspection

When the unit is delivered, it is recommended to check it carefully
and to identify any damage occurred during transportation. The
goods are shipped ex-factory, at the buyer's risk. Check that the
delivery includes all the components listed in the order.
In case of damage, note it down on the carrier's delivery note and
issue a claim according to the instructions provided in the delivery
note.
In the presence of any serious damage, that does not affect the
surface only, it is recommended to inform manufacturer immediately.
Please note that manufacturer may not be held liable for any damage
to the equipment during transportation, even though the carrier has
been appointed by the factory.

3.2 Lifting

The unit must be lifted by using the hooks inserted into the relevant
eyebolts (see the figure).

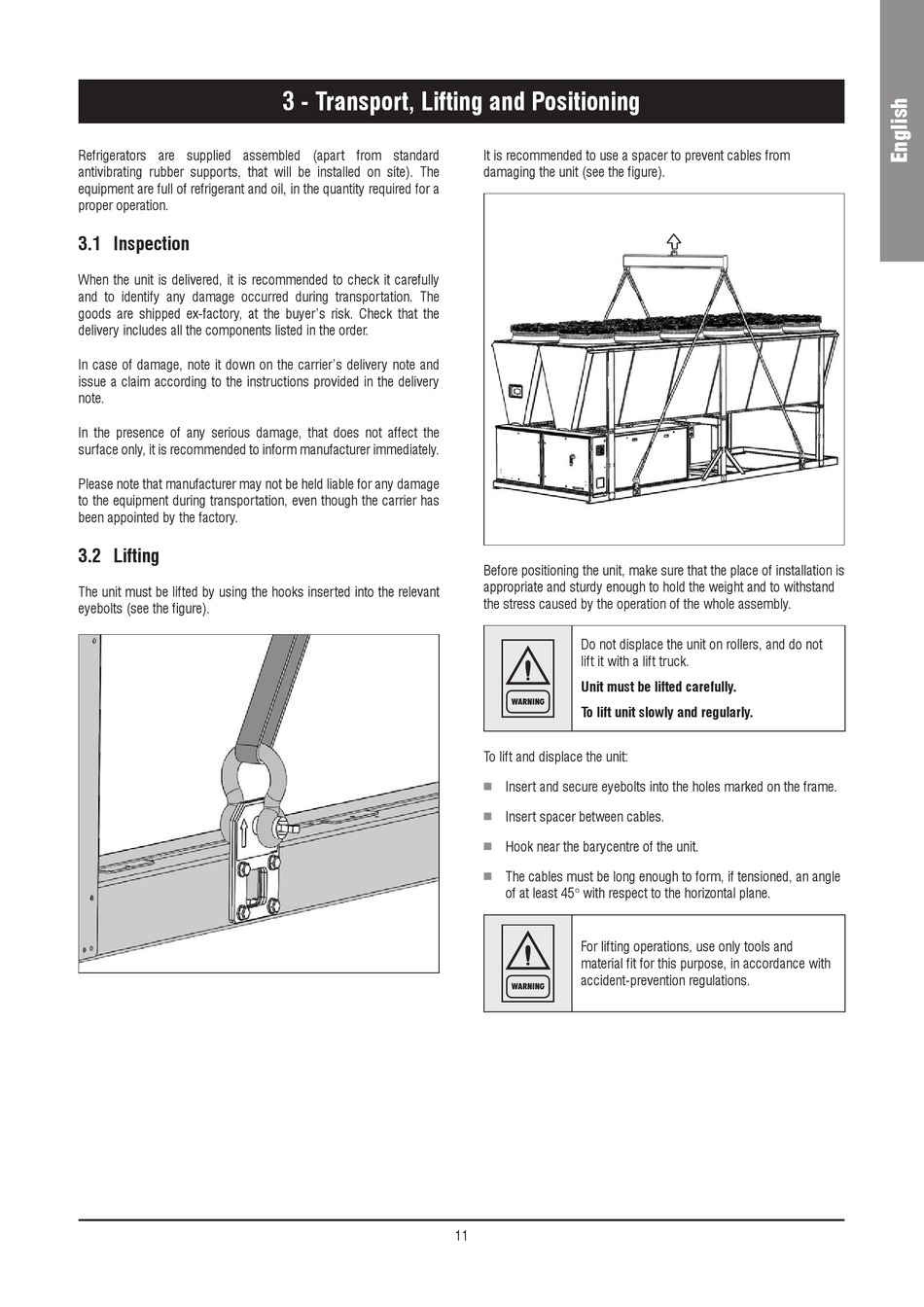

3 - Transport, Lifting and Positioning

11
It is recommended to use a spacer to prevent cables from
damaging the unit (see the figure).
Before positioning the unit, make sure that the place of installation is
appropriate and sturdy enough to hold the weight and to withstand
the stress caused by the operation of the whole assembly.
Do not displace the unit on rollers, and do not
lift it with a lift truck.
Unit must be lifted carefully.
WARNING
To lift unit slowly and regularly.
To lift and displace the unit:
Insert and secure eyebolts into the holes marked on the frame.
n
Insert spacer between cables.
n
Hook near the barycentre of the unit.
n
The cables must be long enough to form, if tensioned, an angle
n
of at least 45° with respect to the horizontal plane.
For lifting operations, use only tools and
material fit for this purpose, in accordance with
accident-prevention regulations.
WARNING
