4.8 Connecting plate-type evaporator
temperature sensors

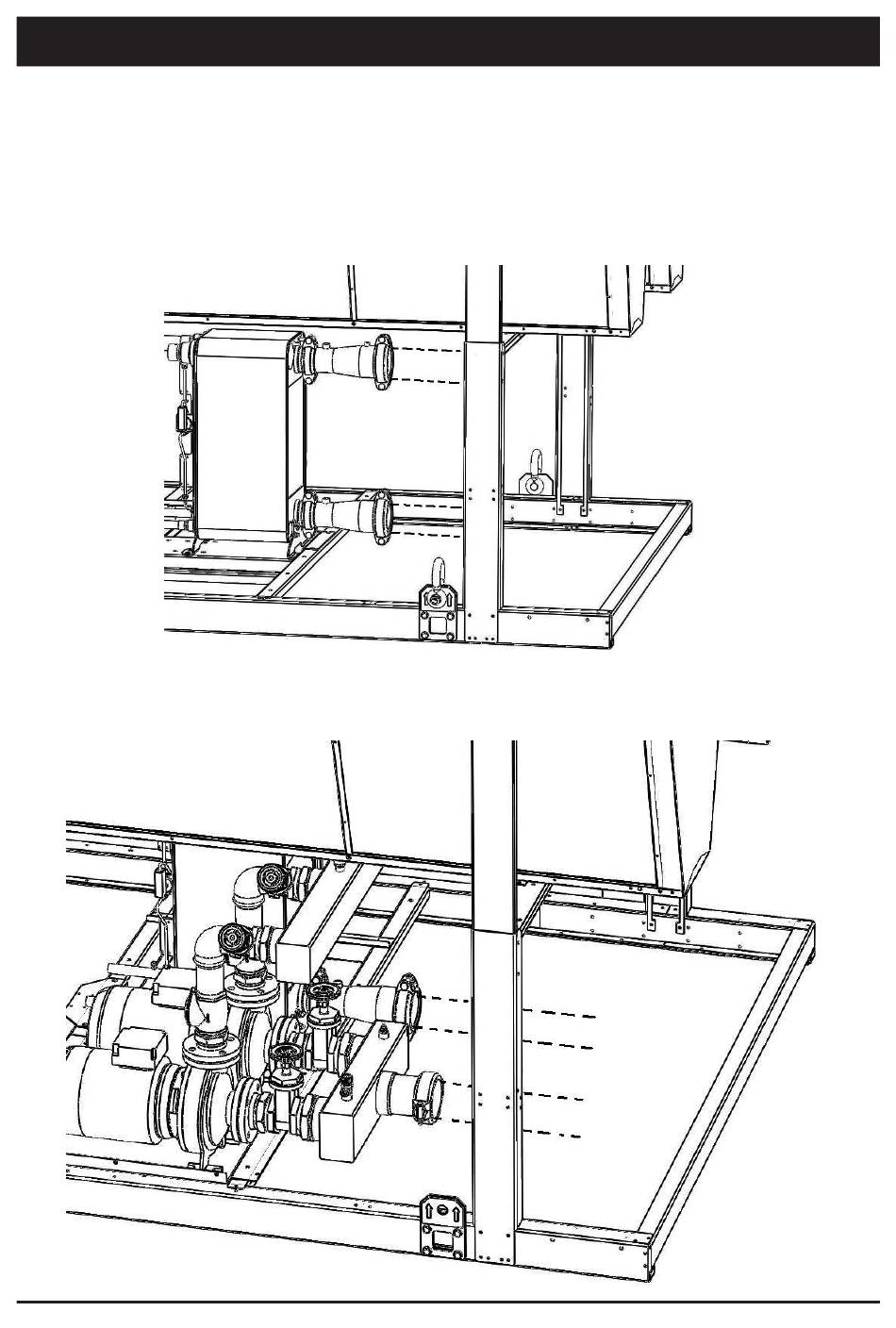

AQWL, AQWH and AQWR units are provided with fittings for hydraulic
connections between heat exchangers and plant.
Water connection units with pump(s)
4 - Installation (continued)
18
Each fittings is complete with sensor well to fasten temperature
sensor (BT-IN and BT-OUT). Fittings are supplied separate and must
be mounted during the installation of the unit.
