Construction and Function

2.1

Construction

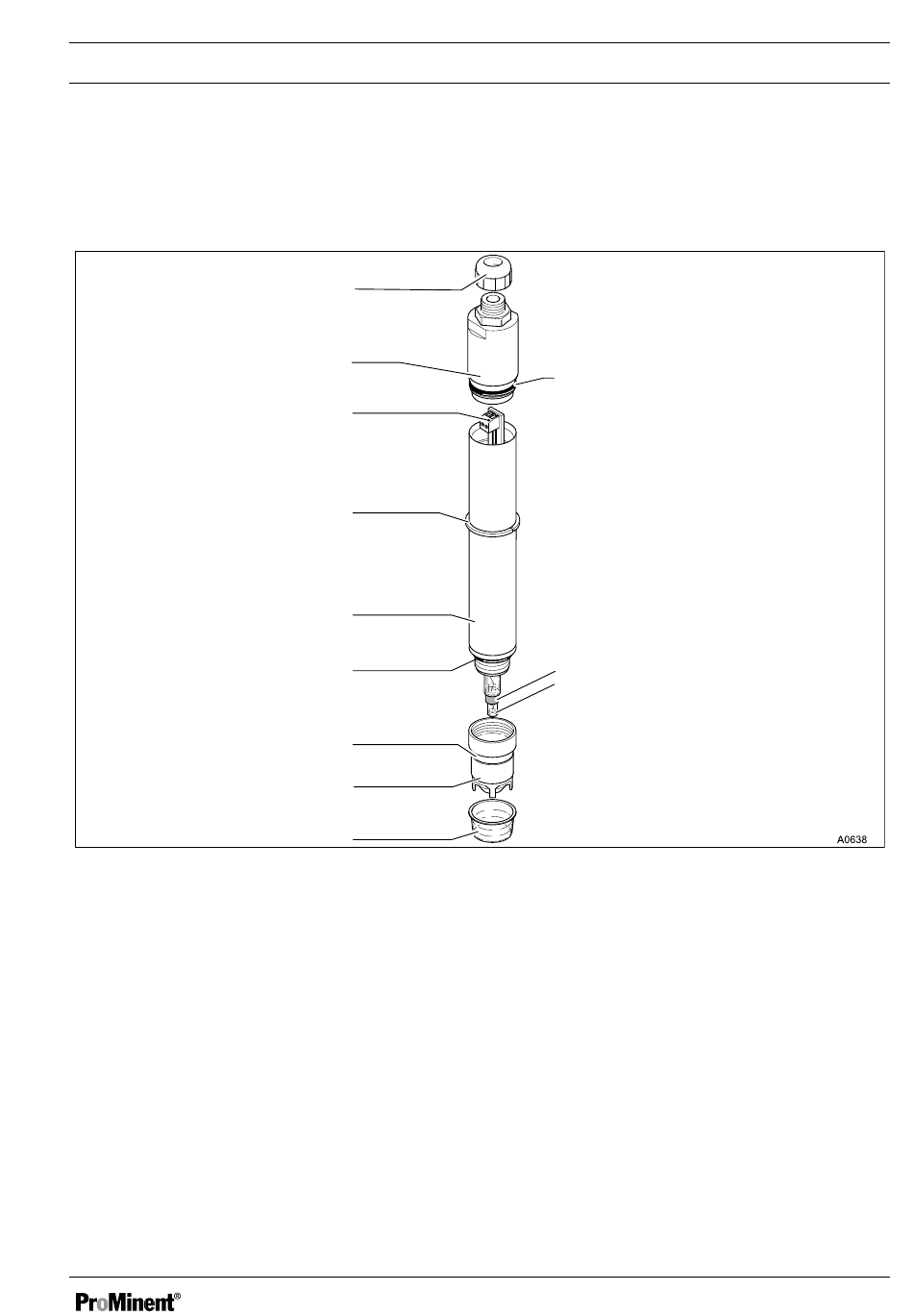

Fig. 2: Construction of the sensor
1. O-ring seal
2. Counter and reference electrode
3. Working electrode
4. Diaphragm protective cap
5. Diaphragm cap
6. Hose seal
7. O-ring seal
12.
11.
10.
9.
8.
7.
6.
5.
4.
Construction and Function
1.
2.
3.
8. Electrode shaft
9. Clamp disc
10. 2-wire-connector
11. Top part
12. Cable feed-through, M12 threaded con‐
nector
