Construction and Function

2.1

Construction

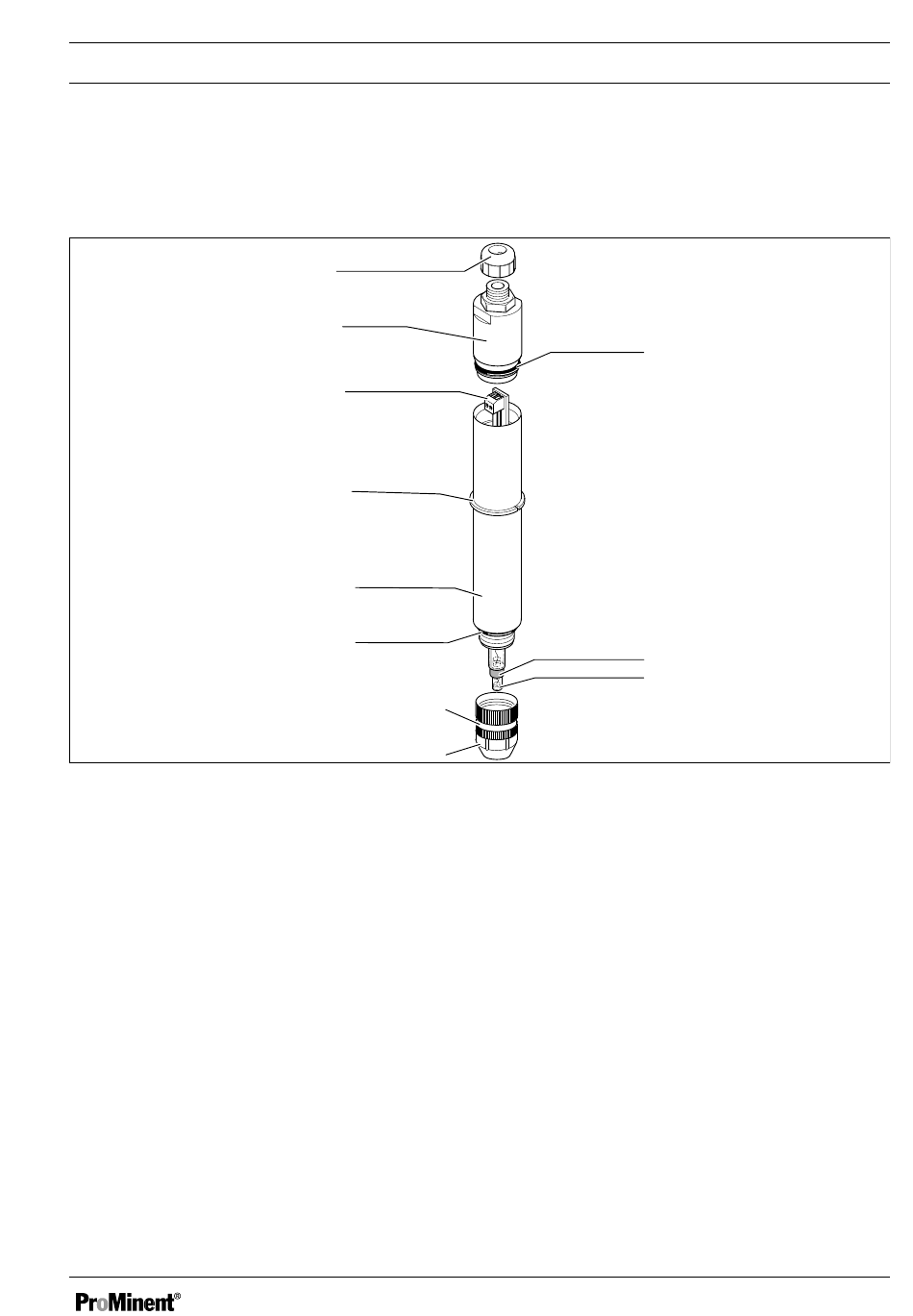

Fig. 1: Exploded view of the sensor
1 O-ring seal
2 Counter and reference electrodes
3 Working electrode
4 Diaphragm cap
5 Hose seal
6 O-ring seal
The DULCOTEST ® CDR 1 sensor for chlorine
dioxide (ClO ) is a diaphragm-covered two-
2
electrode sensor. The sensor consists of a dia‐
phragm cap and an electrode shaft. The elec‐
trolyte-filled diaphragm cap constitutes the
measuring chamber. A non-porous diaphragm
located in the diaphragm cap allows the
chlorine dioxide soluble in the water to per‐
meate through. The electrodes on the electrode
shaft are immersed in the measuring chamber.
11
10
9
8
7
6
5
4
Construction and Function
1
2
3
7 Electrode shaft
8 Clamp disc
9 2-wire connector
10 Top part
11 Cable feed-through, M12 threaded con‐
nector
Amplifier electronics are located above the
electrodes in the electrode shaft. The electrical
connector is positioned above this. The temper‐
ature sensor for temperature compensation is
integrated in the lower part of the electrode
shaft.
