Installation
Electrical Installation
Turn the top part (1) of the sensor a quarter turn anticlockwise and remove the top part.
1.
Loosen the clamping nut (2) from the M12 threaded connector and feed the measuring line
2.
(3) through the clamping nut.

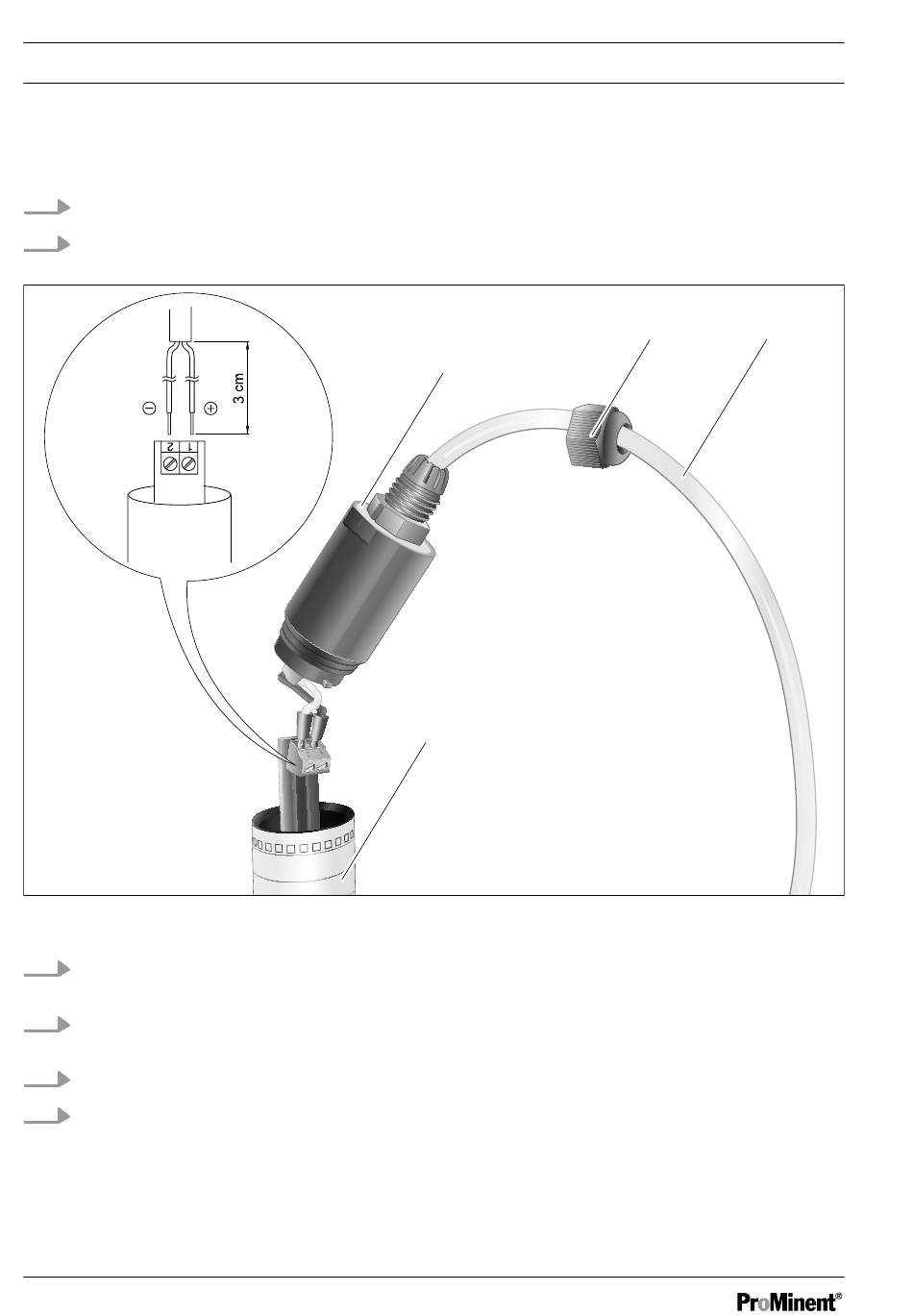

Fig. 6: 2-wire connector
Strip the cable ends by approx. 0.5 cm, fit the cable ends with cable end sleeves
3.
(⌀ max = 0.5 mm
Push the top part of the sensor fully onto the sensor shaft (4) and tighten the top part of the
4.
sensor clockwise as far as the stop.
Push the measuring line as far as possible into the top part of the sensor to relieve tension.
5.
Tighten the clamping nut (2) on the M12 threaded connector.
6.
22
) and connect the cable ends to the 2-wire connector: 1 = plus, 2 = minus.
2
1
4
2
3
A2419
