Construction and Function

3.1

Construction

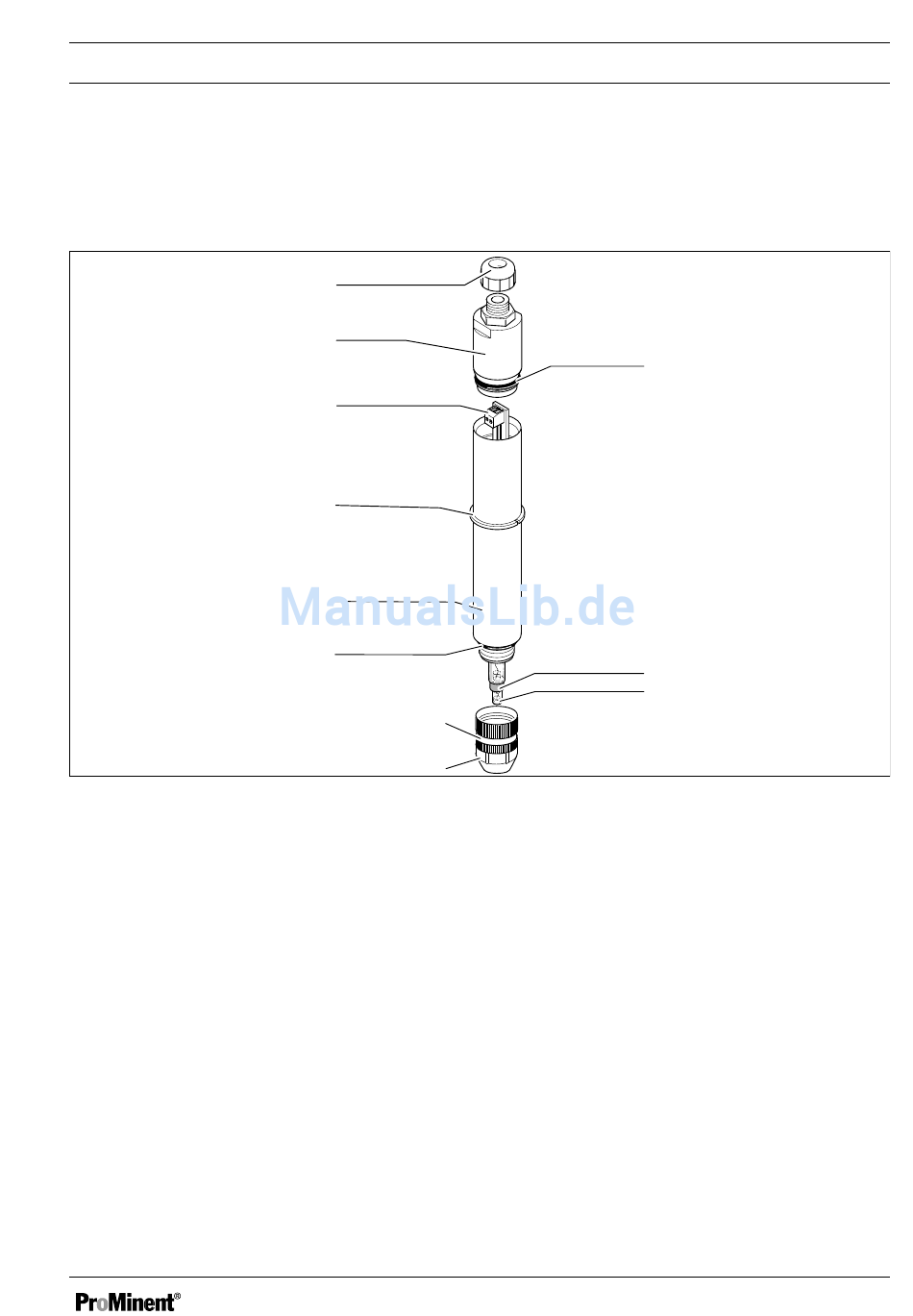

Fig. 3: Exploded view of the sensor
1 O-ring seal
2 Counter and reference electrodes
3 Working electrode
4 Diaphragm cap
5 Hose seal
6 O-ring seal
The DULCOTEST CDE sensor for chlorine
®
dioxide (ClO ) is a diaphragm-covered two-
2
electrode sensor. The sensor consists of the
diaphragm cap and sensor shaft. The electro‐
lyte-filled diaphragm cap constitutes the meas‐
uring chamber. A non-porous diaphragm
located in the diaphragm cap allows the
chlorine dioxide soluble in the water to per‐
meate through. The electrodes on the sensor
11
10
9
8
7
6
5
4
Construction and Function
1
2
3
7 Sensor shaft
8 Clamp disc
9 2-wire connector
10 Top part
11 Clamping nut, M12 threaded connector
shaft are immersed in the measuring chamber.
Amplifier electronics are located above the
electrodes in the sensor shaft. The electrical
connector is positioned above this. The temper‐
ature sensor for temperature compensation is
integrated in the lower part of the sensor shaft.
