Assembly

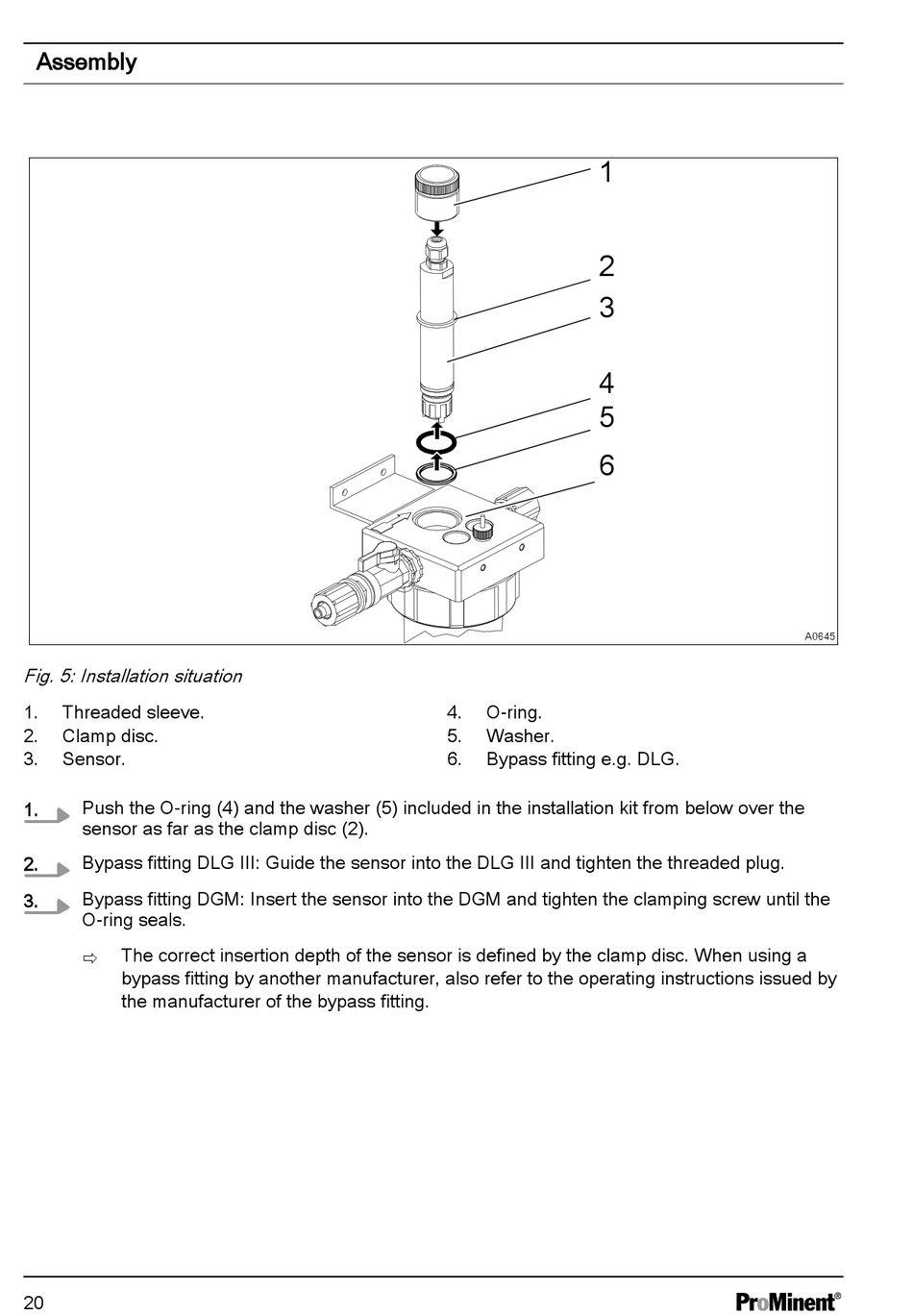

Fig. 5: Installation situation
1. Threaded sleeve.
2. Clamp disc.
3. Sensor.
Push the O-ring (4) and the washer (5) included in the installation kit from below over the
1.
sensor as far as the clamp disc (2).
Bypass fitting DLG III: Guide the sensor into the DLG III and tighten the threaded plug.
2.
Bypass fitting DGM: Insert the sensor into the DGM and tighten the clamping screw until the
3.
O-ring seals.
The correct insertion depth of the sensor is defined by the clamp disc. When using a
ð
bypass fitting by another manufacturer, also refer to the operating instructions issued by
the manufacturer of the bypass fitting.
20
1
2
3
4
5
6
4. O-ring.
5. Washer.
6. Bypass fitting e.g. DLG.
A0645
