ADJUSTING THE BRAKES

Front brake
The front brake is a hydraulically oper-
ated disc brake, and therefore requires
no adjustment.
Rear brake
The rear brake is a hydraulically operated
disc brake.

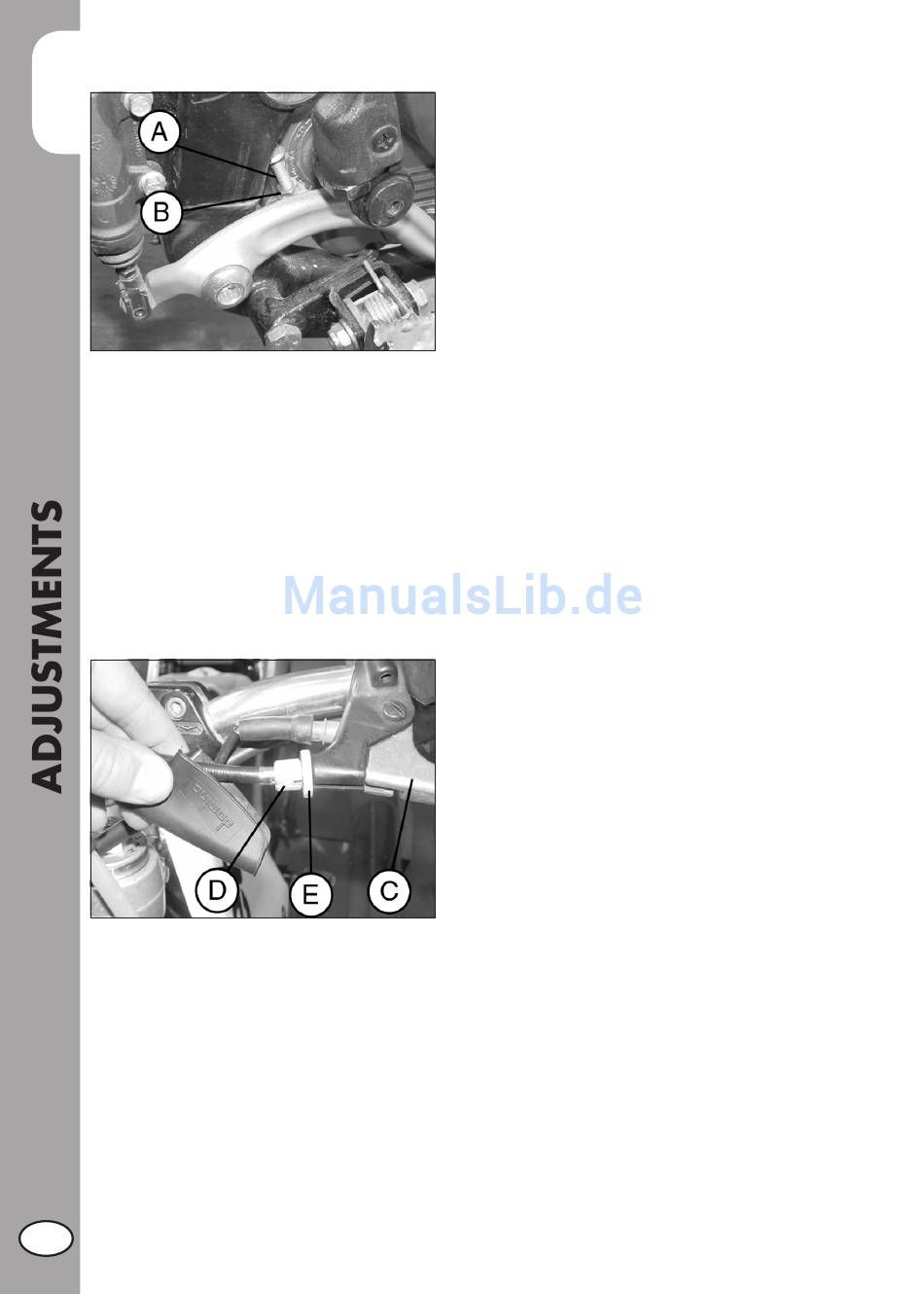

The brake pedal can be adjusted for height
by means of adjusters A and B.
The brake lever play should never be less
than 5 mm.

ADJUSTING THE CLUTCH

The only operation that may be required
is the adjustment of the position of clutch
lever C.
The adjustment is obtained by means of
adjuster D.
After adjusting the lever with the adjusting
screw, be sure to tighten stop E so as to
lock the screw in the desired position.
Note:
The play of the clutch should range from
1 to 2 mm.
