REMOVING THE PLASTICS

To facilitate checks and operations in
certain areas of the vehicle, it is essential
to remove the bodywork sections as de-
scribed below.

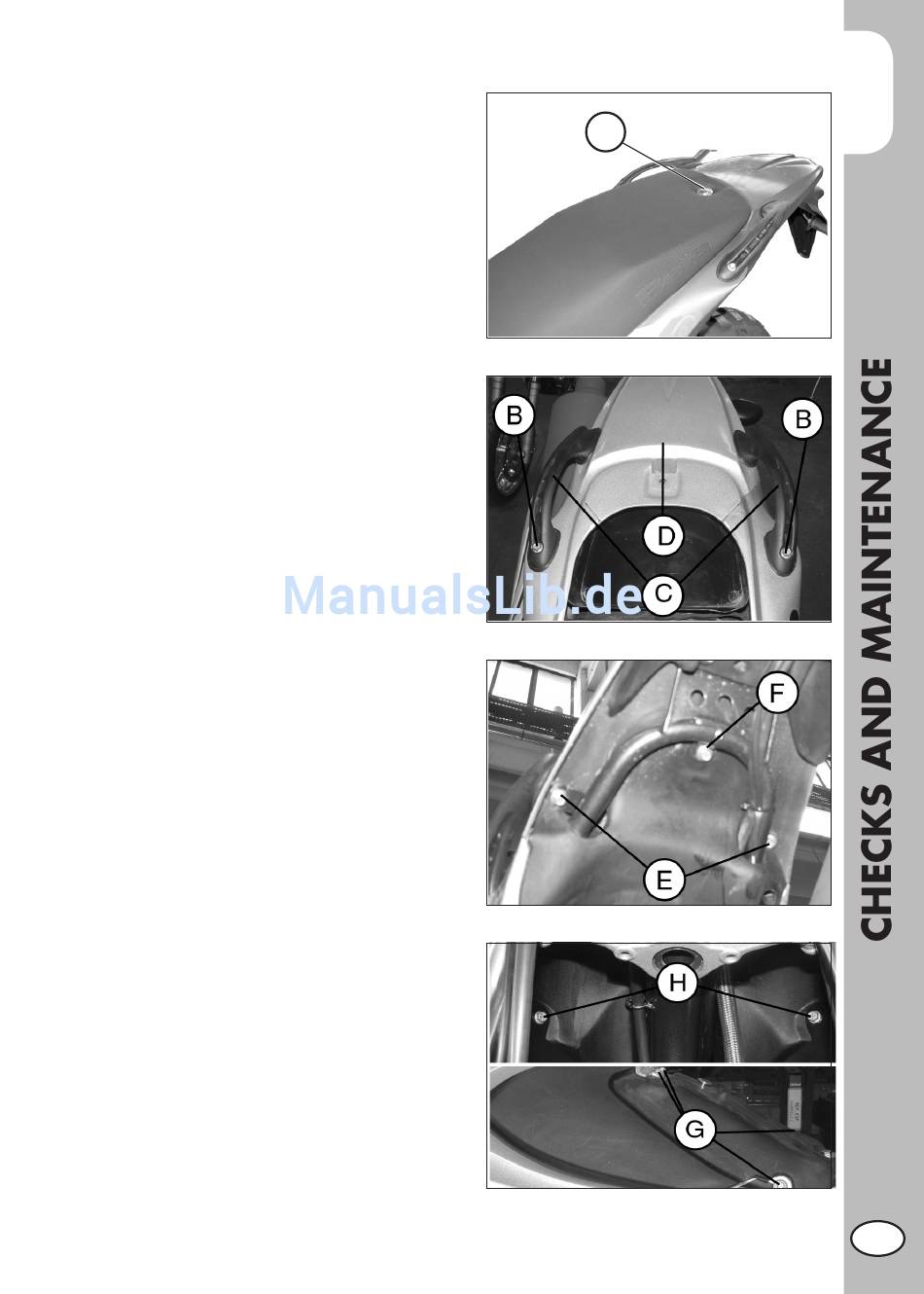

Saddle removal
•Turn the fixing A by 90° anticlockwise,
take out the saddle by pulling it to the
back of the vehicle. To fit it back in, just
put the saddle back in its place, push the
fixing A down (without turning it) until it
clicks. Now the saddle is in place.
Disassembling rear handles
• Unscrew the two clamping screws B
then remove the other clamping screw E,
positioned under the rear mudguard and
thus remove the handles C, taking care
not to mislay the rubber shims.
Disassembling rear tail
• Remove the clamping screw F and remo-
ve the tail D.
Disassembling front sides
• Unscrew the four clamping screws G
(two on each side) and remove the two
screws H.
• Remove the front sides, being careful to
remove the left side first and then the right
side.
