When mounting the transmitter, respect the following instructions:
Version with a PVDF sensor:
- connect the earth wire to the terminal N°4 of the terminal strip 3
- connect the flat cable to the connector 1
- connect the coax cables to the connectors 2 by respecting the connecting
order
- replace all the seals
- orient the lug properly (see 3.1.1)
- fasten the sensor fastening screw
Version with a stainless steel sensor:

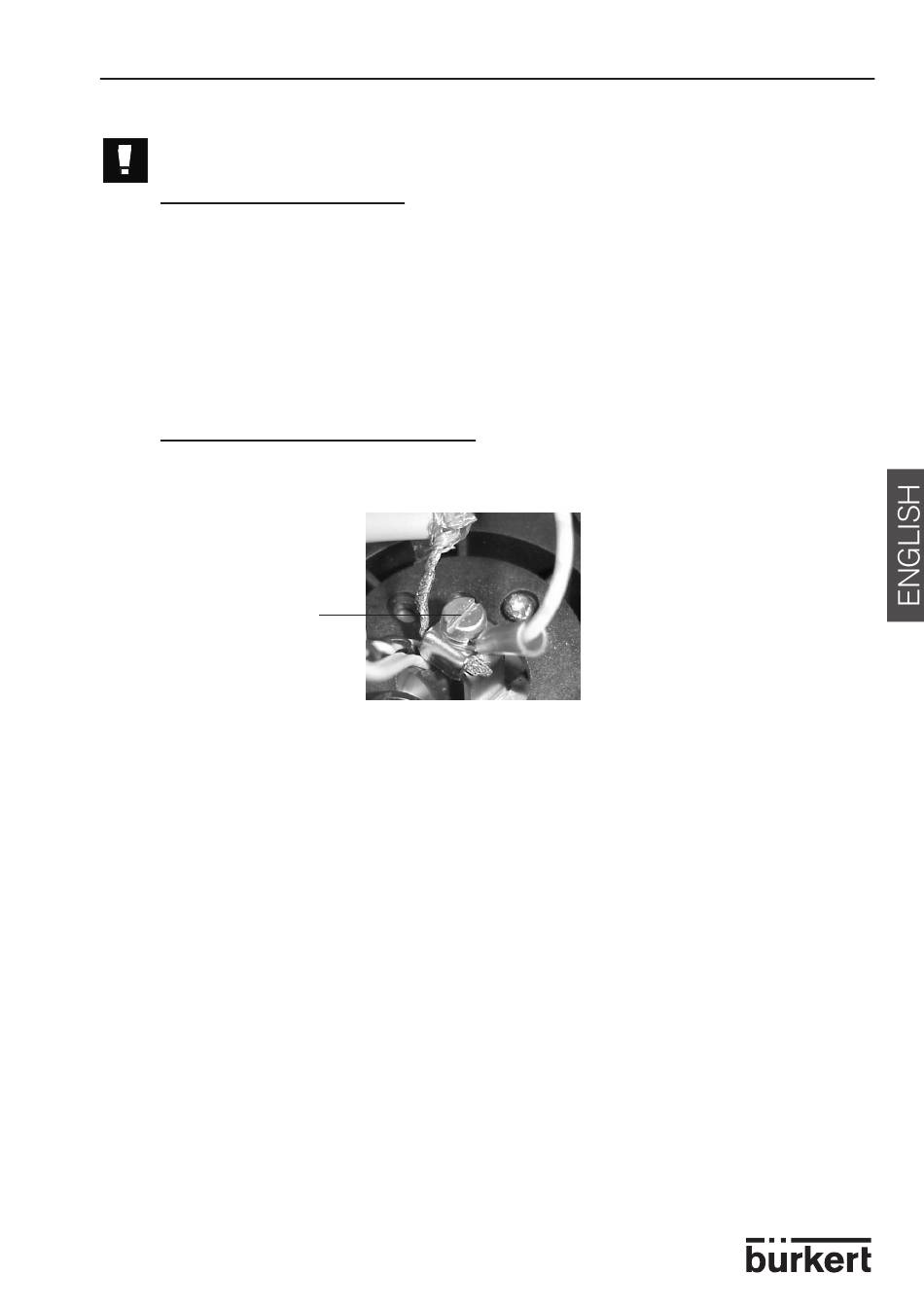

- unscrew the earth connection jumper screw of the new sensor
Earth connection
jumper screw
- remove the earth lug and the earth cable from the new sensor
- insert the new sensor into the housing
- connect the earth wire to the terminal N°4 of the terminal strip 3
- connect the flat cable to the connector 1
- connect the coax cables to the connectors 2 by respecting the connecting
order
- replace all the seals
- orient the sensor so that the alignment of the electrodes is perpendicular to
the arrow on the side of the housing (see 3.2)
- fasten the sensor fastening screw
- replace the earth lug of the earth cable inside the housing and the jumper
onto the sensor and fasten using screw+washer
- refer to p.11 for proper process earthing.
