14

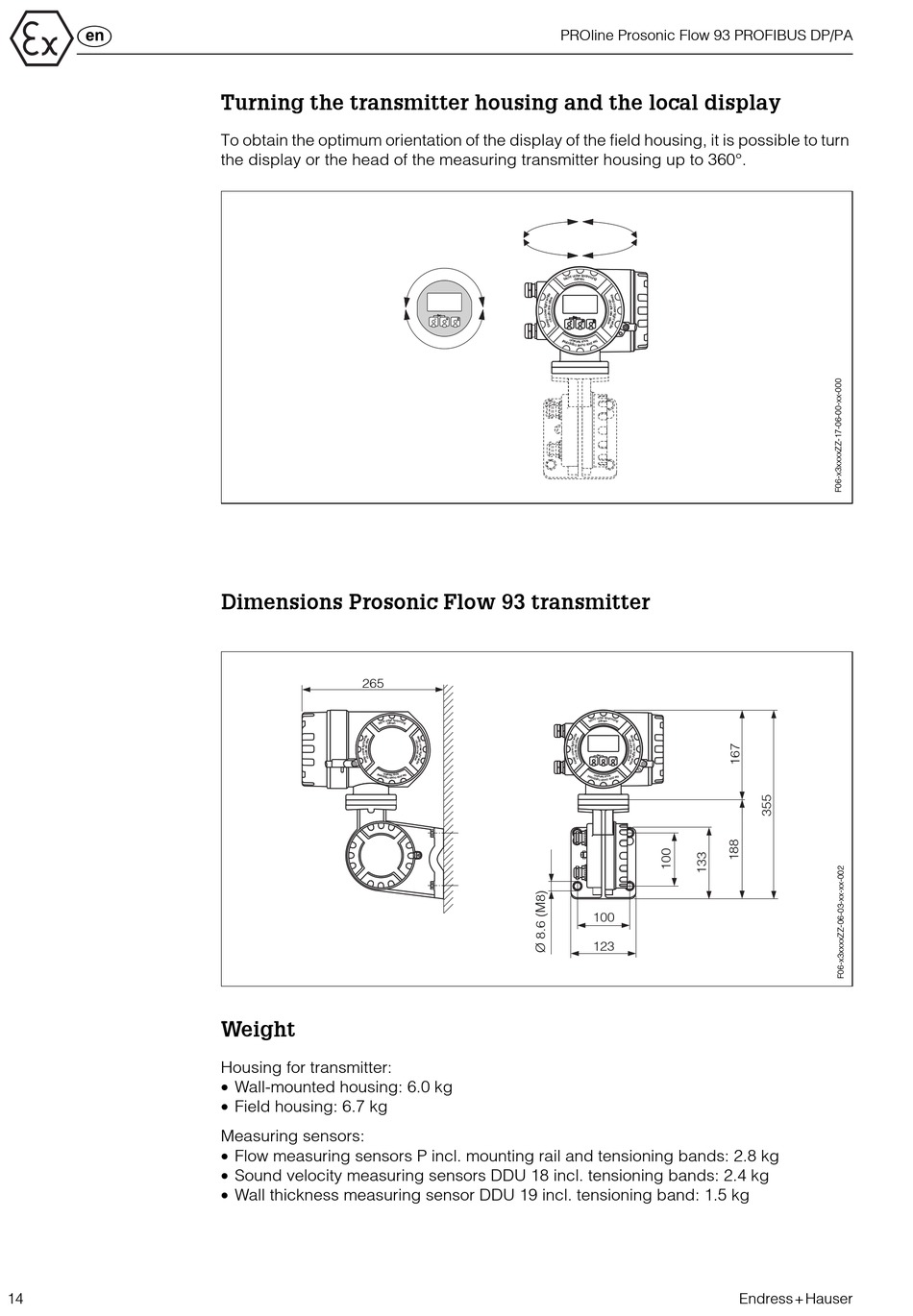

Turning the transmitter housing and the local display
To obtain the optimum orientation of the display of the field housing, it is possible to turn
the display or the head of the measuring transmitter housing up to 360°.
Dimensions Prosonic Flow 93 transmitter
265
r
Weight
Housing for transmitter:
• Wall-mounted housing: 6.0 kg
• Field housing: 6.7 kg
Measuring sensors:
• Flow measuring sensors P incl. mounting rail and tensioning bands: 2.8 kg
• Sound velocity measuring sensors DDU 18 incl. tensioning bands: 2.4 kg
• Wall thickness measuring sensor DDU 19 incl. tensioning band: 1.5 kg
PROline Prosonic Flow 93 PROFIBUS DP/PA
r
Esc
- Esc
+ E
- + E
r
Esc
- +
100
123
E
