PROline Prosonic Flow 93 PROFIBUS DP/PA
Endress+Hauser

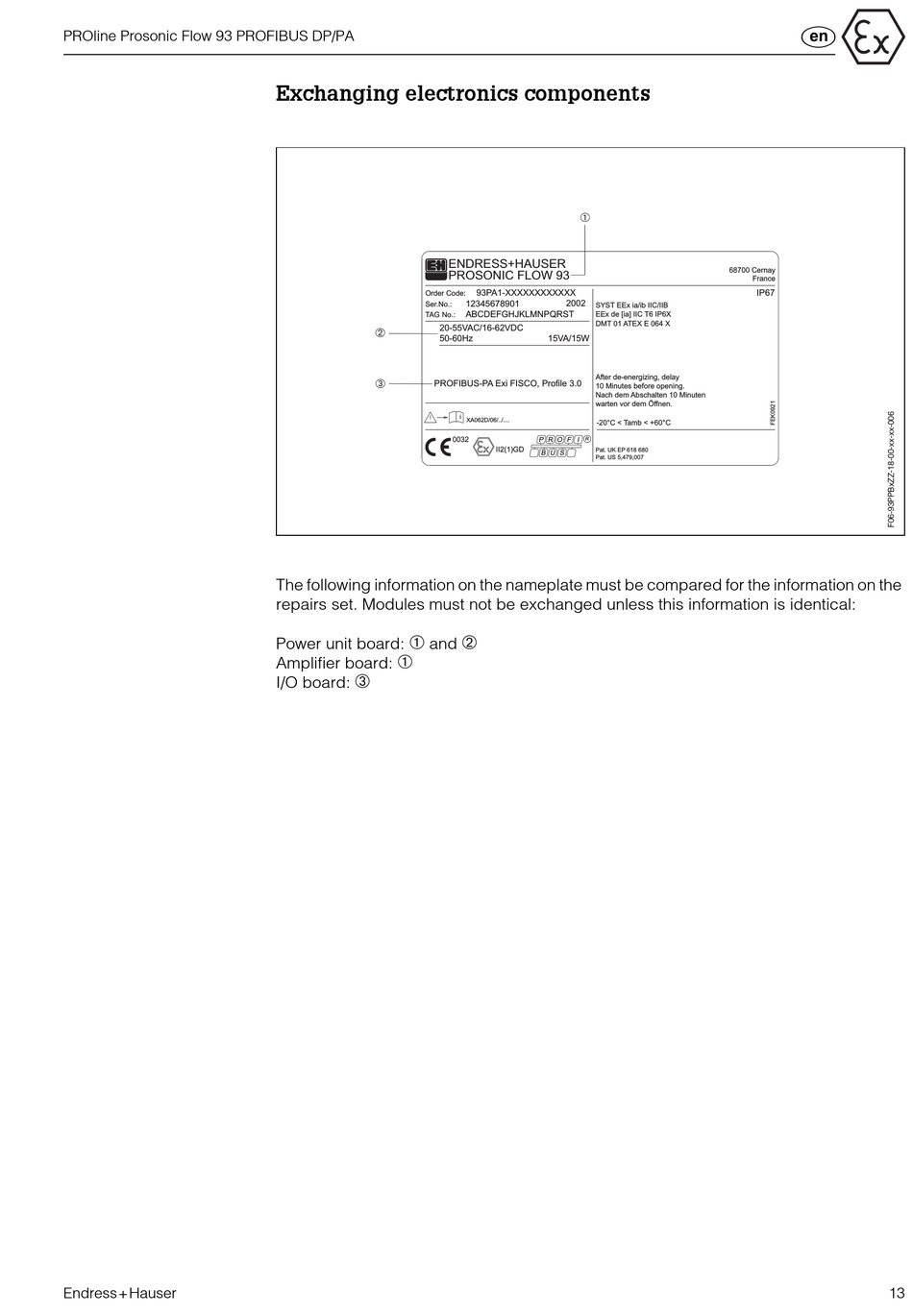

Exchanging electronics components
ENDRESS+HAUSER
PROSONIC FLOW 93
Order Code:
Ser.No.:
TAG No.:
➁ 20-55VAC/16-62VDC
50-60Hz
➂
PROFIBUS-PA Exi FISCO, Profile 3.0
The following information on the nameplate must be compared for the information on the
repairs set. Modules must not be exchanged unless this information is identical:
➀
Power unit board: and
➀
Amplifier board:
➂
I/O board:
➀
93PA1-XXXXXXXXXXXX
12345678901 2002
SYST EEx ia/ib IIC/IIB
ABCDEFGHJKLMNPQRST EEx de [ia] IIC T6 IP6X
DMT 01 ATEX E 064 X
15VA/15W
After de-energizing, delay
10 Minutes before opening.
Nach dem Abschalten 10 Minuten
warten vor dem Öffnen.
i
XA062D/06/../....
-20°C < Tamb < +60°C
0032 P R O F I R
II2(1)GD
Pat. UK EP 618 680
B U S
Pat. US 5,479,007
➁
<
68700 Cernay
France
IP67
13
