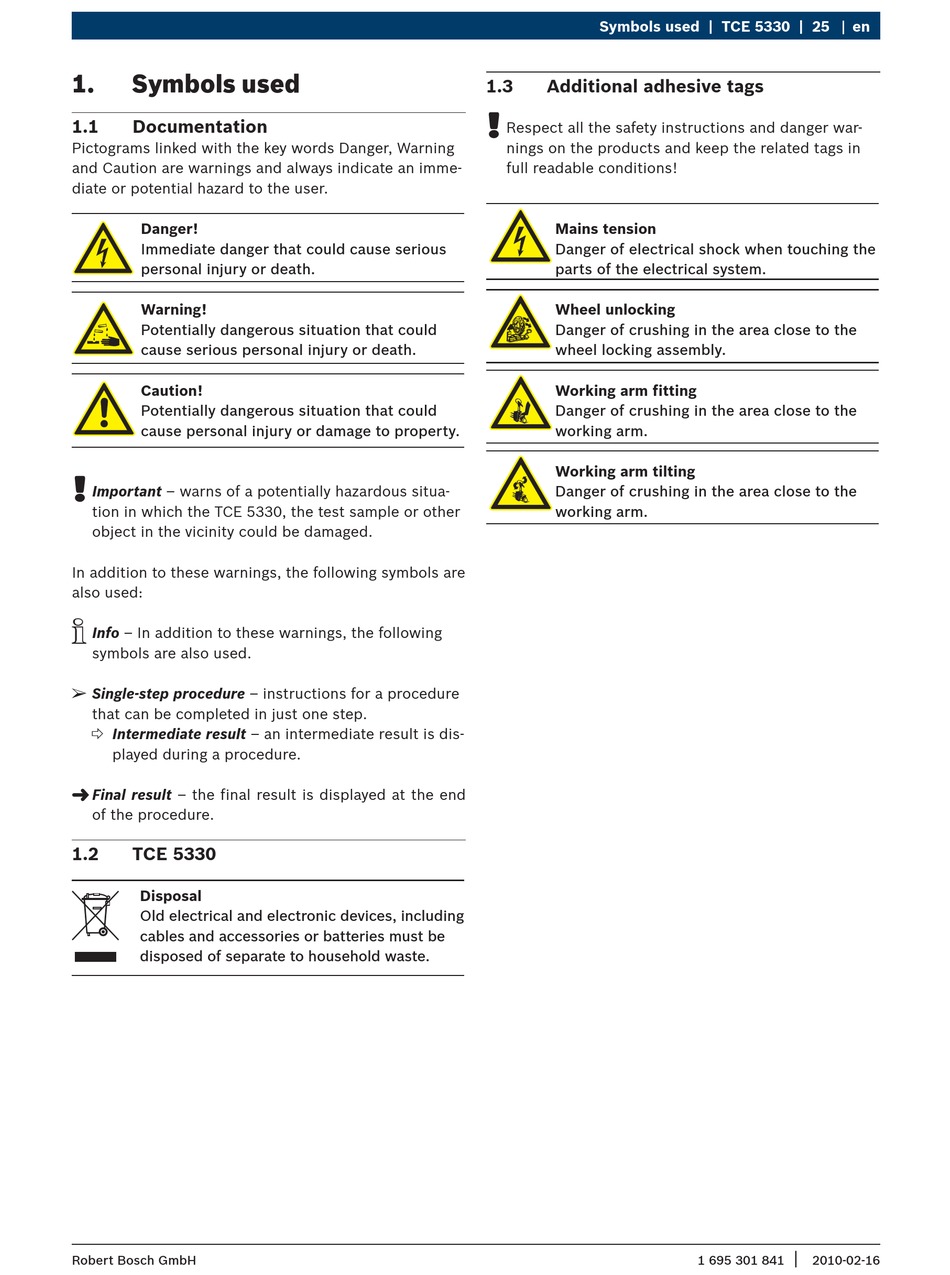

1.

Symbols used

1.1

Documentation

Pictograms linked with the key words Danger, Warning
and Caution are warnings and always indicate an imme-
diate or potential hazard to the user.
Danger!
Immediate danger that could cause serious
personal injury or death.
Warning!
Potentially dangerous situation that could
cause serious personal injury or death.
Caution!
Potentially dangerous situation that could
cause personal injury or damage to property.
!
Important – warns of a potentially hazardous situa-
tion in which the TCE 5330, the test sample or other
object in the vicinity could be damaged.
In addition to these warnings, the following symbols are
also used:
i
Info – In addition to these warnings, the following
symbols are also used.
€
Single-step procedure – instructions for a procedure
that can be completed in just one step.
« Intermediate result – an intermediate result is dis-
played during a procedure.
"
Final result – the final result is displayed at the end
of the procedure.
1.2

TCE 5330

Disposal
Old electrical and electronic devices, including
cables and accessories or batteries must be
disposed of separate to household waste.
Robert Bosch GmbH
Symbols used | TCE 5330 | 25
1.3

Additional adhesive tags

!
Respect all the safety instructions and danger war-
nings on the products and keep the related tags in
full readable conditions!
Mains tension
Danger of electrical shock when touching the
parts of the electrical system.
Wheel unlocking
Danger of crushing in the area close to the
wheel locking assembly.
Working arm fitting
Danger of crushing in the area close to the
working arm.
Working arm tilting
Danger of crushing in the area close to the
working arm.
en
|
1 695 301 841 2010-02-16
