SMA INVERTER MANAGER Installationsanleitung Seite 6

3 Inverter Manager
3.3 Connection to the
Inverter Manager
3.3.1 Safety Information
Danger to life due to electric shock
Lethal voltages are present at the connection point of the
utility grid.
• Disconnect the connection point from voltage sources
and ensure that the connection point is voltage-free.
3.3.2 Circuitry Overview of
Sunny Tripower 60 /
Sunny Highpower 75

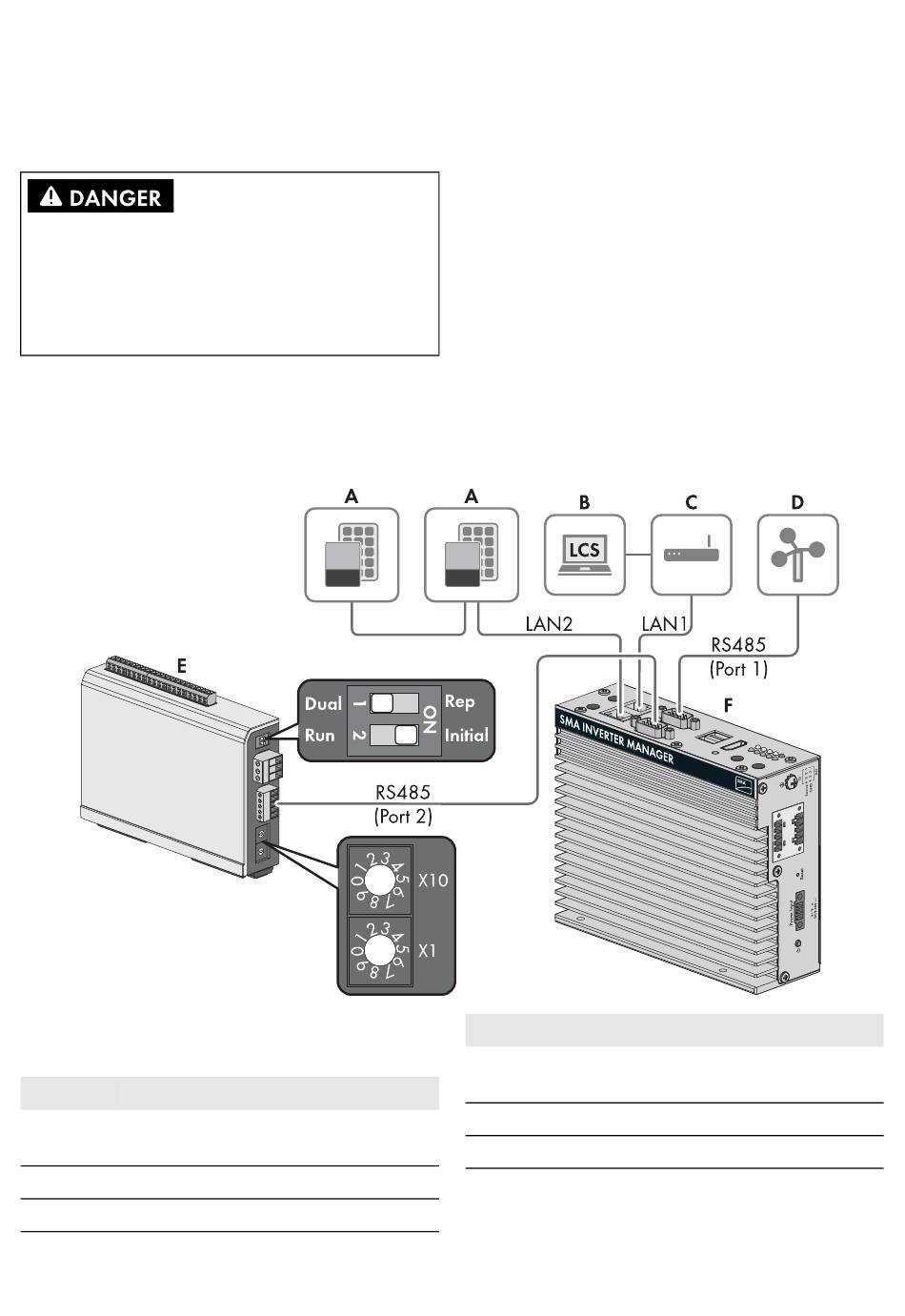

Figure 2: Circuitry Overview of Sunny Tripower 60 /
Sunny Highpower 75
Item Designation
A Sunny Tripower 60 /
Sunny Highpower 75
B PC with LCS-Tool
C Router
6 IMVIOBOX-IA-xx-16
Item Designation
D SunSpec Alliance compatible weather
station (optional)
E I/O Box (optional)
F Inverter Manager
SMA Solar Technology AG
Installation Manual
