Kärcher HKF 200 Originalbetriebsanleitung Seite 28

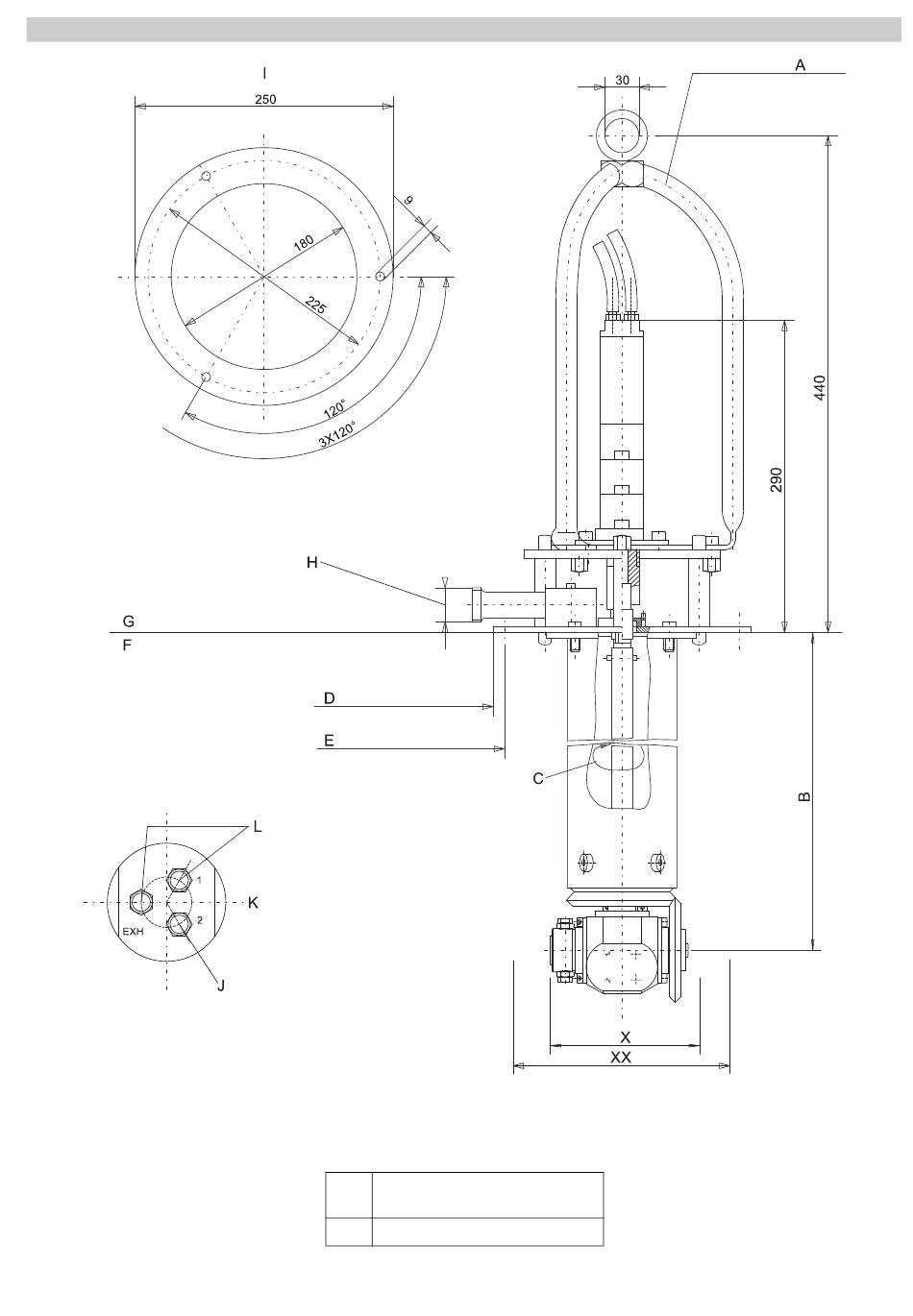

A Hanging bow (order no. 4.034-016)
B Standard length 500 mm
C Prescribed rotation direction
D Flange diameter 250 mm
E Hole circle diameter 225 mm
F Zone 0/20, category 1
G Zone 1, category 2 or 3
H Pressure connection M22x1.5
I Hole layout of the mounting flange
28
English
Measuring sheet HKF 200 PT
J Air inlet support (1 hose DN 6)
K Air demand 300 l/min at 5 bar
L Air outlet support (2 hose DN 6)
X Minimum insertion diameter 140
mm
XX Rotation diameter 142 mm
