A Zone 1
B High-pressure cleaning head
C Swivelling device
D Zone 0/20
E Electricity conducting hose
F Circuit container with filter unit (sieve,
suction basket, fine filter)
G Circuit medium

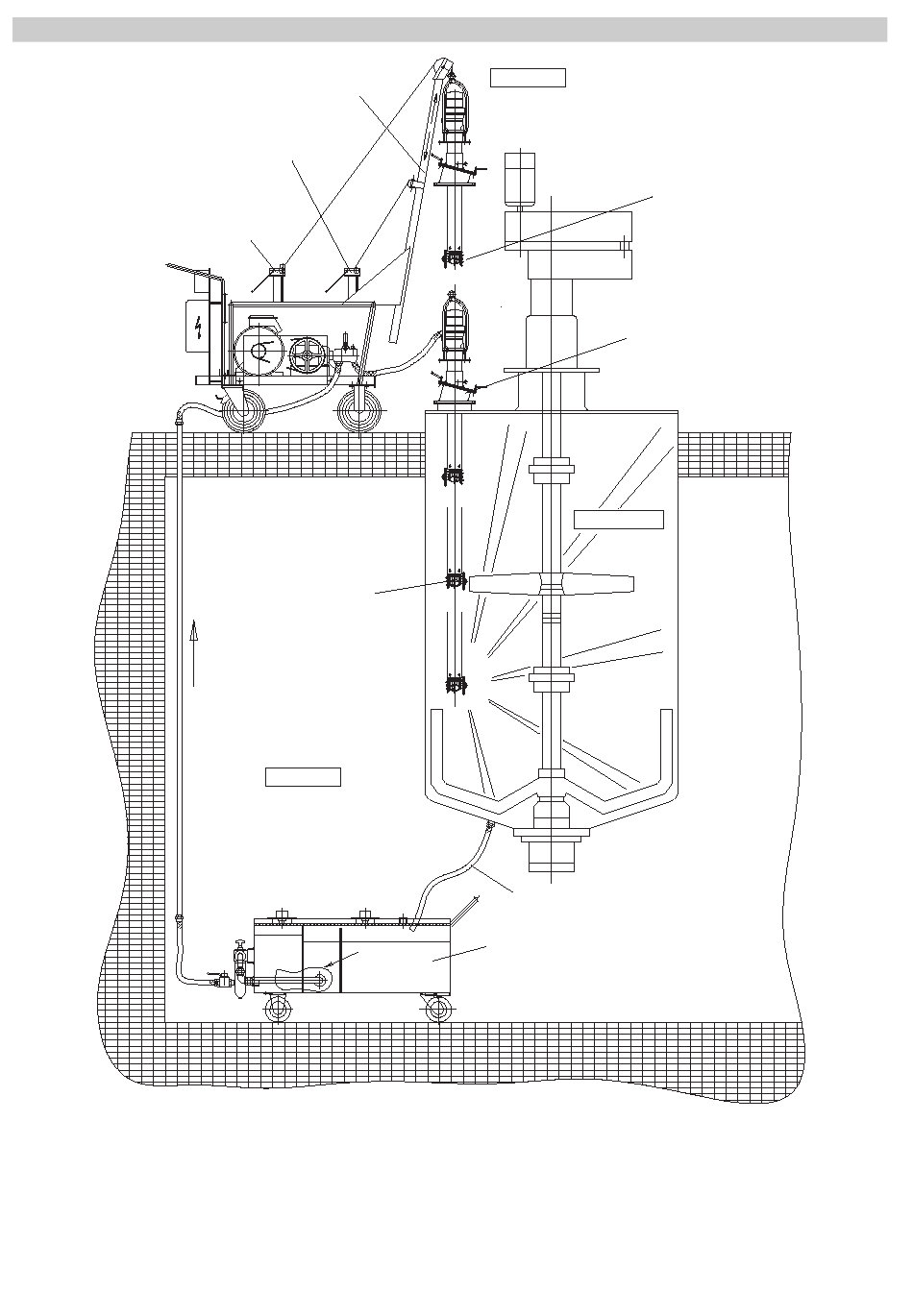

Basic sketch - zone layout
L
K
J
I
A
H
G
H Clear medium
I Rotating cleaning head
J Hoist to lift and lower the cleaning head
K Hoist for telescoping boom
L Telescoping boom
A
B
C
D
E
F
